Displacement

Model

Year

Finish line

Parts catalogue

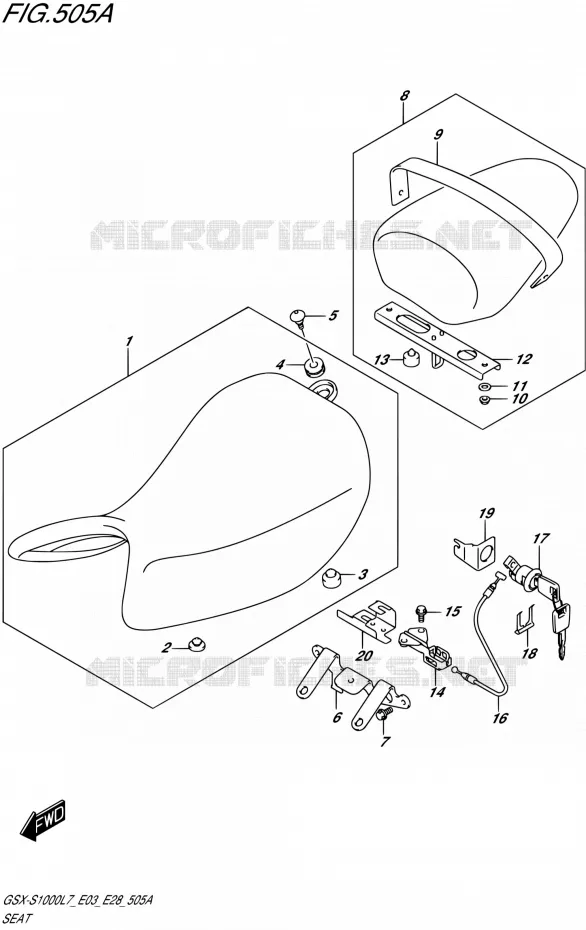

Parts diagram

LABEL (GSX-S1000AL7 E33)

SEAT FOR SUZUKI GSX-S 1000 2017

HEADLIGHT BOWL

Item numbers
SEAT Suzuki MOTO 1000 GSX-S 2017 GSX-S1000 L7 (E33)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
SEATASSY

45100-04K00-DW2  

45100-04K01-DW2
 4510004K00DW2

Unit Price

2
.CUSHION
.CUSHION

09329-10001-000   0932910001000

0932910001000

Unit Price

3
.CUSHION
.CUSHION

09321-10011-000   0932110011000

0932110011000

Unit Price

4
CUSHION, SEAT MOUNT
.CUSHION

45148-04K00-000   4514804K00000

4514804K00000

Unit Price

5
SCREW, SEAT
SCREW (6X20)

09139-06193-000   0913906193000

0913906193000

Unit Price

6
BRACKET, SEAT

45120-04K00-000   4512004K00000

4512004K00000

Unit Price

7
BOLT

01550-0612A-000   015500612A000

015500612A000

Unit Price

8
SEAT ASSY, PILLION

45300-04K00-DW2  

45300-04K02-DW2
 4530004K00DW2

Unit Price

9
BAND COMP, PILLION SEAT GRIP

45380-04K00-P3H  

45380-04K01-P3H
 4538004K00P3H

Unit Price

10
.NUT

08316-1006A-000   083161006A000

083161006A000

Unit Price

11
WASHER,6.5X16X1.0<br />.WASHER (6.5X16X1)
WASHER, 6.5X16X1.0
.WASHER (6.5X16X1)

09160-06129-000   0916006129000

0916006129000

Unit Price

12
45291-04K01
.PLATE, SEAT LOCK

45291-04K00-000   4529104K00000

4529104K00000
Not available
13
CUSHION, SEAT MOUNT RR
.CUSHION

45148-20G00-000   4514820G00000

4514820G00000

Unit Price

14
BRACKET, STRIKER SUPPORT
BRACKET, SEAT SUPPORT

45220-04K00-000   4522004K00000

4522004K00000

Unit Price

15
BOLT

01550-0612A-000   015500612A000

015500612A000

Unit Price

16
CABLE, SEAT LOCK

45280-04K00-000   4528004K00000

4528004K00000

Unit Price

17
LOCK SET, SEAT

95700-14F00-000   9570014F00000

9570014F00000
Not available
18
PLATE, SEAT LOCK ASSY
PLATE, SEAT LOCK ASSY

45289-11F00-000   4528911F00000

4528911F00000

Unit Price

19
GUIDE, SEAT LOCK CABLE
GUIDE, SEAT LOCK CABLE

45288-14F00-000   4528814F00000

4528814F00000

Unit Price

20
GUARD, SEAT LOCK

45289-04K01-000   4528904K01000

4528904K01000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SEAT of your Suzuki GSX-S 1000 of GSX-S. Let us know if you have any questions.
