Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

STAND

HANDLEBAR FOR SUZUKI GSX-S 1000 2017

HANDGRIPS - LEVERS

Item numbers

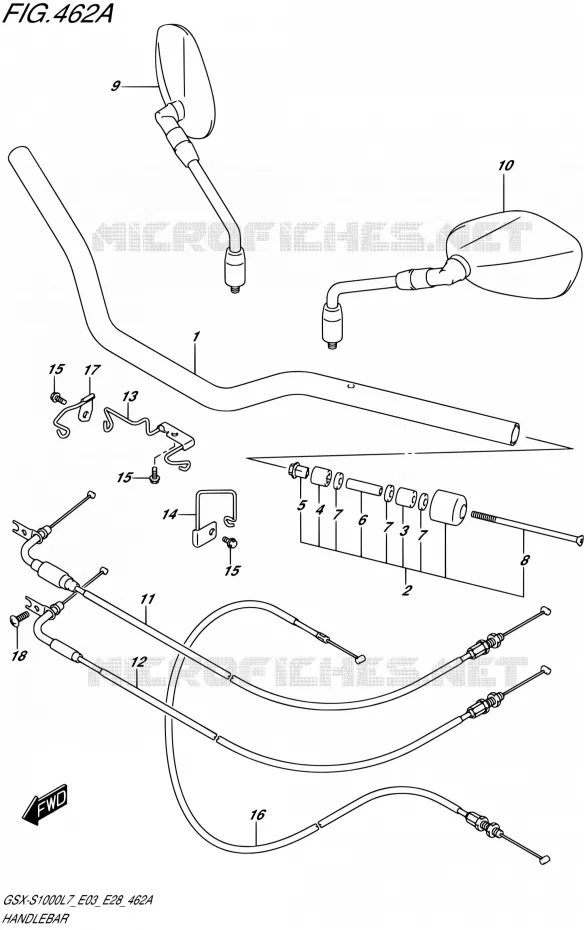

HANDLEBAR Suzuki MOTO 1000 GSX-S 2017 GSX-S1000 L7 (E33)
1
2
3
4
5
6
7
7
7
8
9
10
11
12
13
14
15
15
15
16
17
18
1
HANDLEBAR

56111-04K01-000  

56111-04K10-000
 5611104K01000

Unit Price

2
BALANCER SET, HANDLEBAR

56200-03860-000  

56200-03861-000
 5620003860000

Unit Price

3
EXPANDER, HANDLE BALANCER

56272-10G00-000  

56272-10G01-000
 5627210G00000

Unit Price

4
EXPANDER,HANDLE BALANCER<br />.EXPANDER, HANDLE BALANCWR
EXPANDER, HANDLE BALANCER
.EXPANDER, HANDLE BALANCWR

56272-42F00-000   5627242F00000

5627242F00000

Unit Price

5
.NUT, HANDLE BALANCER

56273-10G10-000   5627310G10000

5627310G10000

Unit Price

6
.SPACER (6.5X9X34)

09180-06356-000   0918006356000

0918006356000

Unit Price

7
.WASHER (6.5X16X4)

09160-06131-000   0916006131000

0916006131000

Unit Price

8
.SCREW (6X110)
.SCREW (6X110)

09127-06018-000   0912706018000

0912706018000

Unit Price

9
MIRROR ASSY, REAR VIEW, R

56500-08J11-000  

56500-08J12-000
 5650008J11000

Unit Price

10
MIRROR ASSY, REAR VIEW, L

56600-08J11-000  

56600-08J12-000
 5660008J11000

Unit Price

11
CABLE ASSY, THROTTLE NO.1

58300-04K00-000  

58300-04K02-000
 5830004K00000

Unit Price

12
58300-04K12
CABLE ASSY, THROTTLE NO.2

58300-04K10-000  

5830004K10000
Not available
13
GUIDE, CABLE NO.1

58620-04K00-000   5862004K00000

5862004K00000

Unit Price

14
GUIDE, CABLE NO.2

58630-04K00-000   5863004K00000

5863004K00000

Unit Price

15
BOLT
BOLT

01547-0612B-000   015470612B000

015470612B000

Unit Price

16
CABLE ASSY, CLUTCH

58200-04K00-000  

58200-04K01-000
 5820004K00000

Unit Price

17
GUIDE, CLUTCH CABLE

58640-04K00-000   5864004K00000

5864004K00000

Unit Price

18
SCREW
SCREW

02142-0510B-000   021420510B000

021420510B000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the HANDLEBAR of your Suzuki GSX-S 1000 of GSX-S. Let us know if you have any questions.
