CARBURETOR FOR SUZUKI GSX 1000 1982

AIR FILTER

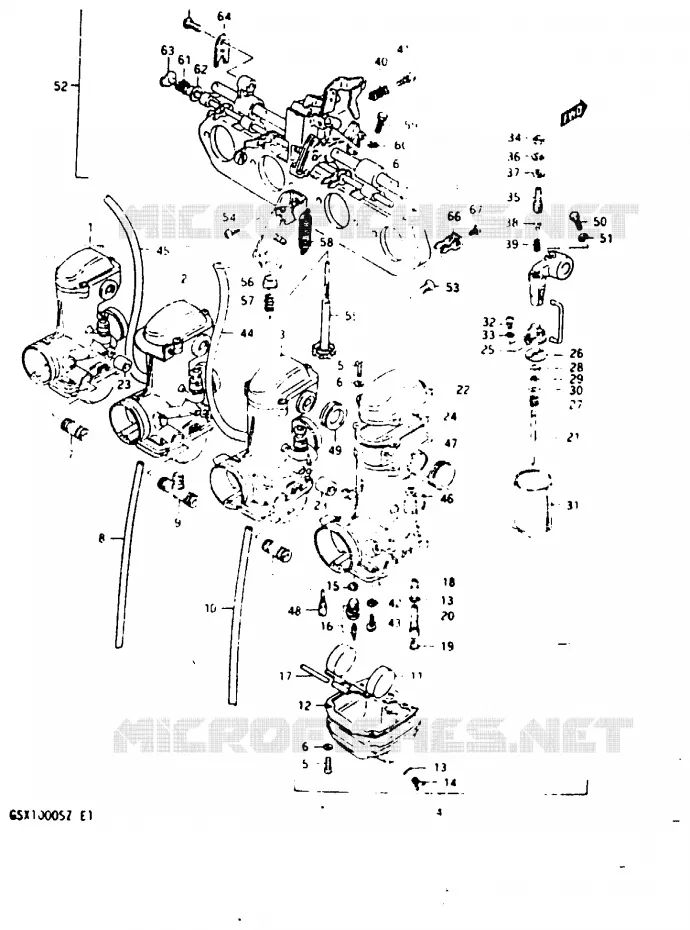

CARBURETOR Suzuki MOTO 1000 GSX 1982 GSX1000SZ
1
CARBURETOR, LH

13201-49310-000   1320149310000

1320149310000
Not available
2
CARBURETOR, ML

13202-49310-000   1320249310000

1320249310000
Not available
3
CARBURETOR, MR

13203-49310-000   1320349310000

1320349310000
Not available
4
CARBURETOR, RH

13204-49310-000   1320449310000

1320449310000
Not available
5
.SCREW

02112-04168-000   0211204168000

0211204168000
Not available
6
WASHER 4MM

08321-21048-000   0832121048000

0832121048000
Not available
7
NIPPLE

13685-49310-000   1368549310000

1368549310000
Not available
8
DISCONTINUED

13683-45010-000   1368345010000

1368345010000
Not available
9
NIPPLE

13685-49310-000   1368549310000

1368549310000
Not available
10
HOSE (L:450)

13883-32410-000   1388332410000

1388332410000
Not available
11
FLOAT

13252-49120-000   1325249120000

1325249120000
Not available
12
GASKET

13251-49120-000   1325149120000

1325149120000
Not available
13
O RING
O RING

13246-43010-000  

13246-43011-000
 1324643010000

Unit Price

14
DISCONTINUE<br />DRAIN SCREW
DISCONTINUE
DRAIN SCREW

13247-45010-000   1324745010000

1324745010000
Not available
15
.FILTER

13376-65010-000   1337665010000

1337665010000
Not available
16
NEEDLE VALVE

13370-49120-000   1337049120000

1337049120000
Not available
17
PIN, FLOAT
PIN, FLOAT

13254-01010-000   1325401010000

1325401010000

Unit Price

18
NEEDLE, JET (5DL82-3)

13383-49310-000   1338349310000

1338349310000
Not available
19
DISCONTINUED

09491-95003-000   0949195003000

0949195003000
Not available
20
HOLDER, JET

13385-49310-000   1338549310000

1338549310000
Not available
21
JET, NEEDLE (O-6)

09494-00198-000   0949400198000

0949400198000
Not available
22
COVER, TOP

13261-49310-000   1326149310000

1326149310000
Not available
23
DISCONTINUED

13683-47010-000   1368347010000

1368347010000
Not available
24

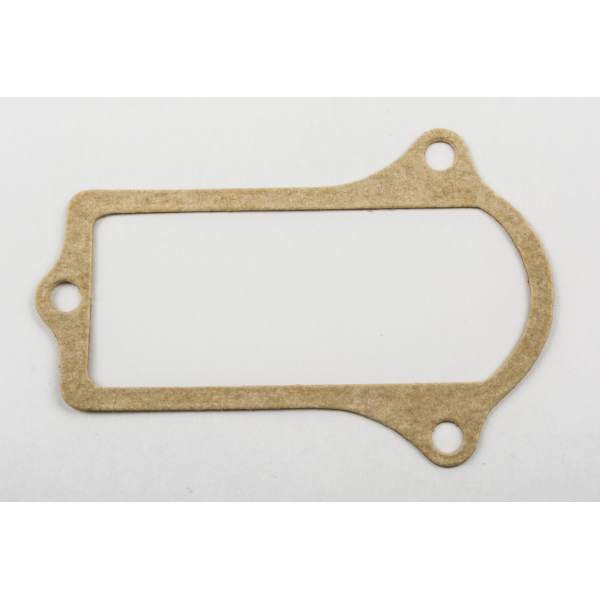

DISCONTINUE<br />GASKET
DISCONTINUE
GASKET

13266-43010-000   1326643010000

1326643010000
Not available
25
BRACKET

13398-45010-000   1339845010000

1339845010000
Not available
26
PLATE

13581-47010-000   1358147010000

1358147010000
Not available
27
SPRING

13388-49120-000   1338849120000

1338849120000
Not available
28
RING
RING

13387-47010-000   1338747010000

1338747010000

Unit Price

29
CLIP
CLIP

13394-10010-000   1339410010000

1339410010000

Unit Price

30
WASHER, JET NEEDLE
GASKET

13382-47010-000   1338247010000

1338247010000

Unit Price

31
THROTTLE VALVE

13551-49310-000   1355149310000

1355149310000
Not available
32
SCREW

02112-03168-000  

02112-0316B-000
 0211203168000

Unit Price

33
.LOCK WASHER

08321-21038-000   0832121038000

0832121038000
Not available
34
NUT

13607-49120-000   1360749120000

1360749120000
Not available
35
ADJUSTER

13548-49120-000   1354849120000

1354849120000
Not available
36
WASHER, LOCK

13614-45010-000  

08321-01053-000
 1361445010000

Unit Price

37
WASHER, STARTER SHAFT
WASHER

13615-43010-000   1361543010000

1361543010000

Unit Price

38
PIN

13544-43010-000   1354443010000

1354443010000
Not available
39
SPRING

13543-32410-000   1354332410000

1354332410000
Not available
40
DISCONTINUED

13268-49310-000   1326849310000

1326849310000
Not available
41
ADJUSTER

13605-49310-000   1360549310000

1360549310000
Not available
42
PLATE
PLATE

13373-39110-000   1337339110000

1337339110000

Unit Price

43
SCREW

02112-04068-000  

02112-0406B-000
 0211204068000

Unit Price

44
HOSE

13683-45050-000   1368345050000

1368345050000
Not available
45
HOSE

13683-45050-000   1368345050000

1368345050000
Not available

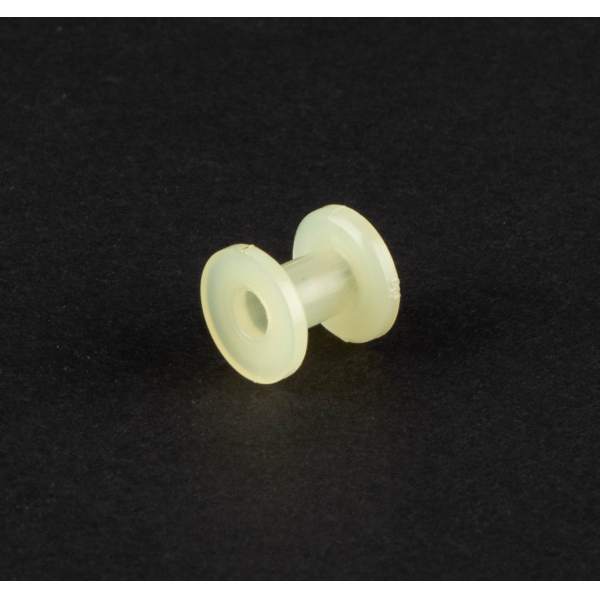

46
RING
RING

13424-33110-000   1342433110000

1342433110000
Not available
47
CAP

13678-43010-000   1367843010000

1367843010000
Not available
48
DISCONTINUED

09492-20002-000   0949220002000

0949220002000
Not available
49

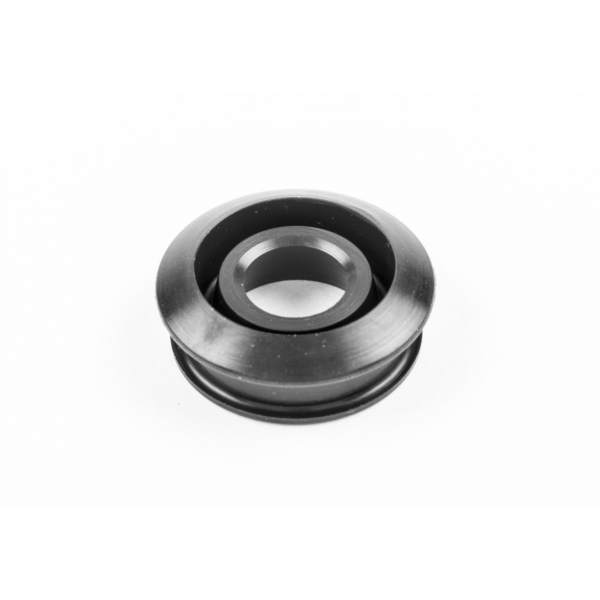

DISCONTINUE<br />SEAL
DISCONTINUE
SEAL

13556-45010-000   1355645010000

1355645010000
Not available
50
BOLT

13613-43010-000  

01500-0516B-000
 1361343010000

Unit Price

51
LOCK WASHER

13614-45020-000   1361445020000

1361445020000
Not available
52
CONTROL ASSY

13210-49310-000   1321049310000

1321049310000
Not available
53
.SCREW

02122-06168-000   0212206168000

0212206168000
Not available
54
SCREW

02112-05168-000  

02112-05167-000
 0211205168000

Unit Price

55
ADJUSTER

13267-49120-000   1326749120000

1326749120000
Not available
56
CAP

13276-49020-000   1327649020000

1327649020000
Not available
57
SPRING

13268-49120-000   1326849120000

1326849120000
Not available
58
DISCONTINUE
SPRING

13573-45010-000   1357345010000

1357345010000
Not available
59
BOLT

13613-43010-000  

01500-0516B-000
 1361343010000

Unit Price

60
LOCK WASHER

13614-45020-000   1361445020000

1361445020000
Not available
61
SPRING

13437-49020-000   1343749020000

1343749020000
Not available
62
RING

13432-49020-000   1343249020000

1343249020000
Not available
63
SHAFT, STARTER

13410-49310-000   1341049310000

1341049310000
Not available
64
PLATE

13557-49120-000   1355749120000

1355749120000
Not available
65
SHAFT

13550-49310-000   1355049310000

1355049310000
Not available
66
LEVER

13422-49120-000   1342249120000

1342249120000
Not available
67
DISCONTINUED

13605-44080-000   1360544080000

1360544080000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CARBURETOR of your Suzuki KATANA of GSX. Let us know if you have any questions.
