TRANSMISSION FOR SUZUKI GSX 1000 1982

GEAR SHIFTING ASSY

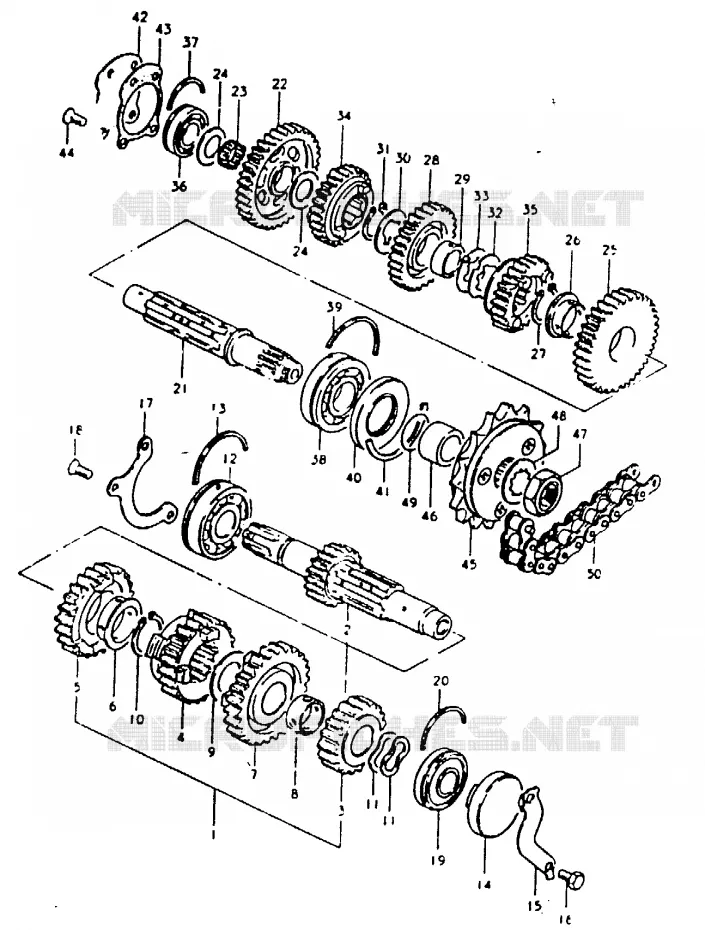

TRANSMISSION Suzuki MOTO 1000 GSX 1982 GSX1000SZ
1
COUNTERSHAFT ASSY

24120-49200-000   2412049200000

2412049200000
Not available
2
COUNTERSHAFT (NT:14)

24100-49820-000   2410049820000

2410049820000
Not available
3
GEAR, 2ND DRIVE (NT:18)

24221-49200-000   2422149200000

2422149200000
Not available
4

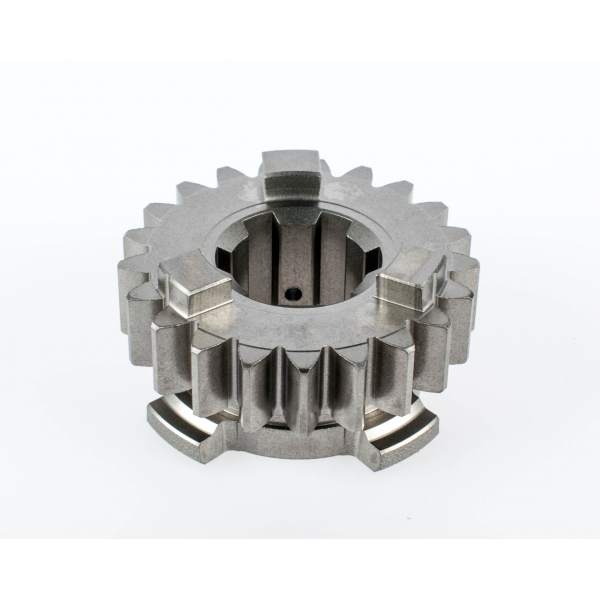

DISCONTINUE<br />GEAR, 3RD DRIVE (NT:21)
DISCONTINUE
GEAR, 3RD DRIVE (NT:21)

24231-49200-000   2423149200000

2423149200000
Not available
5
.GEAR, 4TH DRIVE (NT:24)

24241-49200-000   2424149200000

2424149200000
Not available
6
BUSH(28X32X2)<br />BUSH
BUSH(28X32X2)
BUSH

09301-28001-000   0930128001000

0930128001000

Unit Price

7
GEAR, 5TH DRIVE (NT:26)

24251-49200-000   2425149200000

2425149200000
Not available
8
BUSH

09300-22005-000  

24312-02F00-000
 0930022005000

Unit Price

9
WASHER
WASHER

08211-22321-000   0821122321000

0821122321000
Not available
10
CIRCLIP

08331-11289-000  

08331-31289-000
 0833111289000

Unit Price

11
WASHER<br />WAVE WASHER
WASHER
WAVE WASHER

09164-20004-000   0916420004000

0916420004000

Unit Price

12
BEARING(25X62X17)<br />BALL BEARING (25X62X17)
BEARING(25X62X17)
BALL BEARING (25X62X17)

09262-25051-000   0926225051000

0926225051000

Unit Price

13
C-RING

09390-62006-000  

09390-62012-000
 0939062006000

Unit Price

14
PLUG,COUNTER SHAFT<br />PLUG, COUNTERSHAFT LH
PLUG, COUNTER SHAFT
PLUG, COUNTERSHAFT LH

09241-47004-000   0924147004000

0924147004000

Unit Price

15
DISCONTINUE
HOLDER

23117-45000-000   2311745000000

2311745000000
Not available
16
BOLT, FRONT

01107-06128-000   0110706128000

0110706128000
Not available
17
DISCONTINUE
HOLDER, BEARING

24741-45000-000   2474145000000

2474145000000
Not available
18
.SCREW

02122-06168-000   0212206168000

0212206168000
Not available
19
C SHAFT LH BEARING
BEARING, LH

09262-20044-000   0926220044000

0926220044000

Unit Price

20
DISCONTINUE<br />C RING
DISCONTINUE
C RING

09390-47003-000   0939047003000

0939047003000
Not available
21
DRIVESHAFT

24131-49201-000   2413149201000

2413149201000
Not available
22
GEAR, 1ST DRIVEN (NT:35)

24311-49200-000   2431149200000

2431149200000
Not available
23

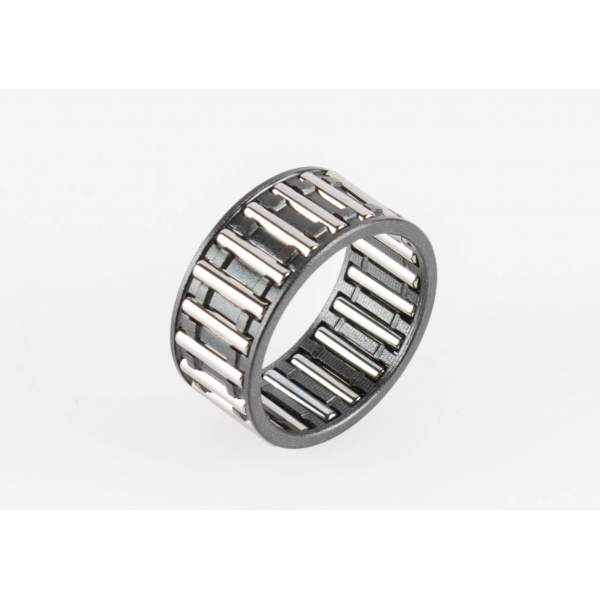

DISCONTINUE<br />BEARING
DISCONTINUE
BEARING

09263-20018-000   0926320018000

0926320018000
Not available
24
WASHER
WASHER

08211-20341-000   0821120341000

0821120341000

Unit Price

25
DISCONTINUE

24321-49200-000  

2432149200000
Not available
26
BUSH(28X32X2)<br />BUSH
BUSH(28X32X2)
BUSH

09301-28001-000   0930128001000

0930128001000

Unit Price

27
CIRCLIP

08331-11289-000  

08331-31289-000
 0833111289000

Unit Price

28
GEAR, 3RD DRIVEN (NT:29)

24331-49200-000   2433149200000

2433149200000
Not available
29
BUSH, 3RD DRIVEN GEAR
BUSH

24332-49000-000   2433249000000

2433249000000

Unit Price

30
WASHER,LOCK<br />WASHER, RH
WASHER, LOCK
WASHER, RH

09167-28001-000   0916728001000

0916728001000

Unit Price

31
CIRCLIP

08331-11289-000  

08331-31289-000
 0833111289000

Unit Price

32
WASHER,LOCK<br />WASHER, LH (T:1.5)
WASHER, LOCK
WASHER, LH (T:1.5)

09167-28002-000   0916728002000

0916728002000

Unit Price

33
WASHER<br />WASHER, LH (T:1.0)
WASHER
WASHER, LH (T:1.0)

09169-28001-000   0916928001000

0916928001000

Unit Price

34
GEAR, 4TH DRIVEN (NT:27)

24341-49200-000   2434149200000

2434149200000
Not available
35
GEAR, 5TH DRIVEN (NT:25)

24351-49200-000   2435149200000

2435149200000
Not available
36
C SHAFT LH BEARING

09262-20041-000  

09262-20044-000
 0926220041000

Unit Price

37
DISCONTINUE<br />C RING
DISCONTINUE
C RING

09390-47003-000   0939047003000

0939047003000
Not available
38
BEARING(25X62X17)<br />BALL BEARING (25X62X17)
BEARING(25X62X17)
BALL BEARING (25X62X17)

09262-25051-000   0926225051000

0926225051000

Unit Price

39
C-RING

09390-62006-000  

09390-62012-000
 0939062006000

Unit Price

40
DR SHAFT OIL SEAL
OIL SEAL

09283-32012-000   0928332012000

0928332012000

Unit Price

41
DISCONTINUE
C RING

09390-62008-000   0939062008000

0939062008000
Not available
42
DISCONTINUE
PLATE

24761-45000-000   2476145000000

2476145000000
Not available
43
GASKET, DRIVE SHAFT PLATE

24762-45000-000  

24762-45000-H17
 2476245000000

Unit Price

44
.SCREW

02122-06168-000   0212206168000

0212206168000
Not available
45
SPROCKET, ENGINE (NT:15)

27510-49010-000   2751049010000

2751049010000
Not available
46
ENG SPROCKET SPACER
SPACER

09180-25052-000   0918025052000

0918025052000

Unit Price

47
NUT

09159-20001-000   0915920001000

0915920001000
Not available
48
WASHER, LOCK

09167-25014-000  

09167-25019-000
 0916725014000

Unit Price

49
DR SFT BRG O RING<br />O RING
DR SFT BRG O RING
O RING

09280-25001-000   0928025001000

0928025001000

Unit Price

50
DISCONTINUE

27600-49220-000  

2760049220000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TRANSMISSION of your Suzuki KATANA of GSX. Let us know if you have any questions.
