WATER PUMP

RADIATOR FOR SUZUKI KATANA 1000 2020

RADIATOR HOSE - EXPANSION TANK

Item numbers

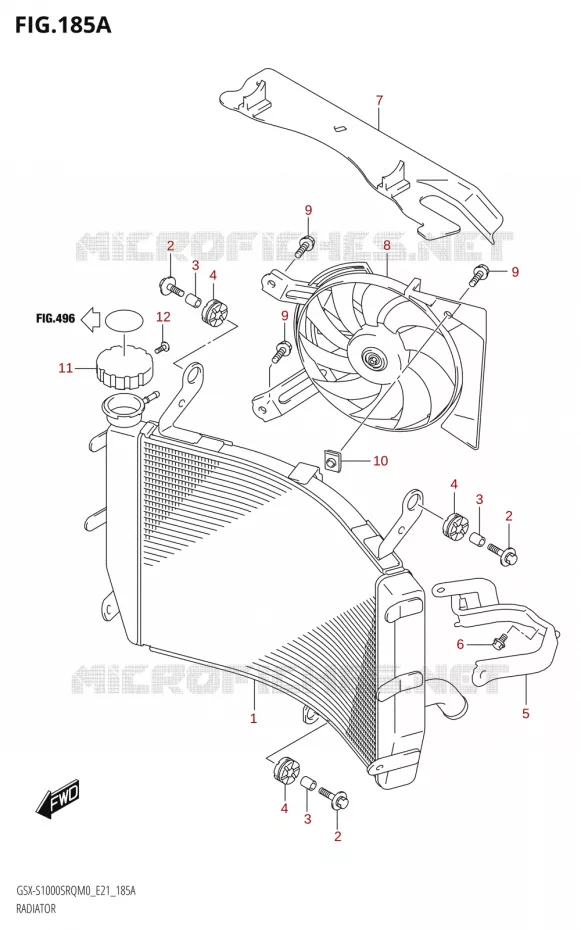

RADIATOR Suzuki MOTO 1000 KATANA 2020 GSX-S1000STQ M0 (E21)
1
2
2
2
3
3
3
4
4
4
5
6
7
8
9
9
9
10
11
12
1
RADIATOR ASSY, WATER

17710-04K50-000   1771004K50000

1771004K50000

Unit Price

2
BOLT 6*25<br />BOLT(6X25)
BOLT 6*25
BOLT(6X25)

09118-06097-000   0911806097000

0911806097000

Unit Price

3
SPACER(6.5X10X12)
SPACER(6.5X10X12)

09180-06290-000   0918006290000

0918006290000

Unit Price

4
CUSHION, RADIATOR UPP
CUSHION

09320-10051-000   0932010051000

0932010051000

Unit Price

5
BRACKET COMP, RADIATOR LOWER
BRACKET, RADIATOR LOWER

17760-07L00-000   1776007L00000

1776007L00000

Unit Price

6
BOLT

01550-0612A-000   015500612A000

015500612A000

Unit Price

7
SHIELD, RADIATOR HEAT

17771-04K00-000   1777104K00000

1777104K00000

Unit Price

8
FAN ASSY, RADIATOR

17800-04K00-000  

17800-48K00-000
 1780004K00000

Unit Price

9
BOLT

01550-0616A-000   015500616A000

015500616A000

Unit Price

10
NUT, RADIATOR FAN

17802-14F00-000   1780214F00000

1780214F00000

Unit Price

11
CAP, RADIATOR
CAP, RADIATOR(1.1)

17730-08D10-000   1773008D10000

1773008D10000

Unit Price

12
SCREW,RADIATOR CAP
SCREW, RADIATOR CAP

17733-03D10-000   1773303D10000

1773303D10000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the RADIATOR of your Suzuki KATANA 1000 of KATANA. Let us know if you have any questions.
