Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

HEADLIGHT (SV1000 E24)

INDICATORS (SV1000S / S1 / S2) FOR SUZUKI SV 1000 2004

INDICATORS (SV1000 / U1 / U2)

Item numbers

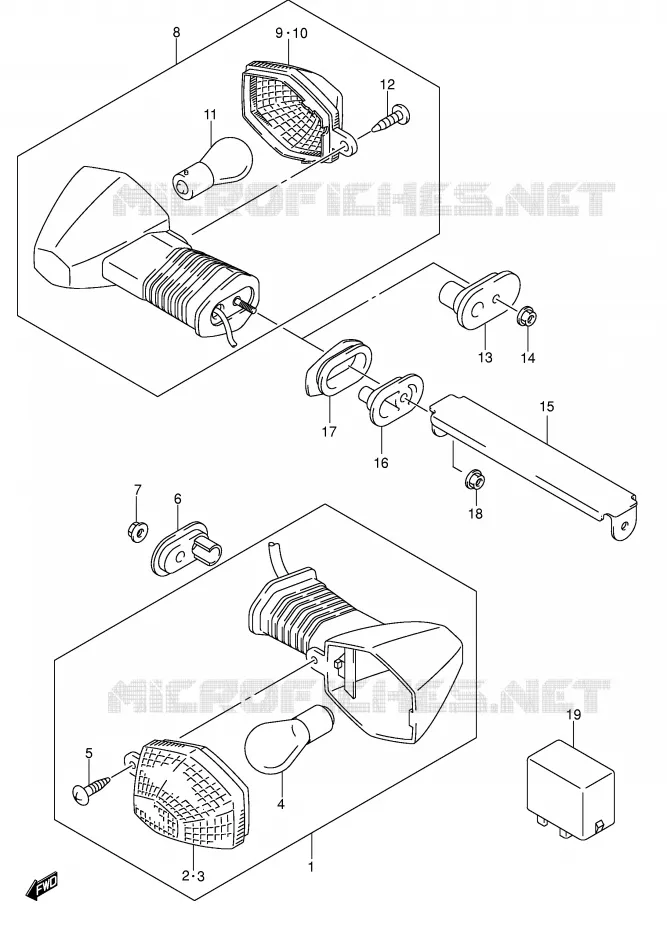

INDICATORS (SV1000S/S1/S2) Suzuki MOTO 1000 SV 2004 SV1000K4(E2)
1
1
2
3
4
5
6
7
8
8
8
8
9
10
11
12
13
14
15
16
17
18
19
1
LAMP ASSY, FR TURN, L
LAMP ASSY, FRONT TURN, LH

35602-16G10-000   3560216G10000

3560216G10000

Unit Price

1
LAMP ASSY, FR TURN, R
LAMP ASSY, FRONT TURN, RH

35601-16G10-000   3560116G10000

3560116G10000

Unit Price

2
LENS<br />LENS, RH
LENS
LENS, RH

35612-31F30-000   3561231F30000

3561231F30000

Unit Price

3
LENS
LENS, LH

35632-31F30-000   3563231F30000

3563231F30000

Unit Price

4
BULB(12V60/55W,H4)<br />BULB (12V,21W)
BULB(12V60/55W, H4)
BULB (12V, 21W)

09471-12045-000   0947112045000

0947112045000

Unit Price

5
SCREW

03242-04163-000  

03242-0416B-000
 0324204163000

Unit Price

6
PLATE,TURNSIGNAL LAMP<br />PLATE, FRONT TURNSIGNAL
PLATE, TURNSIGNAL LAMP
PLATE, FRONT TURNSIGNAL

35629-31F40-000   3562931F40000

3562931F40000

Unit Price

7
NUT

08316-10053-000  

08316-1005B-000
 0831610053000

Unit Price

8
LAMP ASSY, RR TURNSIGNAL, R
LAMP ASSY, REAR TURN, RH

35603-16GC0-000   3560316GC0000

3560316GC0000

Unit Price

8
LAMP ASSY, RR TURNSIGNAL, L
LAMP ASSY, REAR TURN, LH

35604-16G30-000   3560416G30000

3560416G30000

Unit Price

8
LAMP ASSY, RR TURNSIGNAL, L
LAMP ASSY, REAR TURN, LH

35604-16GC0-000   3560416GC0000

3560416GC0000

Unit Price

8
35603-16GC0
LAMP ASSY, REAR TURN, RH

35603-16G30-000   3560316G30000

3560316G30000
Not available
9
LENS
LENS, RH

35632-31F30-000   3563231F30000

3563231F30000

Unit Price

10
LENS<br />LENS, LH
LENS
LENS, LH

35612-31F30-000   3561231F30000

3561231F30000

Unit Price

11
BULB(12V60/55W,H4)<br />BULB (12V,21W)
BULB(12V60/55W, H4)
BULB (12V, 21W)

09471-12045-000   0947112045000

0947112045000

Unit Price

12
SCREW

03242-04163-000  

03242-0416B-000
 0324204163000

Unit Price

13
PLATE,TURNSIGNAL LAMP<br />PLATE, REAR TURNSIGNAL
PLATE, TURNSIGNAL LAMP
PLATE, REAR TURNSIGNAL

35629-31F40-000   3562931F40000

3562931F40000

Unit Price

14
NUT

08316-10053-000  

08316-1005B-000
 0831610053000

Unit Price

15
BRACKET, RR TURNSIGNAL
BRACKET, REAR TURNSIGNAL

35620-16G00-000   3562016G00000

3562016G00000

Unit Price

16
PLATE, RR TURN SIGNAL
PLATE, REAR TURNSIGNAL

35629-16G00-000   3562916G00000

3562916G00000

Unit Price

17
CUSHION, RR
CUSHION, REAR

35647-16G00-000   3564716G00000

3564716G00000

Unit Price

18
NUT

08316-10053-000  

08316-1005B-000
 0831610053000

Unit Price

19
RELAY ASSY,TURNSIGNAL LAMP
RELAY ASSY, TURNSIGNAL LAMP

38610-03F00-000  

38610-03F01-000
 3861003F00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
