SHOCK ABSORBER LINKAGE FOR SUZUKI SV 1000 2004

REAR WHEEL

Item numbers

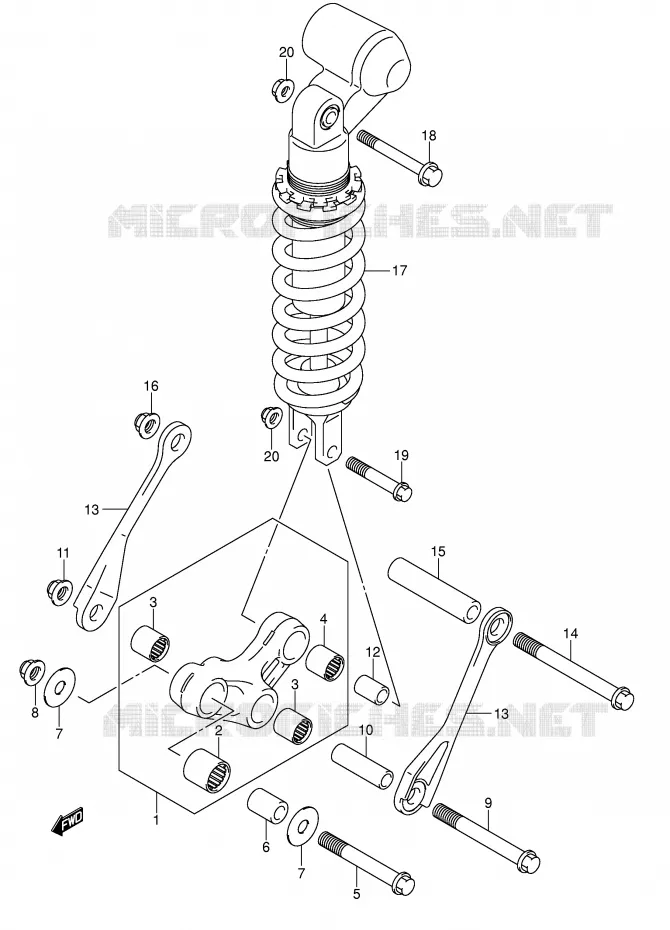

SHOCK ABSORBER LINKAGE Suzuki MOTO 1000 SV 2004 SV1000K4(E2)
1
2
3
3
4
5
6
7
7
8
9
10
11
12
13
13
13
13
14
15
16
17
17
17
18
19
20
20
1
LEVER SET, REAR CUSHION

62600-16840-000   6260016840000

6260016840000
Not available
2
ROLLER BEARING
ROLLER BEARING

09263-20073-000  

09263-20121-000
 0926320073000

Unit Price

3
BEARING
BEARING

09263-17039-000  

09263-17058-000
 0926317039000

Unit Price

4
BEARING
BEARING

09263-17034-000  

09263-17057-000
 0926317034000

Unit Price

5
BOLT,RR CUSHION LEVER FR<br />BOLT, FRONT (12X78)
BOLT, RR CUSHION LEVER FR
BOLT, FRONT (12X78)

62658-19F00-000   6265819F00000

6265819F00000

Unit Price

6
SPACER,RR CUSHION LEVER FR<br />SPACER, FRONT (12X78)
SPACER, RR CUSHION LEVER FR
SPACER, FRONT (12X78)

62684-12C00-000   6268412C00000

6268412C00000

Unit Price

7
WASHER 12X34X1<br />WASHER
WASHER 12X34X1
WASHER

09160-12037-000   0916012037000

0916012037000

Unit Price

8
NUT, REARCUSHION
NUT

09159-12056-000   0915912056000

0915912056000

Unit Price

9
BOLT, RR CUSHION LEVER CTR
BOLT, CENTER

62621-08G00-000   6262108G00000

6262108G00000

Unit Price

10
SPACER, RR CUSHION LEVER CTR
SPACER, CENTER

62626-16G00-000   6262616G00000

6262616G00000

Unit Price

11
NUT, REARCUSHION
NUT

09159-12056-000   0915912056000

0915912056000

Unit Price

12
SPACER,RR CUSHION LEVER<br />SPACER, REAR (10X17X30)
SPACER, RR CUSHION LEVER
SPACER, REAR (10X17X30)

62684-40A10-000   6268440A10000

6268440A10000

Unit Price

13
DISCONTINUE
ROD, REAR CUSHION

62641-16G00-000   6264116G00000

6264116G00000
Not available
13
DISCONTINUE
ROD, REAR CUSHION

62641-16G10-000   6264116G10000

6264116G10000
Not available
14
BOLT, RR CUSHION ROD
BOLT, ROD (12X111)

62621-19D00-000   6262119D00000

6262119D00000

Unit Price

15
SPACER<br />SPACER, ROD (12X17X85)
SPACER
SPACER, ROD (12X17X85)

09180-12122-000   0918012122000

0918012122000

Unit Price

16
NUT, REARCUSHION
NUT

09159-12056-000   0915912056000

0915912056000

Unit Price

17
ABSORBER ASSY, REAR SHOCK (WHITE)

62100-16G00-28W   6210016G0028W

6210016G0028W
Not available
17
ABSORBER ASSY, REAR SHOCK (WHITE)

62100-16G30-28W   6210016G3028W

6210016G3028W
Not available
17
DISCONTINUE
ABSORBER ASSY, REAR SHOCK (WHITE)

62100-16G70-28W   6210016G7028W

6210016G7028W
Not available
18
BOLT,10X70<br />BOLT, UPPER (10X70)
BOLT, 10X70
BOLT, UPPER (10X70)

09103-10033-000   0910310033000

0910310033000

Unit Price

19
BOLT 10 X 55
BOLT, LOWER

09103-10143-000   0910310143000

0910310143000

Unit Price

20
NUT

09159-10058-000  

09159-10115-000
 0915910058000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
