TAIL LIGHT (MODEL K2 / K3) REFER TO FIG.32A(G-10) FOR MODEL K4/K5/K6

TAIL LIGHT (MODEL K4 / K5 / K6) FOR SUZUKI V-STROM 1000 2004

WIRING HARNESS (MODEL K2) REFER TO FIG.33A(G-12) FOR MODEL K3

Item numbers

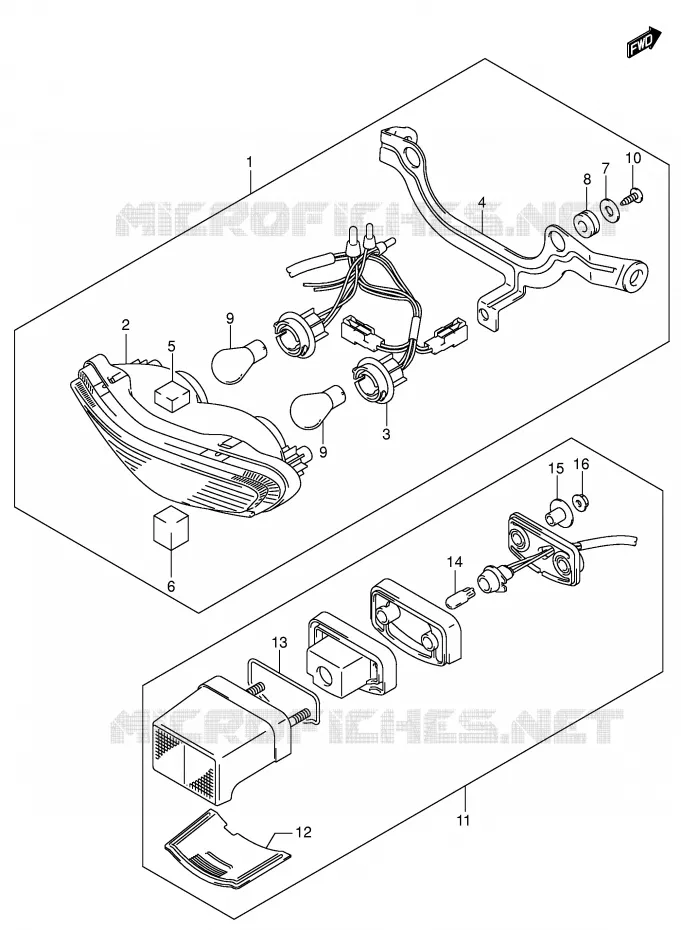

TAIL LIGHT (MODEL K4/K5/K6) Suzuki MOTO 1000 V-STROM 2004 DL1000K4(E2)

1

LAMP ASSY, RR COMBINATION
LAMP ASSY, REAR COMBINATION

35710-06G50-000 3571006G50000

$207,97

Unit Price

2

UNIT

35720-06G00-000 3572006G00000

$123,97

Unit Price

3

SOCKET & CORD

35718-06G50-000 3571806G50000

$103,97

Unit Price

4

BRACKET

35726-06G00-000 3572606G00000

$86,97

Unit Price

5

CUSHION, UPR(20X20X12)
CUSHION, UPPER (20X20X12)

35734-06G00-000 3573406G00000

$7,97

Unit Price

6

CUSHION, LWR(20X20X25)
CUSHION, LOWER (20X20X25)

35739-06G00-000 3573906G00000

$7,97

Unit Price

7

WASHER
WASHER (5.5X20X1.2)

09160-05501-000 0916005501000

$3,97

Unit Price

8

CUSHION, REAR COMB BRACKET

09320-10049-000

09320-10070-000

$3,97

Unit Price

9

BULB(12V1.4W G30)
BULB (12V, 21/5W)

09471-12083-000 0947112083000

$9,97

Unit Price

10

SCREW

03242-05163-000

03241-0516A-000

$2,97

Unit Price

11

LAMP ASSY, LICENSE

35910-06G01-000 3591006G01000

$144,97

Unit Price

12

LENS

35912-08F00-000 3591208F00000

$16,97

Unit Price

13

GASKET

35913-08F00-000 3591308F00000

$142,97

Unit Price

14

BULB 12V1.7W, T6.5
BULB (12V, 5W)

09471-12216-000

Not available

15

SPACER

35766-27G30-000 3576627G30000

$7,97

Unit Price

16

NUT

08316-20063-000

08316-10067-000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TAIL LIGHT (MODEL K4/K5/K6) of your Suzuki V-STROM 1000 of V-STROM. Let us know if you have any questions.

Genuine parts for Suzuki 1000 V-STROM 2004
