CLUTCH MASTER CYLINDER FOR SUZUKI V-STROM 1000 2004

STAND

Item numbers

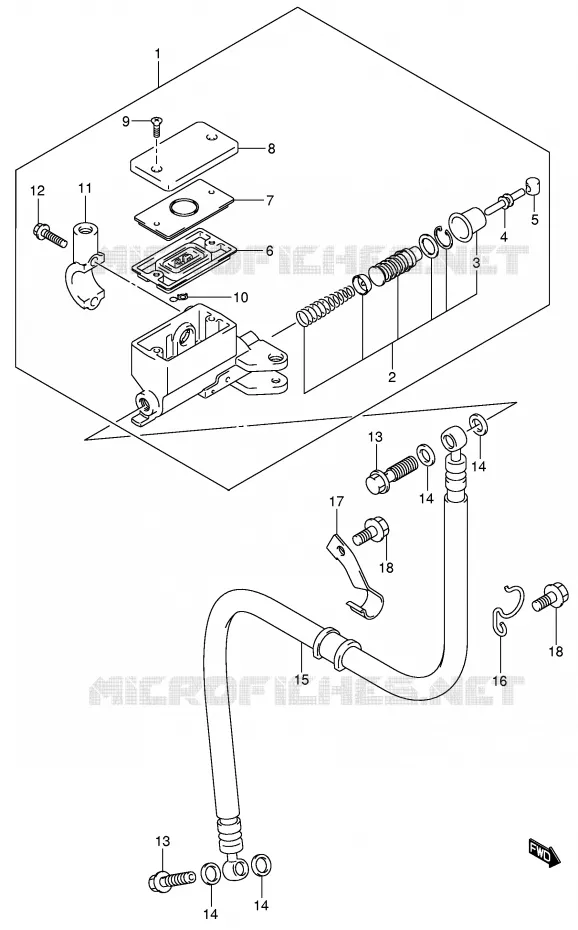

CLUTCH MASTER CYLINDER Suzuki MOTO 1000 V-STROM 2004 DL1000K4(E2)

1

CYLINDER ASSY, CLUTCH MASTER

59800-32F00-000

59800-32F02-000

$372,97

Unit Price

2

PISTON & CUP SET
PISTON/CUP SET

59800-08810-000 5980008810000

$51,97

Unit Price

3

BOOT

59666-44300-000 5966644300000

$8,97

Unit Price

4

59871-32F00
PUSH ROD

59871-38A00-000

Not available

5

BUSH

59892-08A00-000 5989208A00000

$7,97

Unit Price

6

DIAPHRAGM

59667-49460-000 5966749460000

$11,97

Unit Price

7

PLATE, DIAPHRAGM

59668-41C00-000 5966841C00000

$13,97

Unit Price

8

CAP

59669-10G00-000 5966910G00000

$27,97

Unit Price

9

SCREW, RESERVOIR CAP
SCREW

69689-49300-000 6968949300000

$2,97

Unit Price

10

PROTECTOR

59664-32F00-000 5966432F00000

$13,97

Unit Price

11

HOLDER

59671-32F00-000 5967132F00000

$18,97

Unit Price

12

BOLT (6X22)

59675-02FA0-000 5967502FA0000

$6,97

Unit Price

13

BOLT, BRAKE FLUID

09360-10042-000

09360-10062-000

$11,97

Unit Price

14

WASHER
WASHER, (10X15X1.5)

09161-10009-000 0916110009000

$3,97

Unit Price

15

HOSE

59910-06G00-000

59910-06G01-000

$189,97

Unit Price

16

CLAMP, CLUTCH HOSE NO.1

59915-24F00-000 5991524F00000

$9,97

Unit Price

17

CLAMP, CLUTCH HOSE NO.2

59921-06G00-000 5992106G00000

$16,97

Unit Price

18

BOLT

01550-06123-000

01550-0612B-000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CLUTCH MASTER CYLINDER of your Suzuki V-STROM 1000 of V-STROM. Let us know if you have any questions.

Genuine parts for Suzuki 1000 V-STROM 2004
