WIRING HARNESS (MODEL K3) REFER TO FIG.33B(G-13) FOR MODEL K4/K5/K6

WIRING HARNESS (MODEL K4 / K5 / K6) FOR SUZUKI V-STROM 1000 2006

SWITCHES (MODEL K2) REFER TO FIG.34A(G-15) FOR MODEL K3/K4

Item numbers

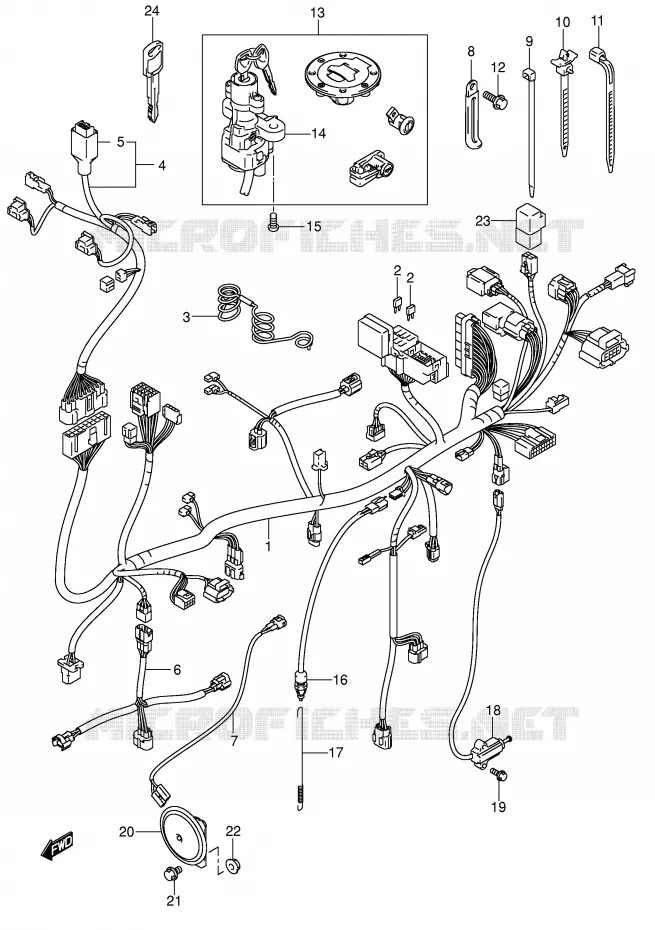

WIRING HARNESS (MODEL K4/K5/K6) Suzuki MOTO 1000 V-STROM 2006 DL1000K6(E2)
1
1
1
1
2
2
2
2
3
4
4
5
6
7
8
8
9
10
11
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
HARNESS, WIRING NO.1

36610-06G70-000   3661006G70000

3661006G70000

Unit Price

1
HARNESS, WIRING NO.1

36610-06G40-000   3661006G40000

3661006G40000
Not available
1
DISCONTINUE
HARNESS, WIRING NO.1

36610-06G50-000   3661006G50000

3661006G50000
Not available
1
DISCONTINUE
HARNESS, WIRING NO.1

36610-06G60-000   3661006G60000

3661006G60000
Not available
2
FUSE (15A)

09481-15501-000   0948115501000

0948115501000

Unit Price

2
FUSE (10A)
FUSE (10A)

09481-10501-000  

0948110501000
Not available
3
GUIDE, WIRING HARNESS

36619-06G01-000   3661906G01000

3661906G01000

Unit Price

4
HARNESS, WIRING NO.2

36620-27G10-000   3662027G10000

3662027G10000
Not available
4
36620-27G31
HARNESS, WIRING NO.2

36620-27G30-000   3662027G30000

3662027G30000
Not available
5
COVER, CONNECTOR
COVER, SPEEDOMETER

36618-18G10-000  

3661818G10000
Not available
6
WIRE, INJECTOR LEAD

36859-06G00-000   3685906G00000

3685906G00000

Unit Price

7
WIRE, HORN LEAD

36852-06G00-000   3685206G00000

3685206G00000

Unit Price

8
CLAMP(L:65)
CLAMP(L:65)

09404-06429-000  

09404-06039-000
 0940406429000

Unit Price

8
CLAMP(L:80)

09404-06433-000  

09404-06036-000
 0940406433000

Unit Price

9
CLAMP<br />CLAMP (L:145)
CLAMP
CLAMP (L:145)

09407-14407-000   0940714407000

0940714407000

Unit Price

10
CLAMP, WATER HOSE

09407-17401-000  

09407-17402-000
 0940717401000

Unit Price

11
BAND, WIRING HARNESS

09407-11401-000  

09407-14403-000
 0940711401000

Unit Price

12
BOLT

01547-06103-000  

01547-0610B-000
 0154706103000

Unit Price

13
37000-06863
LOCK SET

37000-06860-000  

3700006860000
Not available
14
37100-06G01
LOCK ASSY, STEERING

37100-06G00-000   3710006G00000

3710006G00000
Not available
15
BOLT<br />SCREW (8X20)
BOLT
SCREW (8X20)

09139-08016-000   0913908016000

0913908016000

Unit Price

16
SWITCH ASSY, STOP LAMP

37740-45D00-000   3774045D00000

3774045D00000

Unit Price

17
SPRING, STOP LAMP SWITCH
SPRING, STOP LAMP

43259-06G00-000   4325906G00000

4325906G00000

Unit Price

18
37840-06G02

37840-06G00-000  

3784006G00000
Not available
19
01550-0616A
BOLT

01550-06163-000  

0155006163000
Not available
20
HORN ASSY

38500-41F00-000   3850041F00000

3850041F00000

Unit Price

21
BOLT

01550-08123-000  

01550-0812B-000
 0155008123000

Unit Price

22
NUT

08316-10083-000  

08316-1008B-000
 0831610083000

Unit Price

23
RELAY ASSY<br />RELAY ASSY, FUEL PUMP
RELAY ASSY
RELAY ASSY, FUEL PUMP

38740-24X50-000   3874024X50000

3874024X50000

Unit Price

24
KEY, BLANK
KEY, BLANK

37146-33E00-000   3714633E00000

3714633E00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the WIRING HARNESS (MODEL K4/K5/K6) of your Suzuki V-STROM 1000 of V-STROM. Let us know if you have any questions.
