ANTI POLLUTION SYSTEM

CLUTCH FOR SUZUKI V-STROM 1000 2011

TRANSMISSION

GEAR ASSY, PRI DRIVEN
GEAR ASSY, PRIMARY DRIVEN

21200-06811-000 2120006811000

$647,97

Unit Price

WASHER (25X52X2.5)

09160-25074-000 0916025074000

$12,97

Unit Price

BEARING, PRI DRVN GR
BEARING (35X40X39.8)

09263-35013-000 0926335013000

$50,97

Unit Price

HUB, CLUTCH SLEEVE

21410-06G00-000 2141006G00000

$212,97

Unit Price

BOLT, CLUTCH SPRING

21412-06G00-000 2141206G00000

$5,97

Unit Price

SPRING, CLUTCH

21413-06G10-000 2141306G10000

$16,97

Unit Price

WASHER
WASHER, CLUTCH SPRING

21414-29F00-000 2141429F00000

$9,97

Unit Price

PLATE, CLUTCH DRIVE, NO.1

21441-24F20-000

Not available

PLATE, CLUTCH DRIVE NO.3
PLATE, CLUTCH DRIVE NO.2

21442-24F00-000 2144224F00000

$40,97

Unit Price

PLATE, CLUTCH DRIVE NO.2
PLATE, CLUTCH DRIVE NO.3

21441-24F10-000 2144124F10000

$32,97

Unit Price

PLATE, CLUTCH DRIVEN NO.1(T:2.0
PLATE, CLUTCH DRIVEN

21451-24F00-000 2145124F00000

$16,97

Unit Price

PLATE, CLUTCH DRIVEN NO.4(T:2.3
PLATE, CLUTCH DRIVEN

21451-24F10-000 2145124F10000

$18,97

Unit Price

DISC, CLUTCH PRESSURE
DISK, CLUTCH PRESSURE

21462-06G00-000 2146206G00000

$88,97

Unit Price

SEAT, WAVE WASHER

21471-06G00-000 2147106G00000

$23,97

Unit Price

WASHER, CLUTCH PLATE WAVE

21472-06G00-000 2147206G00000

$17,97

Unit Price

NUT

09159-24010-000 0915924010000

$22,97

Unit Price

WASHER SLEEVE HUB
WASHER (25X50X2.5)

09160-25056-000 0916025056000

$20,97

Unit Price

WASHER CL SLEEVE HUB
WASHER

09164-24006-000 0916424006000

$6,97

Unit Price

SHIM, 25X38X1.0
SHIM (25X38X1)

09181-25223-000 0918125223000

$5,97

Unit Price

ROD, CLUTCH
ROD, CLUTCH PUSH RH

23110-27A00-000 2311027A00000

$23,97

Unit Price

ROD, CLUTCH PUSH LH

23111-26D00-000 2311126D00000

$17,97

Unit Price

PIECE, CLUTCH PUSH

23121-31E00-000 2312131E00000

$27,97

Unit Price

23160-06G21
CYLINDER, CLUTCH RELEASE

23160-06G02-000

Not available

CUP

23163-06B00-000 2316306B00000

$10,97

Unit Price

SPRING, CLUTCH CYLINDER
SPRING

23164-05A00-000 2316405A00000

$6,97

Unit Price

BLEEDER

59121-01A00-000 5912101A00000

$12,97

Unit Price

CAP, BLEEDER

59122-01A00-000 5912201A00000

$6,97

Unit Price

COVER, DUST

23166-06G00-000 2316606G00000

$18,97

Unit Price

04221-08149-000 0422108149000

$3,97

Unit Price

BOLT

07130-0665A-000 071300665A000

$6,97

Unit Price

BOLT

07130-0670A-000 071300670A000

$6,97

Unit Price

WASHER
WASHER (15.5X28X1)

09160-15045-000 0916015045000

$6,97

Unit Price

SPACER, CL RLSE CYL
SPACER, CL RELEASE CYL

23171-06G00-000 2317106G00000

$11,97

Unit Price

BEARING (15X28X2)

09263-15003-000 0926315003000

$12,97

Unit Price

SEAL, CLUTCH PUSH ROD
OIL SEAL (6X34X10.5)

09283-06008-000 0928306008000

$29,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

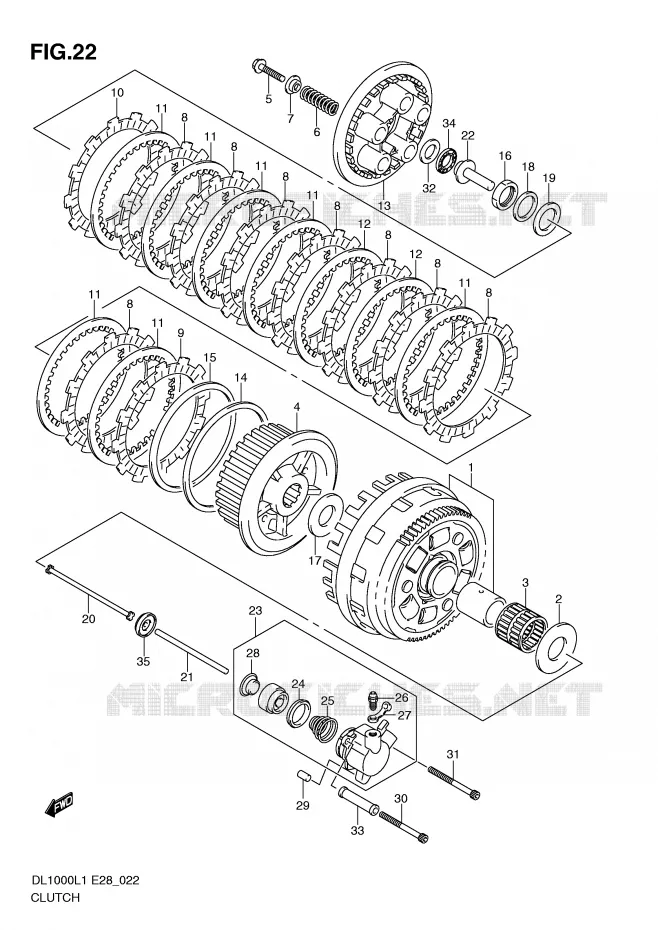

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CLUTCH of your Suzuki of V-STROM. Let us know if you have any questions.
