LEVERS - HANDGRIPS

FRONT FORK FOR SUZUKI V-STROM 1000 2011

STEERING COLUMN

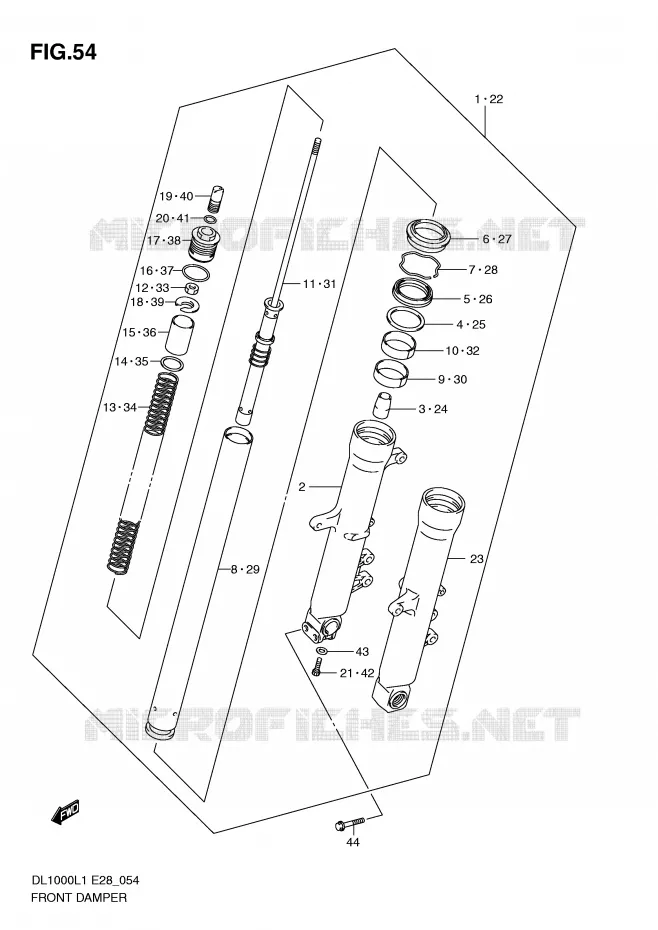

FRONT FORK Suzuki MOTO 1000 V-STROM 2011 DL1000L1(E28)
1
DAMPER ASSY, FR FORK, R
DAMPER ASSY, FRONT FORK RH

51103-06G20-000   5110306G20000

5110306G20000

Unit Price

2
TUBE, OUTER, R
TUBE, OUTER RH

51130-06G00-000   5113006G00000

5113006G00000

Unit Price

3
PIECE, OIL LOCK
PIECE, OIL LOCK

51195-31E00-000   5119531E00000

5119531E00000

Unit Price

4
SPACER, SEAL
SPACER, SEAL

51168-17C00-000   5116817C00000

5116817C00000

Unit Price

5
SEAL, OIL
SEAL, OIL

51153-14D00-000   5115314D00000

5115314D00000

Unit Price

6
SEAL, DUST
SEAL, DUST

51173-29E00-000   5117329E00000

5117329E00000

Unit Price

7
CIRCLIP,FORK OIL SEAL<br />RING, STOPPER
CIRCLIP, FORK OIL SEAL
RING, STOPPER

51556-38B00-000   5155638B00000

5155638B00000

Unit Price

8
TUBE, INNER

51110-06G20-000   5111006G20000

5111006G20000

Unit Price

9
BUSH, SLIDE
BUSH, SLIDE

51121-13E00-000   5112113E00000

5112113E00000

Unit Price

10
BUSH, GUIDE
BUSH, GUIDE

51152-13E00-000   5115213E00000

5115213E00000

Unit Price

11
ROD, FR DAMPER
ROD, FRONT DAMPER

52110-06G20-000   5211006G20000

5211006G20000

Unit Price

12
NUT
NUT

51827-27E00-000   5182727E00000

5182727E00000

Unit Price

13
SPRING, FR
SPRING, FRONT

51171-06G20-000   5117106G20000

5117106G20000

Unit Price

14
SEAT,SPRING LWR<br />SEAT, SPRING, LOWER
SEAT, SPRING LWR
SEAT, SPRING, LOWER

51186-17C00-000   5118617C00000

5118617C00000

Unit Price

15
COLLAR, SPRING, 32.9X34X50
COLLAR, SPRING, 32.9X34X50

51176-12C10-000   5117612C10000

5117612C10000

Unit Price

16
O RING
O RING

51117-17C00-000   5111717C00000

5111717C00000

Unit Price

17
BOLT, FORK
BOLT, FORK

51189-14D00-000   5118914D00000

5118914D00000

Unit Price

18
SEAT,SPRING UPR<br />SEAT, SPRING UPPER
SEAT, SPRING UPR
SEAT, SPRING UPPER

51172-17C00-000   5117217C00000

5117217C00000

Unit Price

19
ADJUSTER, SPRING
ADJUSTER, SPRING

51185-31E00-000   5118531E00000

5118531E00000

Unit Price

20
O RING,02.5,ID:13.8<br />O RING (D:2.5,ID:13.8)
O RING, 02.5, ID:13.8
O RING (D:2.5, ID:13.8)

09280-14011-000   0928014011000

0928014011000

Unit Price

21
BOLT, 8X27
BOLT, 8X27

51147-48130-000   5114748130000

5114748130000

Unit Price

22
DAMPER ASSY, FR FORK, L
DAMPER ASSY, FRONT FORK LH

51104-06G20-000   5110406G20000

5110406G20000

Unit Price

23
TUBE, OUTER, L
TUBE, OUTER LH

51140-06G00-000   5114006G00000

5114006G00000

Unit Price

24
PIECE, OIL LOCK
PIECE, OIL LOCK

51195-31E00-000   5119531E00000

5119531E00000

Unit Price

25
SPACER, SEAL
SPACER, SEAL

51168-17C00-000   5116817C00000

5116817C00000

Unit Price

26
SEAL, OIL
SEAL, OIL

51153-14D00-000   5115314D00000

5115314D00000

Unit Price

27
SEAL, DUST
SEAL, DUST

51173-29E00-000   5117329E00000

5117329E00000

Unit Price

28
CIRCLIP,FORK OIL SEAL<br />RING, STOPPER
CIRCLIP, FORK OIL SEAL
RING, STOPPER

51556-38B00-000   5155638B00000

5155638B00000

Unit Price

29
TUBE, INNER

51110-06G20-000   5111006G20000

5111006G20000

Unit Price

30
BUSH, SLIDE
BUSH, SLIDE

51121-13E00-000   5112113E00000

5112113E00000

Unit Price

31
ROD, FR DAMPER
ROD, FRONT DAMPER

52110-06G20-000   5211006G20000

5211006G20000

Unit Price

32
BUSH, GUIDE
BUSH, GUIDE

51152-13E00-000   5115213E00000

5115213E00000

Unit Price

33
NUT
NUT

51827-27E00-000   5182727E00000

5182727E00000

Unit Price

34
SPRING, FR
SPRING, FRONT

51171-06G20-000   5117106G20000

5117106G20000

Unit Price

35
SEAT,SPRING LWR<br />SEAT, SPRING, LOWER
SEAT, SPRING LWR
SEAT, SPRING, LOWER

51186-17C00-000   5118617C00000

5118617C00000

Unit Price

36
COLLAR, SPRING, 32.9X34X50
COLLAR, SPRING, 32.9X34X50

51176-12C10-000   5117612C10000

5117612C10000

Unit Price

37
O RING
O RING

51117-17C00-000   5111717C00000

5111717C00000

Unit Price

38
BOLT, FORK
BOLT, FORK

51189-14D00-000   5118914D00000

5118914D00000

Unit Price

39
SEAT,SPRING UPR<br />SEAT, SPRING UPPER
SEAT, SPRING UPR
SEAT, SPRING UPPER

51172-17C00-000   5117217C00000

5117217C00000

Unit Price

40
ADJUSTER, SPRING
ADJUSTER, SPRING

51185-31E00-000   5118531E00000

5118531E00000

Unit Price

41
O RING,02.5,ID:13.8<br />O RING (D:2.5,ID:13.8)
O RING, 02.5, ID:13.8
O RING (D:2.5, ID:13.8)

09280-14011-000   0928014011000

0928014011000

Unit Price

42
BOLT, 8X27
BOLT, 8X27

51147-48130-000   5114748130000

5114748130000

Unit Price

43
GASKET
GASKET

51148-36011-000   5114836011000

5114836011000

Unit Price

44
BOLT
BOLT, RH

51166-06G00-000   5116606G00000

5116606G00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FORK of your Suzuki of V-STROM. Let us know if you have any questions.

Genuine parts for Suzuki 1000 V-STROM 2011
