CYLINDER

CASING FOR SUZUKI V-STROM 1000 2012

CASING

Item numbers

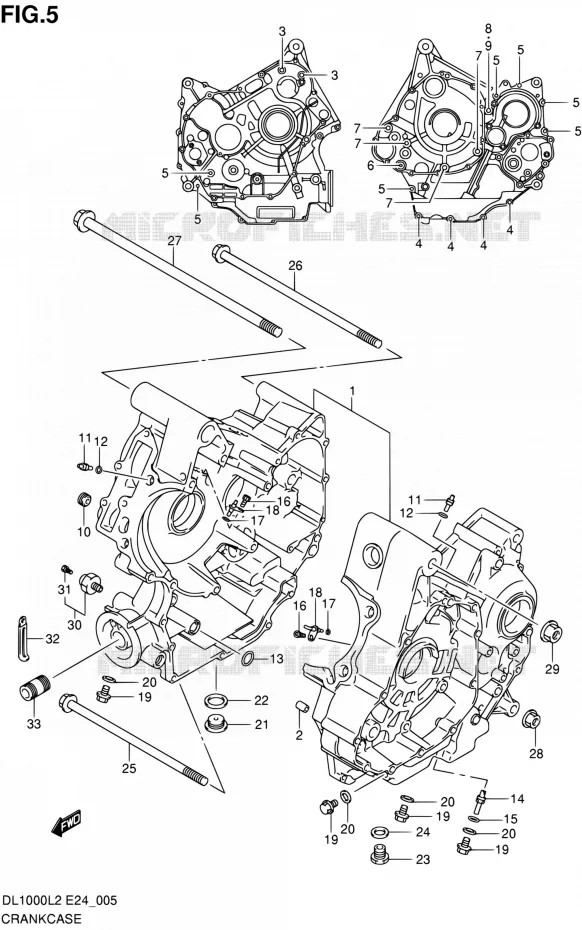

CASING Suzuki MOTO 1000 V-STROM 2012 DL1000 L2 (E24)
1
2
3
3
4
4
4
4
5
5
5
5
5
5
5
6
7
7
7
7
8
9
10
11
11
12
12
13
14
15
16
16
17
17
18
18
19
19
19
19
20
20
20
20
21
22
23
24
25
26
27
28
29
30
31
32
33
1
DISCONTINUE
CRANKCASE SET

11306-06821-000   1130606821000

1130606821000
Not available
2
PIN,CRANKCASE<br />.PIN
PIN, CRANKCASE
.PIN

11319-33E00-000   1131933E00000

1131933E00000

Unit Price

3
.BOLT (8X110)
.BOLT (8X110)

09106-08142-000   0910608142000

0910608142000

Unit Price

4
.BOLT
.BOLT

01547-0630B-000   015470630B000

015470630B000

Unit Price

5
.BOLT
.BOLT

01547-0670B-000   015470670B000

015470670B000

Unit Price

6
.BOLT
.BOLT

01547-0685B-000   015470685B000

015470685B000

Unit Price

7
.BOLT

07120-0890B-000   071200890B000

071200890B000

Unit Price

8
.BOLT (8X125)

09106-08136-000   0910608136000

0910608136000

Unit Price

9
.WASHER
.WASHER

08322-0108B-000   083220108B000

083220108B000

Unit Price

10
.JET, OIL GALLERY 3.6
.JET, OIL GALLERY 3.6

11329-02F00-000   1132902F00000

1132902F00000

Unit Price

11
JET,OIL<br />.JET, OIL GALLERY (14)
JET, OIL
.JET, OIL GALLERY (14)

09493-28010-000   0949328010000

0949328010000

Unit Price

12
O RING<br />.O RING (D:1.2,ID:4)
O RING
.O RING (D:1.2, ID:4)

09280-04004-000   0928004004000

0928004004000

Unit Price

13
.O RING (D:1.9,ID:12.6)
.O RING (D:1.9, ID:12.6)

09280-12009-000   0928012009000

0928012009000

Unit Price

14
JET,OIL GALLERY<br />JET, OIL GALLERY MISSION
JET, OIL GALLERY
JET, OIL GALLERY MISSION

09493-20014-000   0949320014000

0949320014000

Unit Price

15
O RING<br />O RING (D:1.2,ID:4)
O RING
O RING (D:1.2, ID:4)

09280-04004-000   0928004004000

0928004004000

Unit Price

16
BOLT (6X12)
BOLT (6X12)

09106-06075-000   0910606075000

0910606075000

Unit Price

17
O RING (D:1.2,ID:4.7)
O RING (D:1.2, ID:4.7)

09280-05007-000   0928005007000

0928005007000

Unit Price

18
JET, PISTON COOLING

11390-06G10-000   1139006G10000

1139006G10000

Unit Price

19
BOLT
BOLT

01550-0812B-000   015500812B000

015500812B000

Unit Price

20
GASKET (8.2X14X1)
GASKET (8.2X14X1)

09168-08016-000   0916808016000

0916808016000

Unit Price

21
PLUG,OIL<br />PLUG (16X8)
PLUG, OIL
PLUG (16X8)

09248-16012-000   0924816012000

0924816012000

Unit Price

22
GASKET OIL GALLERY<br />GASKET (16X22X2)
GASKET OIL GALLERY
GASKET (16X22X2)

09168-16002-000   0916816002000

0916816002000

Unit Price

23
PLUG, OIL DRAIN
PLUG (14X20)

09247-14036-000   0924714036000

0924714036000

Unit Price

24
GASKET,13.8X18.8X0.4<br />GASKET (13.8X18.8X4.8)
GASKET, 13.8X18.8X0.4
GASKET (13.8X18.8X4.8)

09168-14002-000   0916814002000

0916814002000

Unit Price

25
BOLT (10X225)
BOLT (10X225)

09103-10205-000   0910310205000

0910310205000

Unit Price

26
BOLT (10X275)

09103-10347-000   0910310347000

0910310347000

Unit Price

27
BOLT (12X330)

09103-12073-000   0910312073000

0910312073000

Unit Price

28
NUT
NUT

08319-3110B-000   083193110B000

083193110B000

Unit Price

29
NUT

09159-12054-000   0915912054000

0915912054000

Unit Price

30
SWITCH ASSY,OIL PRESSURE
SWITCH ASSY, OIL PRESSURE

37820-33D10-000  

37820-33D11-000
 3782033D10000

Unit Price

31
BOLT, OIL PRESSURE SWITCH
.BOLT

37822-33D00-000   3782233D00000

3782233D00000

Unit Price

32
CLAMP(L:65)
CLAMP(L:65)

09404-06429-000  

09404-06039-000
 0940406429000

Unit Price

33
UNION,OIL STAND<br />UNION, OIL FILTER STAND
UNION, OIL STAND
UNION, OIL FILTER STAND

16591-06B01-000   1659106B01000

1659106B01000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CASING of your Suzuki of V-STROM. Let us know if you have any questions.
