CRANKSHAFT FOR SUZUKI V-STROM 1000 2012

STARTER MOTOR CLUTCH

Item numbers

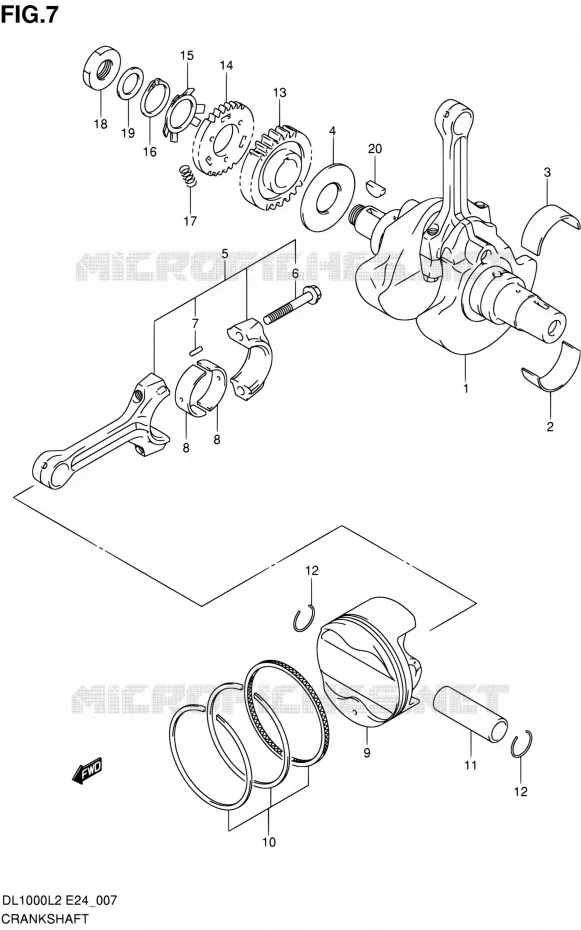

CRANKSHAFT Suzuki MOTO 1000 V-STROM 2012 DL1000 L2 (E24)
1
2
2
2
3
3
3
4
5
6
7
8
8
8
8
8
8
8
8
9
10
11
12
12
13
14
15
16
17
18
19
20
1
CRANKSHAFT

12220-06G00-000   1222006G00000

1222006G00000

Unit Price

2
BEARING, CRANKSHAFT
BEARING, LOWER (GREEN)

12229-16G00-0A0   1222916G000A0

1222916G000A0

Unit Price

2
BEARING, CRANKSHAFT
BEARING, LOWER (BLACK)

12229-16G00-0B0   1222916G000B0

1222916G000B0

Unit Price

2
BEARING, LOWER (BROWN)

12229-16G00-0C0   1222916G000C0

1222916G000C0
Not available
3
BEARING, CRANKSHAFT
BEARING, UPPER (GREEN)

12229-16G00-0A0   1222916G000A0

1222916G000A0

Unit Price

3
BEARING, CRANKSHAFT
BEARING, UPPER (BLACK)

12229-16G00-0B0   1222916G000B0

1222916G000B0

Unit Price

3
BEARING, UPPER (BROWN)

12229-16G00-0C0   1222916G000C0

1222916G000C0
Not available
4
WASHER, CRANK THRUST

12652-38B00-000   1265238B00000

1265238B00000

Unit Price

5
CONNECTING ROD ASSY

12160-06G00-000   1216006G00000

1216006G00000

Unit Price

6
BOLT, CONNECTING ROD
.BOLT

12163-06G00-000   1216306G00000

1216306G00000

Unit Price

7
PIN,CONNROD<br />.PIN
PIN, CONNROD
.PIN

12165-27A50-000   1216527A50000

1216527A50000

Unit Price

8
BEARING,CRANK PIN<br />BEARING, CRANK PIN (GREEN)
BEARING, CRANK PIN
BEARING, CRANK PIN (GREEN)

12164-02F12-0A0   1216402F120A0

1216402F120A0

Unit Price

8
BEARING,CRANK PIN<br />BEARING, CRANK PIN (BLACK)
BEARING, CRANK PIN
BEARING, CRANK PIN (BLACK)

12164-02F12-0B0   1216402F120B0

1216402F120B0

Unit Price

8
BEARING,CRANK PIN<br />BEARING, CRANK PIN (BROWN)
BEARING, CRANK PIN
BEARING, CRANK PIN (BROWN)

12164-02F12-0C0   1216402F120C0

1216402F120C0

Unit Price

8
BEARING,CRANK PIN<br />BEARING, CRANK PIN (YELLOW)
BEARING, CRANK PIN
BEARING, CRANK PIN (YELLOW)

12164-02F12-0D0   1216402F120D0

1216402F120D0

Unit Price

9
PISTON

12111-06G00-0F0   1211106G000F0

1211106G000F0

Unit Price

10
RING SET, PISTON
RING SET, PISTON

12140-02F42-000   1214002F42000

1214002F42000

Unit Price

11
PIN, PISTON
PIN, PISTON

12151-02F00-000   1215102F00000

1215102F00000

Unit Price

12
CIRCLIP
CIRCLIP

09381-22002-000   0938122002000

0938122002000

Unit Price

13
GEAR, PRIMARY DRIVE

21111-02F11-000   2111102F11000

2111102F11000

Unit Price

14
GEAR, PRIMARY DRIVE SCISSORS
GEAR, PRIMARY DRIVE SCISSORS

21112-02F00-000   2111202F00000

2111202F00000

Unit Price

15
WASHER,PRI DRIVE<br />WASHER
WASHER, PRI DRIVE
WASHER

21114-02F00-000   2111402F00000

2111402F00000

Unit Price

16
CIRCLIP

08331-31409-000  

0833131409000
Not available
17
SPRING
SPRING

09440-07001-000   0944007001000

0944007001000

Unit Price

18
NUT
NUT

09140-22012-000   0914022012000

0914022012000

Unit Price

19
WASHER
WASHER

09164-22007-000   0916422007000

0916422007000

Unit Price

20
KEY
KEY

09420-06001-000   0942006001000

0942006001000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKSHAFT of your Suzuki of V-STROM. Let us know if you have any questions.
