ELCTRICAL FOR SUZUKI V-STROM 1000 2012

BATTERY

Item numbers

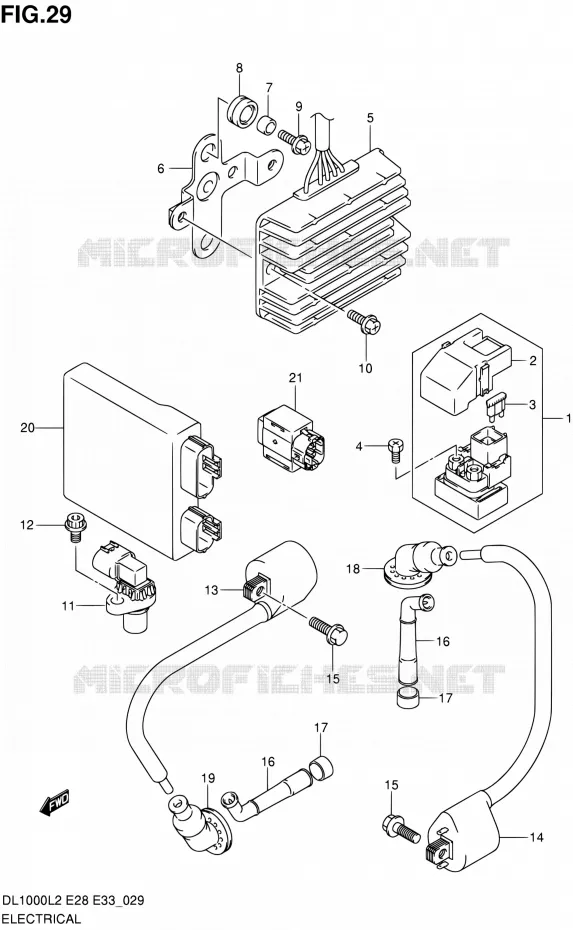

ELCTRICAL Suzuki MOTO 1000 V-STROM 2012 DL1000L2(E03,E28,E33)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
15
16
16
17
17
18
19
20
21
1
RELAY ASSY, STARTING MOTOR

31800-06G00-000  

31800-06G02-000
 3180006G00000

Unit Price

2
COVER<br />.COVER, RELAY ASSY
COVER
.COVER, RELAY ASSY

31861-47E00-000   3186147E00000

3186147E00000

Unit Price

3
.FUSE (30A)
.FUSE (30A)

09481-30101-000   0948130101000

0948130101000

Unit Price

4
SCREW (6X8)
SCREW (6X8)

09128-06013-000   0912806013000

0912806013000

Unit Price

5
RECTIFIER ASSY

32800-06G01-000  

32800-06G02-000
 3280006G01000

Unit Price

6
BRACKET, RECT FTG
BRACKET, RECTIFIER

32831-06G10-000   3283106G10000

3283106G10000

Unit Price

7
SPACER (6.5X9X6.7)
SPACER (6.5X9X6.7)

09180-06258-000   0918006258000

0918006258000

Unit Price

8
CUSHION
CUSHION

09320-09036-000   0932009036000

0932009036000
Not available
9
SCREW

02162-0620B-000  

02162-0620C-000
 021620620B000

Unit Price

10
SCREW

02162-0620B-000  

02162-0620C-000
 021620620B000

Unit Price

11
SENSOR ASSY, CRANK PO
SENSOR ASSY, CAM POSITION

33220-80G00-000   3322080G00000

3322080G00000

Unit Price

12
BOLT
BOLT

07130-0616B-000   071300616B000

071300616B000

Unit Price

13
COIL ASSY, IGNITION

33410-06G00-000  

33410-06G01-000
 3341006G00000

Unit Price

14
COIL ASSY, IGNITION

33420-06G00-000  

33420-06G01-000
 3342006G00000

Unit Price

15
BOLT
BOLT

01547-0620B-000   015470620B000

015470620B000

Unit Price

16
CAP ASSY, SPARK PLUG

33510-17G00-000   3351017G00000

3351017G00000

Unit Price

17
SEAL, SPARK PLUG
SEAL, SPARK PLUG CAP

33541-23E10-000   3354123E10000

3354123E10000

Unit Price

18
SEAL, HIGH TENSION CORD, RR

33542-06G00-000   3354206G00000

3354206G00000

Unit Price

19
SEAL, HIGH TENSION CORD, FR

33542-06G10-000   3354206G10000

3354206G10000

Unit Price

20
CONTROL UNIT, FI

32920-06G71-000  

32920-06G72-000
 3292006G71000

Unit Price

21
SENSOR ASSY, FUEL CUT

33960-06G10-000   3396006G10000

3396006G10000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the ELCTRICAL of your Suzuki of V-STROM. Let us know if you have any questions.
