Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

SWINGARM

FRONT FORK FOR SUZUKI V-STROM 1000 2012

STEERING COLUMN

Item numbers

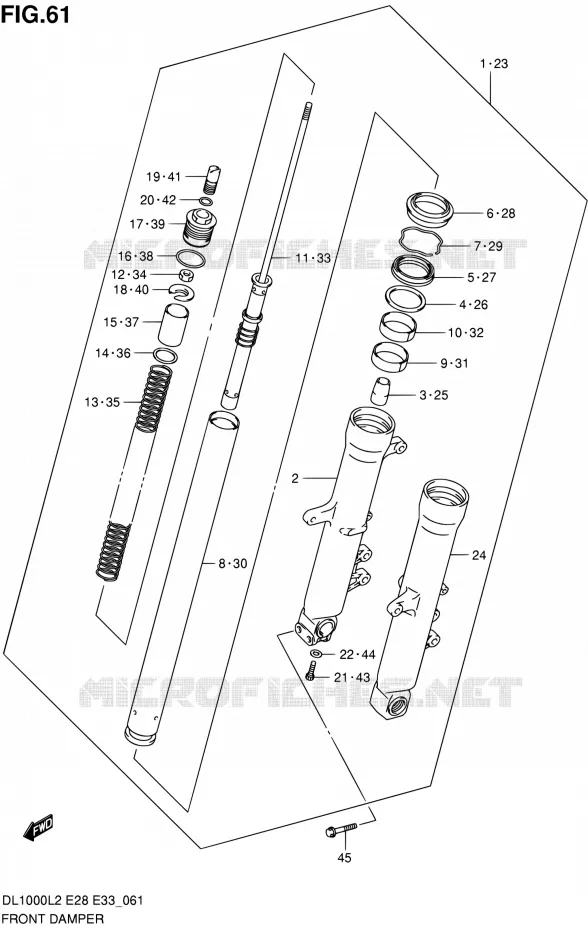

FRONT FORK Suzuki MOTO 1000 V-STROM 2012 DL1000L2(E03,E28,E33)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
1
DAMPER ASSY, FR FORK, R
DAMPER ASSY, FRONT FORK RH

51103-06G20-000   5110306G20000

5110306G20000

Unit Price

2
TUBE, OUTER, R
.TUBE, OUTER RH

51130-06G00-000   5113006G00000

5113006G00000

Unit Price

3
.PIECE, OIL LOCK
.PIECE, OIL LOCK

51195-31E00-000   5119531E00000

5119531E00000

Unit Price

4
.SPACER, SEAL
.SPACER, SEAL

51168-17C00-000   5116817C00000

5116817C00000

Unit Price

5
.SEAL, OIL
.SEAL, OIL

51153-14D00-000   5115314D00000

5115314D00000

Unit Price

6
.SEAL, DUST
.SEAL, DUST

51173-29E00-000   5117329E00000

5117329E00000

Unit Price

7
CIRCLIP,FORK OIL SEAL<br />.RING, STOPPER
CIRCLIP, FORK OIL SEAL
.RING, STOPPER

51556-38B00-000   5155638B00000

5155638B00000

Unit Price

8
.TUBE, INNER

51110-06G20-000   5111006G20000

5111006G20000

Unit Price

9
.BUSH, SLIDE
.BUSH, SLIDE

51121-13E00-000   5112113E00000

5112113E00000

Unit Price

10
.BUSH, GUIDE
.BUSH, GUIDE

51152-13E00-000   5115213E00000

5115213E00000

Unit Price

11
ROD, FR DAMPER
.ROD, FRONT DAMPER

52110-06G20-000   5211006G20000

5211006G20000

Unit Price

12
.NUT
.NUT

51827-27E00-000   5182727E00000

5182727E00000

Unit Price

13
SPRING, FR
.SPRING, FRONT

51171-06G20-000   5117106G20000

5117106G20000

Unit Price

14
SEAT,SPRING LWR<br />.SEAT, SPRING LOWER
SEAT, SPRING LWR
.SEAT, SPRING LOWER

51186-17C00-000   5118617C00000

5118617C00000

Unit Price

15
.COLLAR, SPRING (32.9X34X50)
.COLLAR, SPRING (32.9X34X50)

51176-12C10-000   5117612C10000

5117612C10000

Unit Price

16
.O RING
.O RING

51117-17C00-000   5111717C00000

5111717C00000

Unit Price

17
.BOLT, FORK
.BOLT, FORK

51189-14D00-000   5118914D00000

5118914D00000

Unit Price

18
SEAT,SPRING UPR<br />.SEAT, SPRING UPPER
SEAT, SPRING UPR
.SEAT, SPRING UPPER

51172-17C00-000   5117217C00000

5117217C00000

Unit Price

19
.ADJUSTER, SPRING
.ADJUSTER, SPRING

51185-31E00-000   5118531E00000

5118531E00000

Unit Price

20
O RING,02.5,ID:13.8<br />.O RING (D:2.5,ID:13.8)
O RING, 02.5, ID:13.8
.O RING (D:2.5, ID:13.8)

09280-14011-000   0928014011000

0928014011000

Unit Price

21
.BOLT (8X27)
.BOLT (8X27)

51147-48130-000   5114748130000

5114748130000

Unit Price

22
.GASKET
.GASKET

51148-36011-000   5114836011000

5114836011000

Unit Price

23
DAMPER ASSY, FR FORK, L
DAMPER ASSY, FRONT FORK LH

51104-06G20-000   5110406G20000

5110406G20000

Unit Price

24
TUBE, OUTER, L
.TUBE, OUTER LH

51140-06G00-000   5114006G00000

5114006G00000

Unit Price

25
.PIECE, OIL LOCK
.PIECE, OIL LOCK

51195-31E00-000   5119531E00000

5119531E00000

Unit Price

26
.SPACER, SEAL
.SPACER, SEAL

51168-17C00-000   5116817C00000

5116817C00000

Unit Price

27
.SEAL, OIL
.SEAL, OIL

51153-14D00-000   5115314D00000

5115314D00000

Unit Price

28
.SEAL, DUST
.SEAL, DUST

51173-29E00-000   5117329E00000

5117329E00000

Unit Price

29
CIRCLIP,FORK OIL SEAL<br />.RING, STOPPER
CIRCLIP, FORK OIL SEAL
.RING, STOPPER

51556-38B00-000   5155638B00000

5155638B00000

Unit Price

30
.TUBE, INNER

51110-06G20-000   5111006G20000

5111006G20000

Unit Price

31
.BUSH, SLIDE
.BUSH, SLIDE

51121-13E00-000   5112113E00000

5112113E00000

Unit Price

32
.BUSH, GUIDE
.BUSH, GUIDE

51152-13E00-000   5115213E00000

5115213E00000

Unit Price

33
ROD, FR DAMPER
.ROD, FRONT DAMPER

52110-06G20-000   5211006G20000

5211006G20000

Unit Price

34
.NUT
.NUT

51827-27E00-000   5182727E00000

5182727E00000

Unit Price

35
SPRING, FR
.SPRING, FRONT

51171-06G20-000   5117106G20000

5117106G20000

Unit Price

36
SEAT,SPRING LWR<br />.SEAT, SPRING LOWER
SEAT, SPRING LWR
.SEAT, SPRING LOWER

51186-17C00-000   5118617C00000

5118617C00000

Unit Price

37
.COLLAR, SPRING (32.9X34X50)
.COLLAR, SPRING (32.9X34X50)

51176-12C10-000   5117612C10000

5117612C10000

Unit Price

38
.O RING
.O RING

51117-17C00-000   5111717C00000

5111717C00000

Unit Price

39
.BOLT, FORK
.BOLT, FORK

51189-14D00-000   5118914D00000

5118914D00000

Unit Price

40
SEAT,SPRING UPR<br />.SEAT, SPRING UPPER
SEAT, SPRING UPR
.SEAT, SPRING UPPER

51172-17C00-000   5117217C00000

5117217C00000

Unit Price

41
.ADJUSTER, SPRING
.ADJUSTER, SPRING

51185-31E00-000   5118531E00000

5118531E00000

Unit Price

42
O RING,02.5,ID:13.8<br />.O RING (D:2.5,ID:13.8)
O RING, 02.5, ID:13.8
.O RING (D:2.5, ID:13.8)

09280-14011-000   0928014011000

0928014011000

Unit Price

43
.BOLT (8X27)
.BOLT (8X27)

51147-48130-000   5114748130000

5114748130000

Unit Price

44
.GASKET
.GASKET

51148-36011-000   5114836011000

5114836011000

Unit Price

45
BOLT

51166-06G00-000   5116606G00000

5116606G00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FORK of your Suzuki of V-STROM. Let us know if you have any questions.

Genuine parts for Suzuki 1000 V-STROM 2012
