CRACKCASE COVER

CRACKCASE COVER FOR SUZUKI V-STROM 1000 2012

CRANKSHAFT

Item numbers

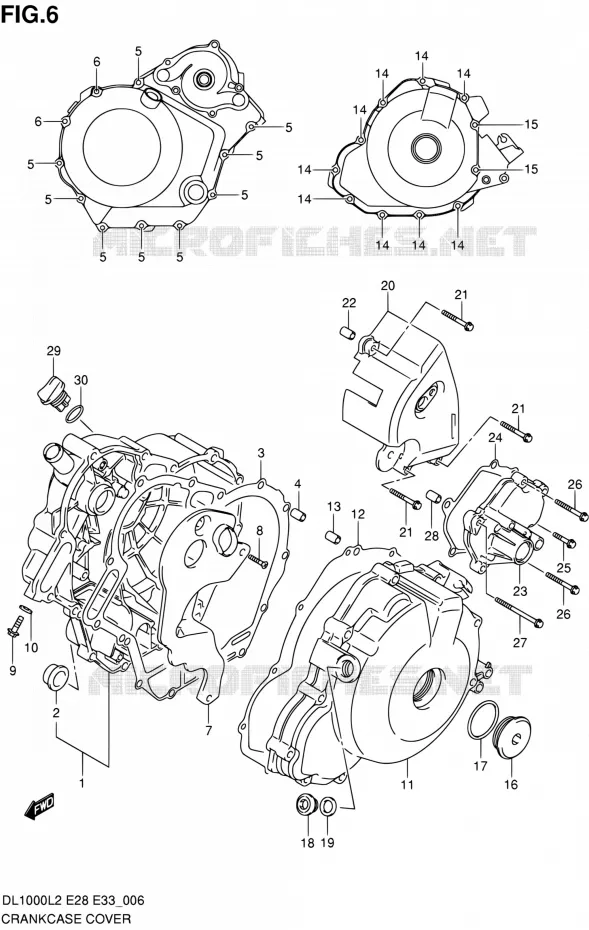

CRACKCASE COVER Suzuki MOTO 1000 V-STROM 2012 DL1000L2(E03,E28,E33)
1
2
3
4
5
5
5
5
5
5
5
5
5
6
6
7
8
9
10
11
12
13
14
14
14
14
14
14
14
14
14
15
15
16
17
18
19
21
21
21
21
22
23
24
25
26
26
27
28
29
30
1
COVER, CLUTCH

11340-06G20-000  

11340-06G21-000
 1134006G20000

Unit Price

2
.LENS, OIL LEVEL CHECK
.LENS, OIL LEVEL CHECK

11971-33210-000   1197133210000

1197133210000

Unit Price

3
GASKET, CLUTCH COVER

11482-06G10-000   1148206G10000

1148206G10000

Unit Price

4
PIN
PIN

04211-09149-000   0421109149000

0421109149000

Unit Price

5
BOLT, CL COV/MAG COV,
BOLT (6X30)

09103-06213-000   0910306213000

0910306213000

Unit Price

6
BOLT, CLUTCH COVER(L7
BOLT (6X75)

09103-06257-000   0910306257000

0910306257000

Unit Price

7
SEPARATOR, OIL

11342-06G00-000   1134206G00000

1134206G00000

Unit Price

8
SCREW

02112-0612A-000  

02112-0612B-000
 021120612A000

Unit Price

9
BOLT
BOLT

01550-0610B-000   015500610B000

015500610B000

Unit Price

10
GASKET(6.4X11.5X0.84)<br />GASKET (6.4X11.5X0.8)
GASKET(6.4X11.5X0.84)
GASKET (6.4X11.5X0.8)

09168-06026-000   0916806026000

0916806026000

Unit Price

11
COVER, MAGNETO

11351-02F51-000  

11351-02F52-000
 1135102F51000

Unit Price

12
GASKET, MAGNETO COVER
GASKET, MAGNETO COVER

11483-02F10-000   1148302F10000

1148302F10000

Unit Price

13
PIN
PIN

04211-09149-000   0421109149000

0421109149000

Unit Price

14
BOLT, ST CL COV/ST ID
BOLT (6X35)

09103-06214-000   0910306214000

0910306214000

Unit Price

15
BOLT, ENG SPRKT COV, L
BOLT (6X70)

09103-06225-000   0910306225000

0910306225000

Unit Price

16
PLUG,SHAFT HOLE<br />PLUG (SILVER)
PLUG, SHAFT HOLE
PLUG (SILVER)

09259-36016-20H   092593601620H

092593601620H

Unit Price

17
O-RING,CRANK SHAFT<br />O RING (D:3.1,ID:32.7)
O-RING, CRANK SHAFT
O RING (D:3.1, ID:32.7)

09280-33004-000   0928033004000

0928033004000

Unit Price

18
09248-14011
PLUG (14X12)

09248-14012-000  

0924814012000
Not available
19
GASKET,13.8X18.8X0.4<br />GASKET (13.8X18.8X4.8)
GASKET, 13.8X18.8X0.4
GASKET (13.8X18.8X4.8)

09168-14002-000   0916814002000

0916814002000

Unit Price

20
COVER, ENGINE SPROCKET

11360-06G00-000   1136006G00000

1136006G00000

Unit Price

21
BOLT, ST CL COV/ST ID
BOLT (6X35)

09103-06214-000   0910306214000

0910306214000

Unit Price

22
PIN
PIN

04211-09149-000   0421109149000

0421109149000

Unit Price

23
COVER, GEAR SHIFT

11381-06G00-000   1138106G00000

1138106G00000

Unit Price

24
GASKET,GEAR SHIFT COVER<br />GASKET
GASKET, GEAR SHIFT COVER
GASKET

11485-02F10-000   1148502F10000

1148502F10000

Unit Price

25
BOLT (6X105)
BOLT (6X105)

09103-06126-000   0910306126000

0910306126000

Unit Price

26
BOLT
BOLT

01547-0625B-000   015470625B000

015470625B000

Unit Price

27
BOLT

01547-0635A-000   015470635A000

015470635A000

Unit Price

28
PIN
PIN

04211-09149-000   0421109149000

0421109149000

Unit Price

29
PLUG,ENGINE OIL FILLER<br />PLUG, OIL FILLER
PLUG, ENGINE OIL FILLER
PLUG, OIL FILLER

11971-25D00-000   1197125D00000

1197125D00000

Unit Price

30
O-RING,OIL FILLER<br />O RING (D:3.1,ID:16.8)
O-RING, OIL FILLER
O RING (D:3.1, ID:16.8)

09280-17003-000   0928017003000

0928017003000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRACKCASE COVER of your Suzuki of V-STROM. Let us know if you have any questions.
