FRONT WHEEL

SWINGARM FOR SUZUKI V-STROM 1000 2012

FRONT FORK

Item numbers

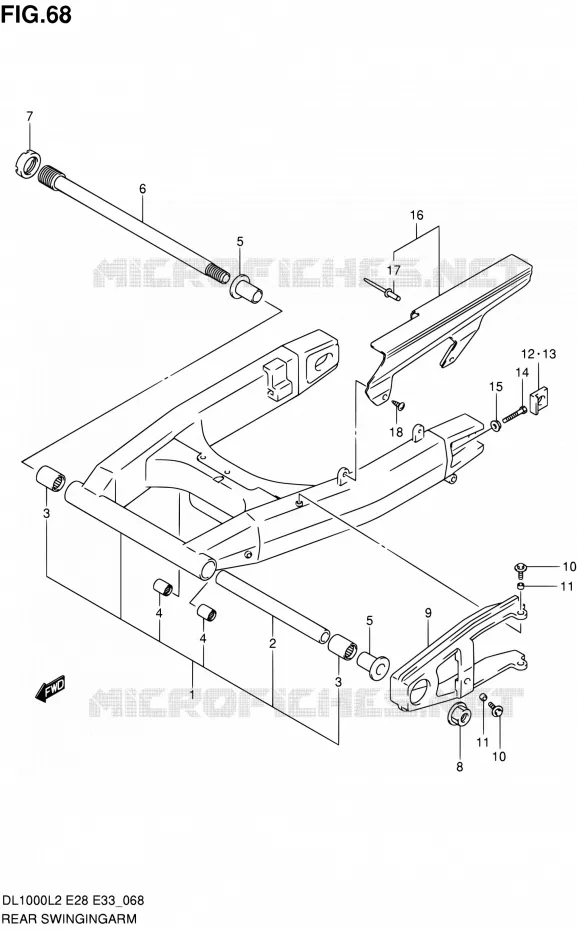

SWINGARM Suzuki MOTO 1000 V-STROM 2012 DL1000L2(E03,E28,E33)
1
2
3
3
4
4
5
5
6
7
8
9
10
10
11
11
12
13
14
15
16
17
18
1
SWINGING ARM ASSY, REAR (BLACK)

61000-06G20-000   6100006G20000

6100006G20000
Not available
2
SPACER, RR SWGARM PIV
.SPACER (20.8X27.2X196.7)

09180-20118-000   0918020118000

0918020118000

Unit Price

3
BEARING
BEARING

09263-25059-000  

09263-25073-000
 0926325059000

Unit Price

4
BEARING
BEARING

09263-17037-000  

09263-17053-000
 0926317037000

Unit Price

5
SPACER,PIVOT BEARING<br />SPACER, SWINGING ARM
SPACER, PIVOT BEARING
SPACER, SWINGING ARM

61251-31E00-000   6125131E00000

6125131E00000

Unit Price

6
SHAFT, RR SWINGING ARM PIVOT

61211-06G00-000   6121106G00000

6121106G00000

Unit Price

7
NUT,RR SWGARM PIVOT BOLT<br />NUT, PIVOT SHAFT
NUT, RR SWGARM PIVOT BOLT
NUT, PIVOT SHAFT

61214-19F10-000   6121419F10000

6121419F10000

Unit Price

8
NUT
NUT

08319-3118A-000   083193118A000

083193118A000

Unit Price

9
BUFFER, CHAIN TOUCH DEFENSE

61273-06G00-000  

61273-06G01-000
 6127306G00000

Unit Price

10
BOLT<br />BOLT (6X20)
BOLT
BOLT (6X20)

09116-06152-000   0911606152000

0911606152000

Unit Price

11
SPACER (6.5X9X5)
SPACER (6.5X9X5)

09180-06306-000   0918006306000

0918006306000

Unit Price

12
WASHER,CHAIN ADJUSTER,L<br />ADJUSTER, CHAIN LH
WASHER, CHAIN ADJUSTER, L
ADJUSTER, CHAIN LH

61446-17E11-000   6144617E11000

6144617E11000

Unit Price

13
WASHER,CHAIN ADJUSTER,L<br />ADJUSTER, CHAIN RH
WASHER, CHAIN ADJUSTER, L
ADJUSTER, CHAIN RH

61446-27C21-000   6144627C21000

6144627C21000

Unit Price

14
BOLT<br />BOLT (8X50)
BOLT
BOLT (8X50)

09100-08287-000   0910008287000

0910008287000

Unit Price

15
NUT

08316-1008A-000   083161008A000

083161008A000

Unit Price

16
CASE, CHAIN
CASE, CHAIN

61310-34E00-000   6131034E00000

6131034E00000

Unit Price

17
.RIVET

09229-03019-000   0922903019000

0922903019000
Not available
18
SCREW<br />SCREW (6X16)
SCREW
SCREW (6X16)

09139-06083-000   0913906083000

0913906083000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SWINGARM of your Suzuki of V-STROM. Let us know if you have any questions.
