Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FOOTREST

FUEL TANK FOR SUZUKI V-STROM 1000 2015

FUEL TANK COVER

Item numbers

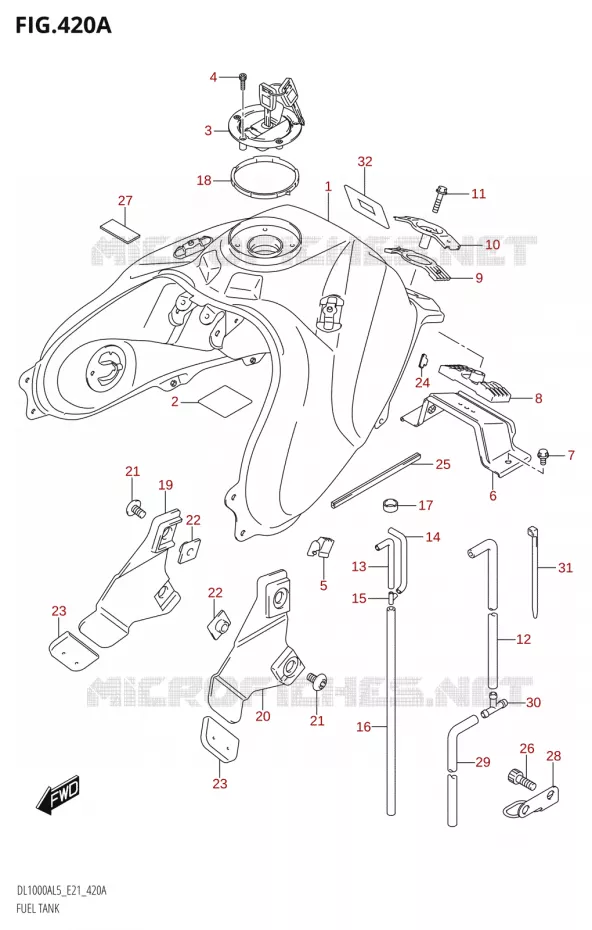

FUEL TANK Suzuki MOTO 1000 V-STROM 2015 DL1000A L5 (E21)
1
1
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
21
22
22
23
23
24
25
26
27
28
29
30
31
32
1
TANK ASSY, FUEL(SILVER)

44100-31J11-YMC   4410031J11YMC

4410031J11YMC
Not available
1
TANK ASSY, FUEL(BLACK)

44100-31J11-YVB   4410031J11YVB

4410031J11YVB
Not available
1
TANK ASSY, FUEL(WHITE)

44100-31J11-YWW   4410031J11YWW

4410031J11YWW
Not available
1
TANK ASSY, FUEL(RED)

44100-31J11-YYG   4410031J11YYG

4410031J11YYG
Not available
2
SEAL, EPS MOTOR PROTECTOR

48599-57L00-000   4859957L00000

4859957L00000
Not available
3
44200-17812

44200-17810-000  

4420017810000
Not available
4
BOLT, FUEL TANK FILLER CAP

44244-11J00-000   4424411J00000

4424411J00000

Unit Price

5
CUSHION, FUEL TANK SIDE

44541-31J00-000   4454131J00000

4454131J00000

Unit Price

6
BRACKET, FUEL TANK REAR

44550-31J00-000   4455031J00000

4455031J00000

Unit Price

7
BOLT

01550-0816A-000   015500816A000

015500816A000

Unit Price

8
CUSHION, FUEL TANK RR LWR

44545-06G00-000   4454506G00000

4454506G00000

Unit Price

9
CUSHION, FUEL TANK RR UPR

44542-06G00-000   4454206G00000

4454206G00000

Unit Price

10
BRACKET, FUEL TANK RR UP
BRACKET, FUEL TANK REAR UP

44530-06G00-000   4453006G00000

4453006G00000

Unit Price

11
BOLT
BOLT

01550-0835A-000   015500835A000

015500835A000
Not available
12
DISCONTINUE
HOSE, FUEL TANK WATER DRAIN

44423-31J00-000  

4442331J00000
Not available
13
DISCONTINUE
HOSE, FUEL TANK BRTHR NO.1

44424-31J00-000  

4442431J00000
Not available
14
HOSE, FUEL TANK BRTHR NO.3

44424-15H10-000  

44424-15H11-000
 4442415H10000

Unit Price

15
3 WAY

09367-06007-000   0936706007000

0936706007000

Unit Price

16
DISCONTINUE
HOSE, FUEL TANK BRTHR NO.2

44424-31J10-000  

4442431J10000
Not available
17
HOSE(12X16X600)
HOSE(12X16X600)

09352-12163-600  

09352-12164-600
 0935212163600

Unit Price

18
MOLDING, FUEL TANK COVER

68241-31J00-000   6824131J00000

6824131J00000

Unit Price

19
BRACKET, FUEL TANK COVER SIDE, R
BRKT, FUEL TANK COVER SIDE RH

44179-31J00-000   4417931J00000

4417931J00000

Unit Price

20
BRACKET, FUEL TANK COVER SIDE, L
BRKT, FUEL TANK COVER SIDE LH

44189-31J00-000   4418931J00000

4418931J00000

Unit Price

21
SCREW(6X10)

09139-06181-000   0913906181000

0913906181000

Unit Price

22
NUT(M6)
NUT, M6(M6)

44523-47H00-000   4452347H00000

4452347H00000

Unit Price

23
CUSHION, FUEL TANK COV BRKT
CUSHION, FUEL TANK COVER BRKT

44542-31J00-000   4454231J00000

4454231J00000

Unit Price

24
CUSHION, FUEL TANK COVER

44276-21H00-000  

44276-21H01-000
 4427621H00000

Unit Price

25
MOLDING, FUEL TANK(L:110)
MOLDING, FUEL TANK RR

44552-24B00-000   4455224B00000

4455224B00000

Unit Price

26
BOLT(6X16.5)

07130-1016B-000  

09111-06116-000
 071301016B000

Unit Price

27
CUSHION, FUEL TANK

44544-31J00-000   4454431J00000

4454431J00000

Unit Price

28
GUIDE, DRAIN HOSE

44480-31J00-000   4448031J00000

4448031J00000

Unit Price

29
DISCONTINUE
HOSE, FUEL TANK DRAIN NO.2

44423-31J11-000  

4442331J11000
Not available
30
3 WAY

09367-08005-000   0936708005000

0936708005000

Unit Price

31
CLAMP<br />CLAMP(L:145)
CLAMP
CLAMP(L:145)

09407-14407-000   0940714407000

0940714407000

Unit Price

32
CUSHION

44545-31J00-000   4454531J00000

4454531J00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FUEL TANK of your Suzuki V-STROM 1000 ABS of V-STROM. Let us know if you have any questions.

Genuine parts for Suzuki 1000 V-STROM 2015

Suzuki 1000 V-STROM 2015

Select your Suzuki 2015 model

1000 V-STROM 2015 DL1000A L5 (E21)
1000 V-STROM 2015 DL1000A L5 (E21)

V-STROM 1000 ABS

Suzuki V-STROM

Displacement: 1000 cc
Year: 2015
Model code DL1000A L5 (E21)
