HEADLIGHT

INDICATORS FOR SUZUKI V-STROM 1000 2015

TAIL LIGHT

Item numbers

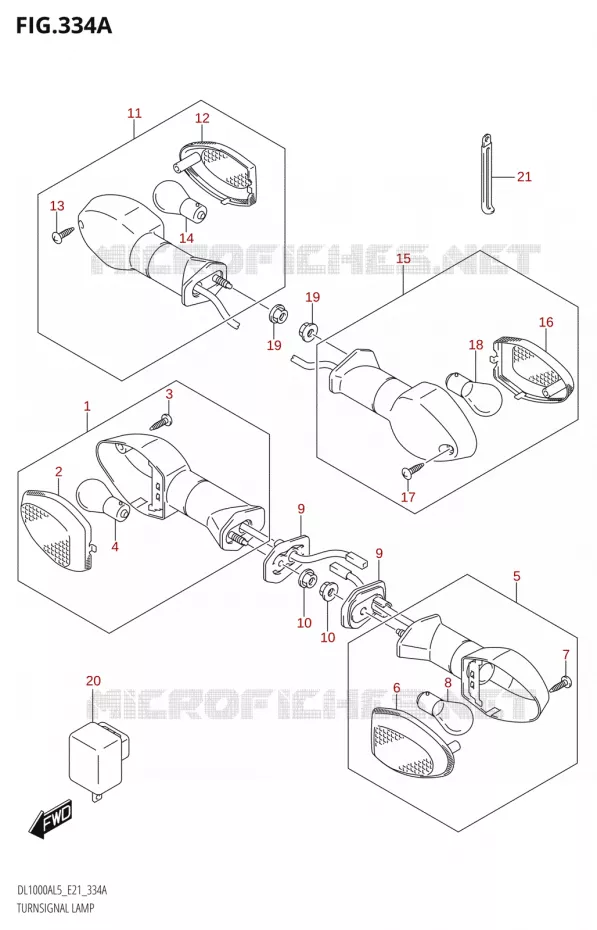

INDICATORS Suzuki MOTO 1000 V-STROM 2015 DL1000A L5 (E21)
1
2
3
4
5
6
7
8
9
9
10
10
11
12
13
14
15
16
17
18
19
19
20
21
1
LAMP ASSY, FR TURNSIGNAL RH
LAMP ASSY, FRONT TURNSIGNAL RH

35601-08JA0-000   3560108JA0000

3560108JA0000

Unit Price

2
LENS
.LENS, RH

35612-08JA0-000   3561208JA0000

3561208JA0000

Unit Price

3
.SCREW

03211-0414B-000   032110414B000

032110414B000

Unit Price

4
BULB(12V55W/H7/PX26D/PHILIPS)
.BULB(12V21W)

09471-12186-000   0947112186000

0947112186000

Unit Price

5
LAMP ASSY, FR TURNSIGNAL LH
LAMP ASSY, FRONT TURNSIGNAL LH

35602-08JA0-000   3560208JA0000

3560208JA0000

Unit Price

6
LENS
.LENS, LH

35632-08JA0-000   3563208JA0000

3563208JA0000

Unit Price

7
.SCREW

03211-0414B-000   032110414B000

032110414B000

Unit Price

8
BULB(12V55W/H7/PX26D/PHILIPS)
.BULB(12V21W)

09471-12186-000   0947112186000

0947112186000

Unit Price

9
PLATE, FR TURNSIGNAL
PLATE, FRONT TURNSIGNAL

35629-18G00-000   3562918G00000

3562918G00000

Unit Price

10
NUT
NUT

08316-1005A-000   083161005A000

083161005A000

Unit Price

11
LAMP ASSY, RR TURNSIGNAL, R
LAMP ASSY, RR TURNSIGNAL RH

35603-08JA0-000   3560308JA0000

3560308JA0000

Unit Price

12
LENS
.LENS, LH

35632-08JA0-000   3563208JA0000

3563208JA0000

Unit Price

13
.SCREW

03211-0414B-000   032110414B000

032110414B000

Unit Price

14
BULB(12V55W/H7/PX26D/PHILIPS)
.BULB(12V21W)

09471-12186-000   0947112186000

0947112186000

Unit Price

15
LAMP ASSY, RR TURNSIGNAL, L
LAMP ASSY, RR TURNSIGNAL LH

35604-08JA0-000   3560408JA0000

3560408JA0000

Unit Price

16
LENS
.LENS, RH

35612-08JA0-000   3561208JA0000

3561208JA0000

Unit Price

17
.SCREW

03211-0414B-000   032110414B000

032110414B000

Unit Price

18
BULB(12V55W/H7/PX26D/PHILIPS)
.BULB(12V21W)

09471-12186-000   0947112186000

0947112186000

Unit Price

19
NUT
NUT

08316-1005A-000   083161005A000

083161005A000

Unit Price

20
RELAYASSY,TURN
RELAYASSY, TURN

38610-06F00-000  

38610-06F01-000
 3861006F00000

Unit Price

21
CLAMP(L:65)
CLAMP(L:65)

09404-06429-000  

09404-06039-000
 0940406429000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the INDICATORS of your Suzuki V-STROM 1000 ABS of V-STROM. Let us know if you have any questions.
