Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

LEVERS - HANDGRIPS0UC,DL1050WC)

FRONT FORK FOR SUZUKI V-STROM 1050 2021

STEERING COLUMN

Item numbers

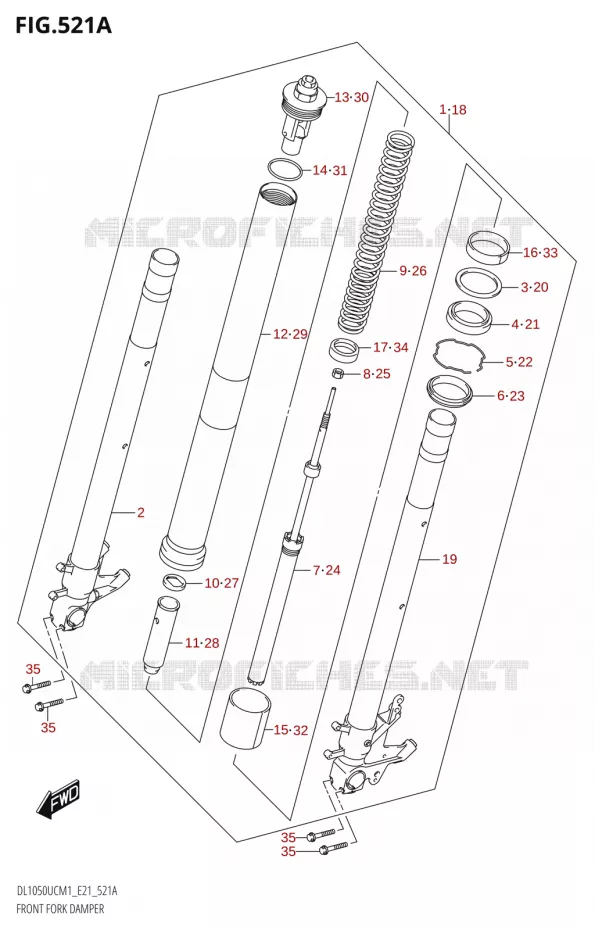

FRONT FORK Suzuki MOTO 1050 V-STROM 2021 DL1050UC M1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
35
35
35
1
DAMPER ASSY RH

51103-06L00-000   5110306L00000

5110306L00000

Unit Price

2
TUBE, INNER, R

51110-31J20-000  

51110-31J21-000
 5111031J20000

Unit Price

3
.WASHER
.WASHER

51158-14200-000   5115814200000

5115814200000

Unit Price

4
SEAL, OIL
.OIL SEAL

51153-44G00-000   5115344G00000

5115344G00000

Unit Price

5
.RING,STOPPER
.RING, STOPPER

51156-14200-000   5115614200000

5115614200000

Unit Price

6
.SEAL,DUST
.SEAL, DUST

51173-02FA0-000   5117302FA0000

5117302FA0000

Unit Price

7
.CYLINDER

51146-06L00-000   5114606L00000

5114606L00000

Unit Price

8
.NUT, ROD

51352-13A60-000   5135213A60000

5135213A60000

Unit Price

9
.SPRING

51171-31J00-000   5117131J00000

5117131J00000

Unit Price

10
WASHER
.GUIDE, SPRING

51158-40F30-000   5115840F30000

5115840F30000

Unit Price

11
.SPACER, SPRING

51176-48G10-000   5117648G10000

5117648G10000

Unit Price

12
.TUBE, OUTER

51131-31J30-000   5113131J30000

5113131J30000

Unit Price

13
.CAP

51351-31J30-000   5135131J30000

5135131J30000

Unit Price

14
..O RING

62278-14100-000   6227814100000

6227814100000

Unit Price

15
.PISTON

51112-31J00-000   5111231J00000

5111231J00000

Unit Price

16
.METAL, SLIDE

51152-31J00-000   5115231J00000

5115231J00000

Unit Price

17
.SEAT, SPRING

51178-31J00-000   5117831J00000

5117831J00000

Unit Price

18
DAMPER ASSY LH

51104-06L00-000   5110406L00000

5110406L00000

Unit Price

19
TUBE, INNER, L

51120-31J20-000  

51120-31J21-000
 5112031J20000

Unit Price

20
.WASHER
.WASHER

51158-14200-000   5115814200000

5115814200000

Unit Price

21
SEAL, OIL
.OIL SEAL

51153-44G00-000   5115344G00000

5115344G00000

Unit Price

22
.RING,STOPPER
.RING, STOPPER

51156-14200-000   5115614200000

5115614200000

Unit Price

23
.SEAL,DUST
.SEAL, DUST

51173-02FA0-000   5117302FA0000

5117302FA0000

Unit Price

24
.CYLINDER

51146-06L00-000   5114606L00000

5114606L00000

Unit Price

25
.NUT, ROD

51352-13A60-000   5135213A60000

5135213A60000

Unit Price

26
.SPRING

51171-31J00-000   5117131J00000

5117131J00000

Unit Price

27
WASHER
.GUIDE, SPRING

51158-40F30-000   5115840F30000

5115840F30000

Unit Price

28
.SPACER, SPRING

51176-48G10-000   5117648G10000

5117648G10000

Unit Price

29
.TUBE, OUTER

51131-31J30-000   5113131J30000

5113131J30000

Unit Price

30
.CAP

51351-31J30-000   5135131J30000

5135131J30000

Unit Price

31
..O RING

62278-14100-000   6227814100000

6227814100000

Unit Price

32
.PISTON

51112-31J00-000   5111231J00000

5111231J00000

Unit Price

33
.METAL, SLIDE

51152-31J00-000   5115231J00000

5115231J00000

Unit Price

34
.SEAT, SPRING

51178-31J00-000   5117831J00000

5117831J00000

Unit Price

35
BOLT

51166-24F60-000   5116624F60000

5116624F60000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FORK of your Suzuki V-STROM 1050 of V-STROM. Let us know if you have any questions.

Genuine parts for Suzuki 1050 V-STROM 2021

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 1050 V-STROM 2021

Select your Suzuki 2021 model

1050 V-STROM 2021 DL1050UC M1

V-STROM 1050

Suzuki V-STROM

Displacement: 1050 cc
Year: 2021
Model code DL1050UC M1
Color: Pearl Brilliant White - Glass Blaze Orange (B1F) / Champion Yellow No.2 (YU1) / Glass Sparkle Black (YVB) / Metallic Oort Gray (BT1)
