FINAL GEAR

KICK STARTER FOR SUZUKI ADDRESS 110 2019

STAND

Item numbers

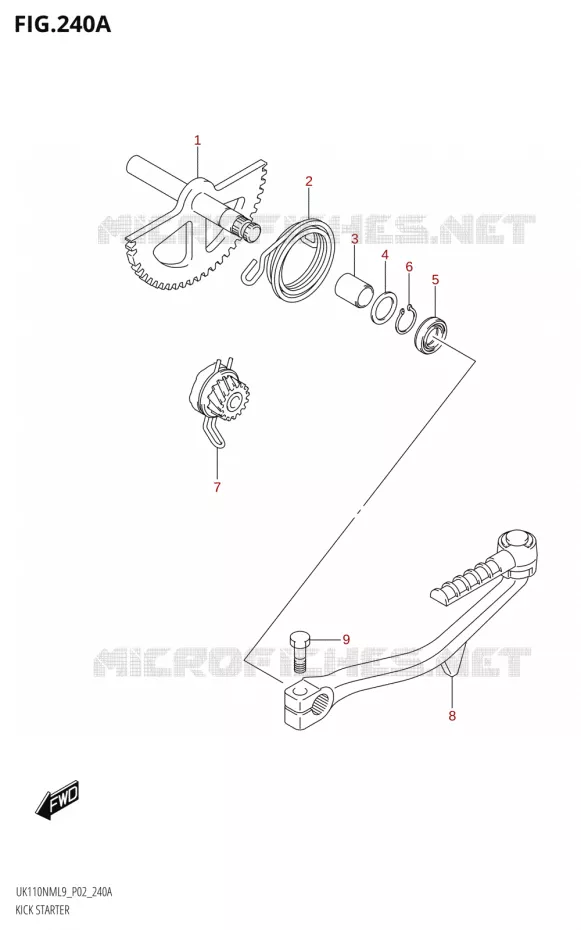

KICK STARTER Suzuki SCOOTER 110 ADDRESS 2019 UK110NM L9 (P02)
1
2
3
4
5
5
6
7
8
9
1
SHAFT, KICK STARTER (NT:56)

26210-09J10-000   2621009J10000

2621009J10000
Not available
2
SPRING, KICK STARTER SHAFT

26212-46G00-000   2621246G00000

2621246G00000
Not available
3
BUSH, KICK SHAFT

26213-09J00-000   2621309J00000

2621309J00000
Not available
4
WASHER (14.5X22X0.8)

09160-14053-000   0916014053000

0916014053000
Not available
5
OIL SEAL (14X24X6)

09283-14009-000   0928314009000

0928314009000
Not available
5
OIL SEAL (14X24X6)

09283-14016-000   0928314016000

0928314016000
Not available
6
CIRCLIP

08331-31149-000   0833131149000

0833131149000
Not available
7
GEAR ASSY, KICK STARTER DRIVEN (NT:9)

26200-09J10-000   2620009J10000

2620009J10000
Not available
8
LEVER ASSY, KICK STARTER

26300-40J00-000   2630040J00000

2630040J00000
Not available
9
BOLT, KICK STARTER LEVER

26314-33G20-000   2631433G20000

2631433G20000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the KICK STARTER of your Suzuki ADDRESS 110 of ADDRESS. Let us know if you have any questions.
