THROTTLE BODY FOR SUZUKI ADDRESS 110 2019

AIR FILTER

Item numbers

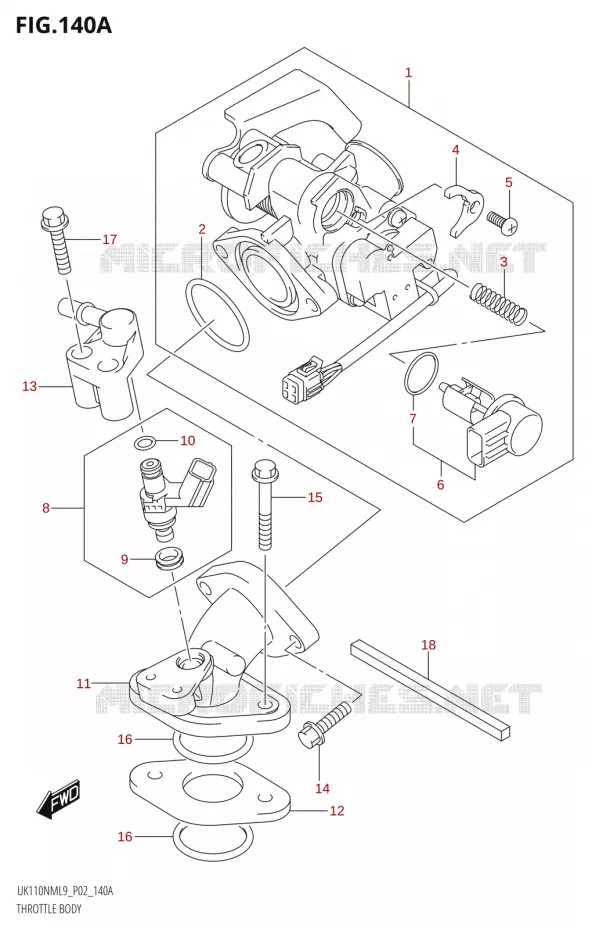

THROTTLE BODY Suzuki SCOOTER 110 ADDRESS 2019 UK110NM L9 (P02)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
17
18
1
BODY ASSY, THROTTLE

13400-39JD1-000   1340039JD1000

1340039JD1000
Not available
2
.O RING

13295-16HA0-000   1329516HA0000

1329516HA0000
Not available
3
SPRING
.COMPRESSION SPRING

13417-09JA0-000  

1341709JA0000
Not available
4
.PLATE

13421-09JA0-000   1342109JA0000

1342109JA0000
Not available
5
.SCREW

13602-06128-000   1360206128000

1360206128000

Unit Price

6
.STEPPING MOTOR

18117-09JA0-000   1811709JA0000

1811709JA0000
Not available
7
..O RING

13438-09JA0-000  

1343809JA0000
Not available
8
INJECTOR ASSY, FUEL

15710-39JA0-000   1571039JA0000

1571039JA0000
Not available
9
.RING, SEAL

15722-21H00-000   1572221H00000

1572221H00000

Unit Price

10
.O RING

15721-26J00-000   1572126J00000

1572126J00000

Unit Price

11
PIPE, INTAKE

13110-39JB0-000   1311039JB0000

1311039JB0000
Not available
12
INSULATOR, INTAKE PIPE

13128-40JA0-000   1312840JA0000

1312840JA0000
Not available
13
JOINT, FUEL HOSE

15830-39JA0-000   1583039JA0000

1583039JA0000
Not available
14
BOLT

01547-0620A-000   015470620A000

015470620A000

Unit Price

15
BOLT

01547-0625A-000  

01547-0625B-000
 015470625A000

Unit Price

16
O RING (D:2.4, ID:25.7)

09280-26011-000   0928026011000

0928026011000
Not available
17
BOLT

01547-0635A-000   015470635A000

015470635A000

Unit Price

18
CUSHION, INTAKE PIPE

13112-39JB0-000   1311239JB0000

1311239JB0000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the THROTTLE BODY of your Suzuki ADDRESS 110 of ADDRESS. Let us know if you have any questions.

Genuine parts for Suzuki 110 ADDRESS 2019

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 110 ADDRESS 2019

Select your Suzuki 2019 model

110 ADDRESS 2019 UK110NM L9 (P02)

ADDRESS 110

Suzuki ADDRESS

Displacement: 110 cc
Year: 2019
Model code UK110NM L9 (P02)
