TAIL LIGHT

WIRING HARNESS FOR SUZUKI UG 110 2000

* CATALOG PREFACE *

Item numbers

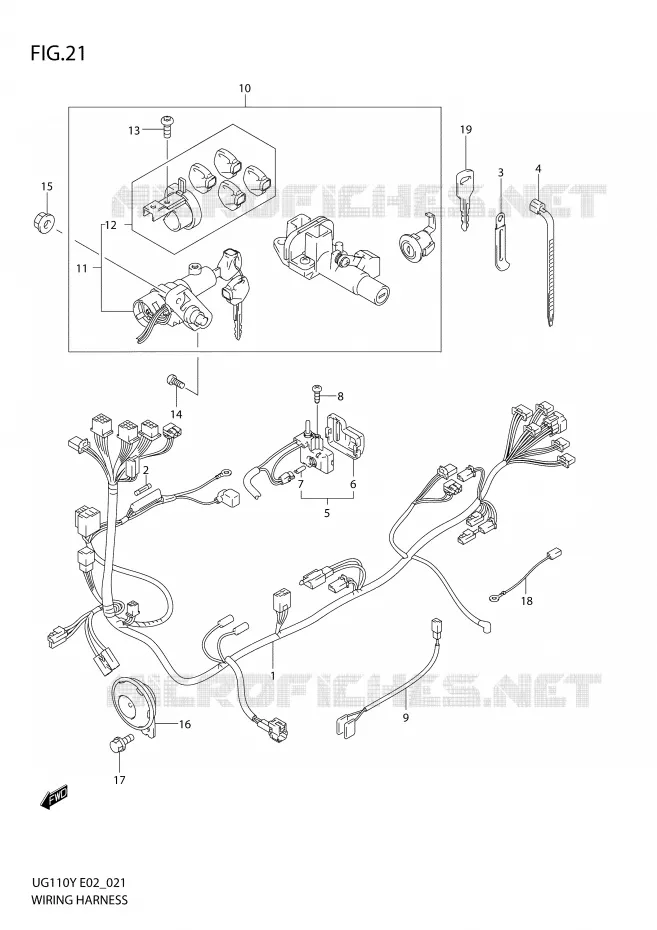

WIRING HARNESS Suzuki SCOOTER 110 UG 2000 UG110Y(E2)
1
2
3
4
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
HARNESS, WIRING

36610-16F20-000   3661016F20000

3661016F20000
Not available
2
FUSE (10A)

09481-10001-000  

0948110001000
Not available
3
CLAMP(L:65)
CLAMP(L:65)

09404-06432-000  

09404-06039-000
 0940406432000

Unit Price

4
BAND,WIRING HARNESS<br />CLAMP (L:125)
BAND, WIRING HARNESS
CLAMP (L:125)

09407-14403-000   0940714403000

0940714403000

Unit Price

4
CLAMP,WIRING HARNESS<br />CLAMP (L:165)
CLAMP, WIRING HARNESS
CLAMP (L:165)

09407-18402-000   0940718402000

0940718402000

Unit Price

4
CLAMP<br />CLAMP (L:235)
CLAMP
CLAMP (L:235)

09407-25401-000   0940725401000

0940725401000

Unit Price

5
LAMP ASSY, TRANK BOX (L:500)

36210-39C11-000   3621039C11000

3621039C11000
Not available
6
LENS

36212-39C00-000   3621239C00000

3621239C00000
Not available
7
BULB(12V27/8W)
BULB (13.5V, 2W, TOSHIBA, A7427)

09471-12118-000  

0947112118000
Not available
8
SCREW

03541-04163-000  

03541-0416A-000
 0354104163000

Unit Price

9
WIRE, IGNITION COIL LEAD

36852-16F00-000   3685216F00000

3685216F00000
Not available
10
LOCK SET

37000-16811-000   3700016811000

3700016811000
Not available
11
LOCK ASSY, STEERING

37100-16F00-000   3710016F00000

3710016F00000
Not available
12
SHUTTER, STEERING LOCK

37155-43EC0-000   3715543EC0000

3715543EC0000
Not available
13
TORQUE BOLT (5X8)

37159-43E00-000   3715943E00000

3715943E00000
Not available
14
SCREW (6X20)
SCREW (6X20)

09139-06048-000   0913906048000

0913906048000

Unit Price

15
NUT 6MM

08316-10063-000  

08319-31067-000
 0831610063000

Unit Price

16
HORN ASSY

38500-16F00-000   3850016F00000

3850016F00000
Not available
17
BOLT

01550-06123-000  

01550-0612B-000
 0155006123000

Unit Price

18
WIRE, ENGINE EARTH

33860-43E00-000   3386043E00000

3386043E00000
Not available
19
KEY, BLANK

37146-14F00-000   3714614F00000

3714614F00000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the WIRING HARNESS of your Suzuki of UG. Let us know if you have any questions.

Genuine parts for Suzuki 110 UG 2000
