CYLINDER

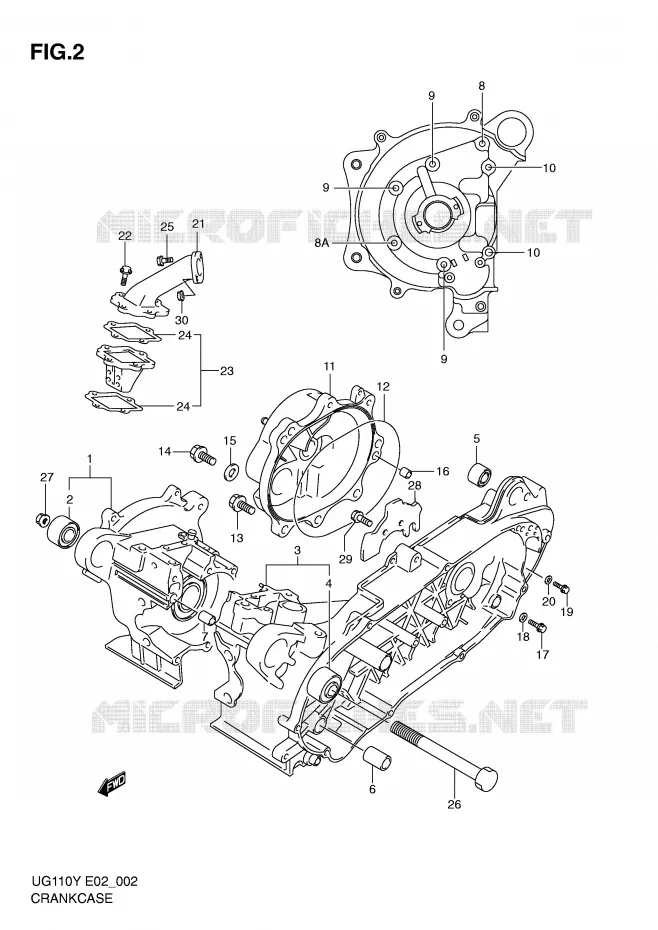

CRANKCASE FOR SUZUKI UG 110 2000

LEFT CRANKCASE COVER

Item numbers

CRANKCASE SET, RH

11310-16850-000 1131016850000

Not available

BUSH

09319-12059-000 0931912059000

Not available

CRANKCASE SET, LH

11320-16852-000 1132016852000

Not available

BUSH

09319-12059-000 0931912059000

Not available

BUSH(10.2X22.3X20)
BUSH

09319-10032-000 0931910032000

$12,97

Unit Price

BUSH

09300-08016-000 0930008016000

$5,97

Unit Price

PIN 11X16
PIN

04211-11169-000 0421111169000

$2,97

Unit Price

SCREW

02112-06753-000

02112-0675B-000

$4,97

Unit Price

SCREW

02112-06553-000

02112-0655B-000

$4,97

Unit Price

SCREW

02112-06453-000

02112-0645B-000

$3,97

Unit Price

SCREW

02112-06853-000

02112-0685B-000

$5,97

Unit Price

GEAR BOX COVER SET

11430-16840-000 1143016840000

Not available

O RING (D:2.4, ID:161)

09280-00029-000 0928000029000

$68,97

Unit Price

BOLT

01550-08303-000

01550-0830B-000

$4,97

Unit Price

BOLT (8X30)

09103-08153-000 0910308153000

$3,97

Unit Price

GASKET

09168-08020-000 0916808020000

Not available

PIN 11X16
PIN

04211-11169-000 0421111169000

$2,97

Unit Price

BOLT

01550-08123-000

01550-0812B-000

$4,97

Unit Price

GASKET, 8.2X14X1

09168-08008-000

09168-08016-000

$2,97

Unit Price

BOLT

01550-08123-000

01550-0812B-000

$4,97

Unit Price

GASKET, 8.2X14X1

09168-08008-000

09168-08016-000

$2,97

Unit Price

PIPE, INTAKE

13111-16F10-000 1311116F10000

Not available

BOLT

01550-06203-000

01550-0620B-000

$4,97

Unit Price

SCREW, TORX (6X20))

09139-06034-000 0913906034000

Not available

VALVE ASSY, REED

13150-43E00-000 1315043E00000

Not available

GASKET, REED VALVE

13156-43E01-000 1315643E01000

Not available

01550-0616A
BOLT

01550-06163-000

Not available

BOLT (12X204)

09103-12046-000 0910312046000

Not available

NUT

08310-00123-000

08310-0012A-000

$3,97

Unit Price

PLATE, GEAR BOX

11323-06F11-000 1132306F11000

Not available

SCREW

02112-36123-000

02112-3612A-000

$3,97

Unit Price

NUT 6MM

08316-10063-000

08319-31067-000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKCASE of your Suzuki of UG. Let us know if you have any questions.
