HEADLIGHT

INDICATORS FOR SUZUKI UG 110 2001

TAIL LIGHT

Item numbers

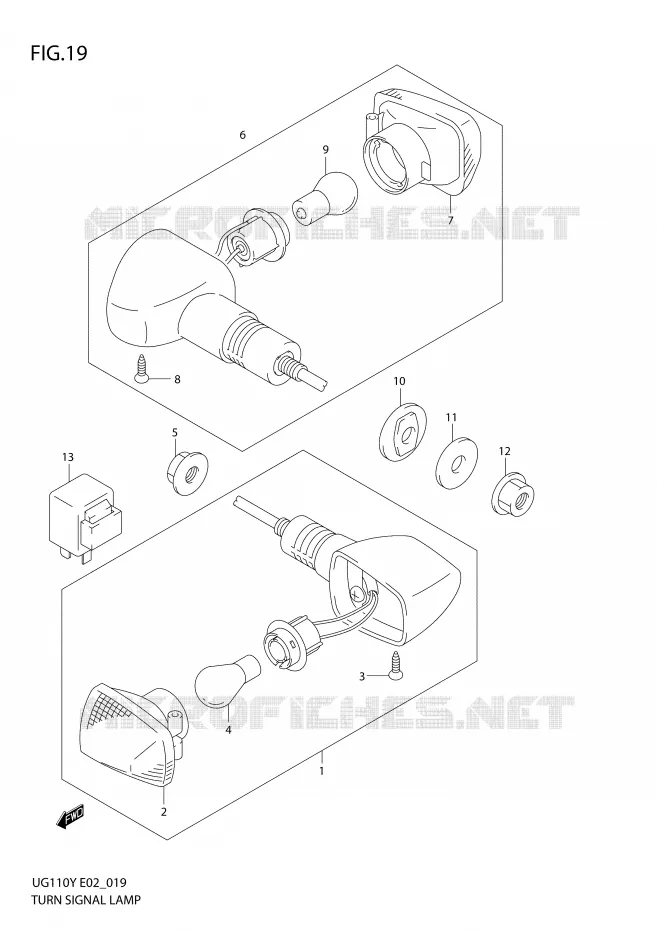

INDICATORS Suzuki SCOOTER 110 UG 2001 UG110K1(E2)
1
1
2
3
4
5
6
6
7
8
9
10
11
12
13
1
LAMP ASSY, FRONT TURNSIGNAL RH

35601-03F30-000   3560103F30000

3560103F30000
Not available
1
LAMP ASSY, FRONT TURNSIGNAL LH

35602-03F30-000   3560203F30000

3560203F30000
Not available
2
LAMP UNIT
LAMP UNIT

35610-33E00-000   3561033E00000

3561033E00000

Unit Price

3
SCREW

03242-04123-000  

03242-0412B-000
 0324204123000

Unit Price

4
BULB(12V60/55W,H4)<br />BULB (12V,21W)
BULB(12V60/55W, H4)
BULB (12V, 21W)

09471-12045-000   0947112045000

0947112045000

Unit Price

5
NUT

08316-10103-000  

08316-1010B-000
 0831610103000

Unit Price

6
LAMP ASSY,RR TURNSIGNAL,L<br />LAMP ASSY, REAR TURNSIGNAL LH
LAMP ASSY, RR TURNSIGNAL, L
LAMP ASSY, REAR TURNSIGNAL LH

35604-33E30-000   3560433E30000

3560433E30000

Unit Price

6
LAMP ASSY,RR TURNSIGNAL,R<br />LAMP ASSY, REAR TURNSIGNAL RH
LAMP ASSY, RR TURNSIGNAL, R
LAMP ASSY, REAR TURNSIGNAL RH

35603-33E30-000   3560333E30000

3560333E30000

Unit Price

7
LAMP UNIT
LAMP UNIT

35610-33E00-000   3561033E00000

3561033E00000

Unit Price

8
SCREW

03242-04123-000  

03242-0412B-000
 0324204123000

Unit Price

9
BULB(12V60/55W,H4)<br />BULB (12V,21W)
BULB(12V60/55W, H4)
BULB (12V, 21W)

09471-12045-000   0947112045000

0947112045000

Unit Price

10
SPACER,RR TURNSIGNAL<br />SPACER, REAR TURNSIGNAL LAMP
SPACER, RR TURNSIGNAL
SPACER, REAR TURNSIGNAL LAMP

35695-17C00-000   3569517C00000

3569517C00000

Unit Price

11
WASHER<br />WASHER (10.5X30X2.30)
WASHER
WASHER (10.5X30X2.30)

09160-10501-000   0916010501000

0916010501000

Unit Price

12
NUT

08316-10103-000  

08316-1010B-000
 0831610103000

Unit Price

13
RELAYASSY,TURN
RELAYASSY, TURN

38610-06F00-000  

38610-06F01-000
 3861006F00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the INDICATORS of your Suzuki of UG. Let us know if you have any questions.

Genuine parts for Suzuki 110 UG 2001

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 110 UG 2001

Select your Suzuki 2001 model

110 UG 2001 UG110K1(E2)

Suzuki UG

Displacement: 110 cc
Year: 2001
Model code UG110K1(E2)
