FRONT FORK FOR SUZUKI UG 110 2001

STEERING STEM

Item numbers

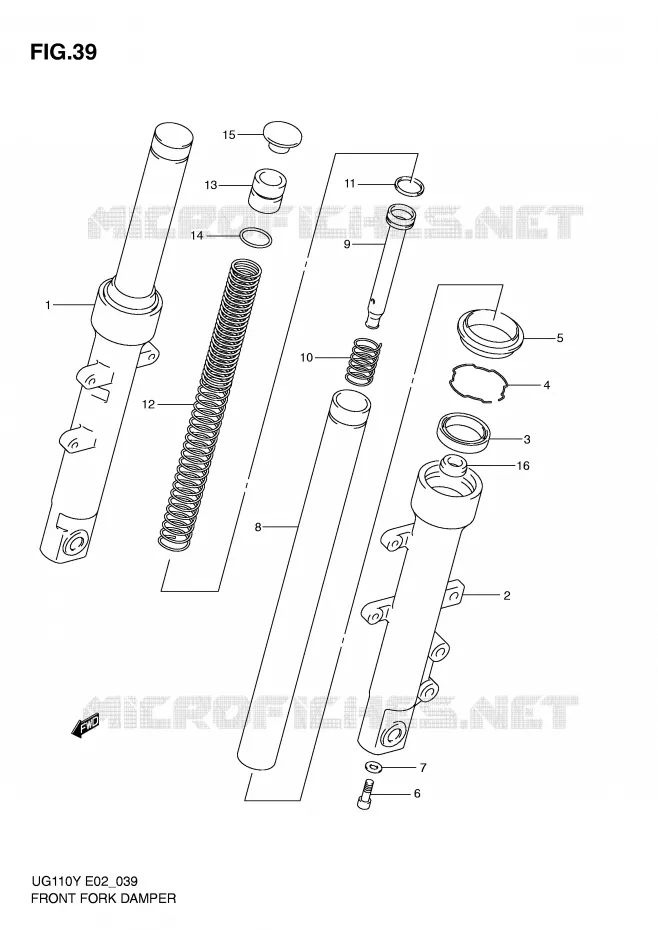

FRONT FORK Suzuki SCOOTER 110 UG 2001 UG110K1(E2)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
TUBE, OUTER RH

51130-16F00-000   5113016F00000

5113016F00000
Not available
2
TUBE, OUTER LH

51140-16F00-000   5114016F00000

5114016F00000
Not available
3
SEAL, OIL

51153-16F00-000   5115316F00000

5115316F00000

Unit Price

4
RING, SNAP

51156-39260-000   5115639260000

5115639260000
Not available
5
SEAL, DUST

51173-16F00-000   5117316F00000

5117316F00000
Not available
6
BOLT

07130-08203-000  

07130-0820B-000
 0713008203000

Unit Price

7
GASKET
GASKET

51148-36011-000   5114836011000

5114836011000

Unit Price

8
TUBE, INNER

51110-16F00-000   5111016F00000

5111016F00000
Not available
9
CYLINDER

51146-16F00-000   5114616F00000

5114616F00000
Not available
10
SPRING, REBOUND

51177-36A00-000   5117736A00000

5117736A00000
Not available
11
RING, PISTON

51196-16F00-000   5119616F00000

5119616F00000
Not available
12
SPRING, FRONT

51171-16F00-000   5117116F00000

5117116F00000
Not available
13
CAP

51351-16F00-000   5135116F00000

5135116F00000
Not available
14
O RING

51117-16F00-000   5111716F00000

5111716F00000
Not available
15
CAP

51189-29400-000   5118929400000

5118929400000
Not available
16
CUSHION, RUBBER

51292-16F00-000   5129216F00000

5129216F00000
Not available
99x
DAMPER ASSY, FRONT FORK RH

51103-16F00-000   5110316F00000

5110316F00000
Not available
99x
DAMPER ASSY, FRONT FORK LH

51104-16F00-000   5110416F00000

5110416F00000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FORK of your Suzuki of UG. Let us know if you have any questions.
