STARTER MOTOR

GENERATOR FOR SUZUKI GSX-E 1100 1985

BATTERY

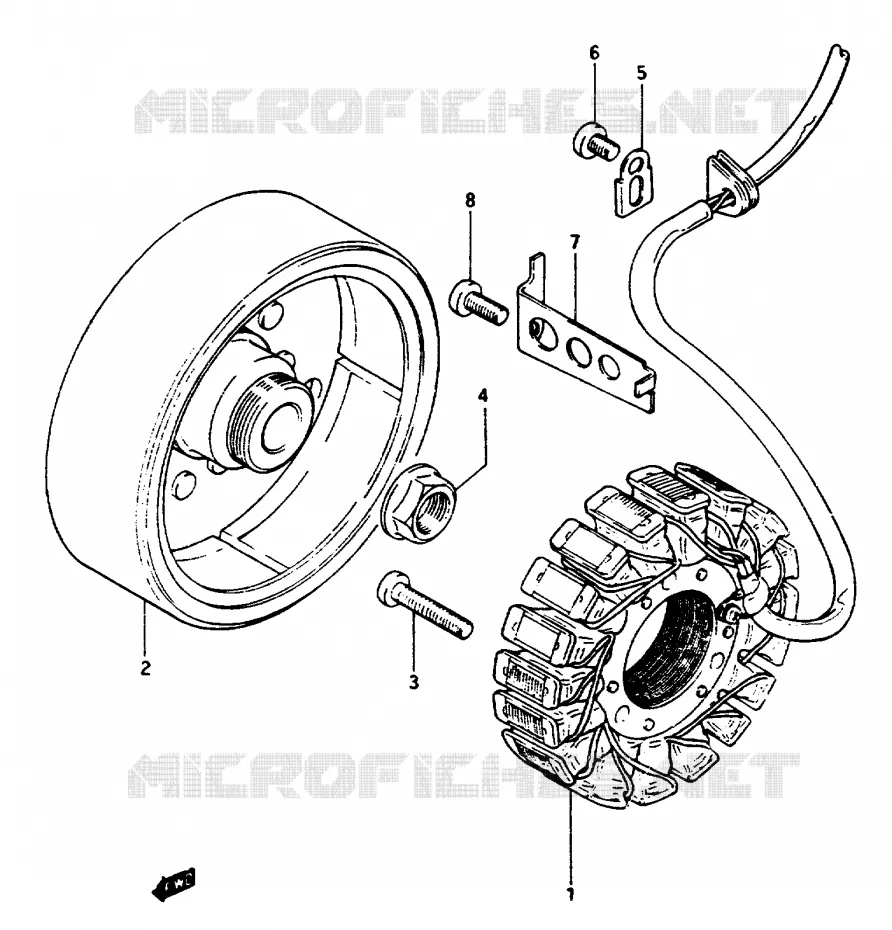

GENERATOR Suzuki MOTO 1100 GSX-E 1985 GSX1100EEF(E/F/G)
1
STATOR ASSY

31401-00A00-000   3140100A00000

3140100A00000
Not available
2
DISCONTINUE
ROTOR

31402-49330-000   3140249330000

3140249330000
Not available
3
SCREW

02112-06308-000  

02112-06307-000
 0211206308000

Unit Price

4
NUT,GENERATOR ROTOR<br />NUT
NUT, GENERATOR ROTOR
NUT

31792-49200-000   3179249200000

3179249200000

Unit Price

5
CLAMP,GENERATOR LEAD WIRE<br />CLAMP
CLAMP, GENERATOR LEAD WIRE
CLAMP

31497-45000-000   3149745000000

3149745000000

Unit Price

6
SCREW, INTAKE PORT

02112-05088-000   0211205088000

0211205088000
Not available
7
CLAMP, GENERATOR LEAD WIRE
CLAMP

31498-45000-000   3149845000000

3149845000000

Unit Price

8
SCREW FIG.28 (E-5) : GSX1100ESD

02112-06108-000   0211206108000

0211206108000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the GENERATOR of your Suzuki of GSX-E. Let us know if you have any questions.
