Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

SPEEDOMETER (GSX100EE / EF / EG)

SPEEDOMETER FOR SUZUKI GSX-E 1100 1985

HEADLIGHT (GSX1100EE / EF / EG)

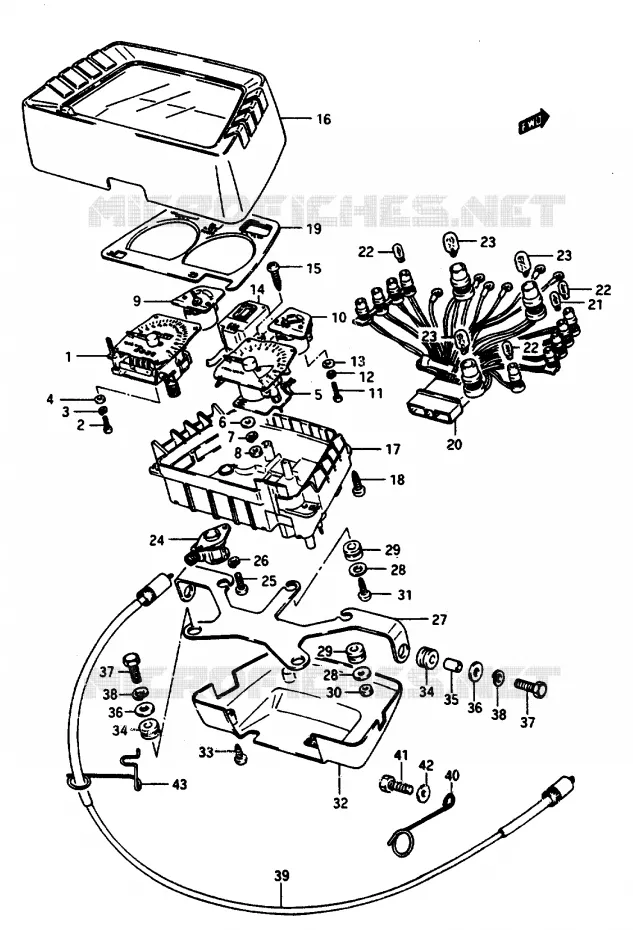

SPEEDOMETER Suzuki MOTO 1100 GSX-E 1985 GSX1100EEF(E/F/G)
1
SPEEDOMETER (KILO)

34120-00A11-000   3412000A11000

3412000A11000
Not available
1
SPEEDOMETER (MILE/KILO)

34120-00A21-000   3412000A21000

3412000A21000
Not available
1
SPEEDOMETER (KILO)

34120-00A51-000   3412000A51000

3412000A51000
Not available
2
SCREW

02112-03106-000  

02112-0310A-000
 0211203106000

Unit Price

3
WASHER, LOCK

08321-21036-000  

08321-2103B-000
 0832121036000

Unit Price

4
WASHER

08322-21036-000   0832221036000

0832221036000
Not available
5
TACHOMETER

34220-00A11-000   3422000A11000

3422000A11000
Not available
5
TACHOMETER

34220-00A31-000   3422000A31000

3422000A31000
Not available
6
LOCK WASHER

08322-21048-000   0832221048000

0832221048000
Not available
7
WASHER, LOCK

08321-31046-000  

08321-0104A-000
 0832131046000

Unit Price

8
NUT

08310-22048-000  

08310-00047-000
 0831022048000

Unit Price

9
FUELMETER

34320-00A11-000   3432000A11000

3432000A11000
Not available
10
OIL TEMPERATURE METER (DEGREES C)

34730-00A11-000   3473000A11000

3473000A11000
Not available
10
OIL TEMPERATURE (DEGREES F)

34730-00A31-000   3473000A31000

3473000A31000
Not available
11
SCREW

02112-03126-000  

02112-03123-000
 0211203126000

Unit Price

12
WASHER, LOCK

08321-21036-000  

08321-2103B-000
 0832121036000

Unit Price

13
WASHER

08322-21036-000   0832221036000

0832221036000
Not available
14
INDICATOR, GEAR POSITION

36450-49910-000   3645049910000

3645049910000
Not available
15
03212-04103
SCREW

03212-04109-000  

0321204109000
Not available
16
HOOD, METER

34150-00A40-000   3415000A40000

3415000A40000
Not available
16
HOOD, METER

34150-00A70-000   3415000A70000

3415000A70000
Not available
16
HOOD SET, METER

34150-10840-000   3415010840000

3415010840000
Not available
16
HOOD SET, METER

34150-10850-000   3415010850000

3415010850000
Not available
17
CASE, METER

34111-00A10-000   3411100A10000

3411100A10000
Not available
18
03212-04103
SCREW

03212-04109-000  

0321204109000
Not available
19
PLATE, METER WINDOW (GS1150ESF/EEF/EFG)

34153-00A10-000   3415300A10000

3415300A10000
Not available
20
SOCKET, METER

34170-00A50-000   3417000A50000

3417000A50000
Not available
21
BULB(12V3W,T6.5)<br />BULB (12V,1.7W)
BULB(12V3W, T6.5)
BULB (12V, 1.7W)

09471-12100-000  

0947112100000
Not available
22
BULB(12V3.4W G30)<br />BULB (12V,3W)
BULB(12V3.4W G30)
BULB (12V, 3W)

09471-12085-000   0947112085000

0947112085000

Unit Price

23
BULB(12V3W, WB371, T7)
BULB (12V, 3.4W)

09471-12082-000  

0947112082000
Not available
24
GEAR BOX, SPEEDOMETER
BOX, SPEEDOMETER GEAR

34131-49300-000   3413149300000

3413149300000

Unit Price

25
SCREW

02112-04106-000  

02112-0410A-000
 0211204106000

Unit Price

26
WASHER, LOCK

08321-21046-000  

08321-0104A-000
 0832121046000

Unit Price

27
BRACKET, METER

34950-10A10-000   3495010A10000

3495010A10000
Not available
27
DISCONTINUE
BRACKET, METER

34950-10A11-000   3495010A11000

3495010A11000
Not available
28
WASHER(4.5X16X1.2)

34181-49300-000  

09160-04014-000
 3418149300000

Unit Price

29
CUSHION
CUSHION

34955-28010-000   3495528010000

3495528010000

Unit Price

30
NUT

08310-22048-000  

08310-00047-000
 0831022048000

Unit Price

31
SCREW

03142-04169-000  

03141-0416A-000
 0314204169000

Unit Price

32
COVER, LOWER

34193-10A10-000   3419310A10000

3419310A10000
Not available
33
03112-04123
SCREW

03112-04125-000  

0311204125000
Not available
34
CUSHION
CUSHION

09320-09016-000   0932009016000

0932009016000

Unit Price

35
SPACER, 6.5X10X7

09180-06011-000  

09180-06283-000
 0918006011000

Unit Price

36
WASHER(6.5X18X1.6)

09160-06006-000  

09160-06084-000
 0916006006000

Unit Price

37
BOLT

01107-06206-000  

01500-06203-000
 0110706206000

Unit Price

38
08321-0106A
.WASHERLOCK6.1X12X1.2

08321-21066-000  

0832121066000
Not available
39
CABLE, SPEEDOMETER

34910-10A01-000   3491010A01000

3491010A01000
Not available
40
CLAMP,SPEEDOMETER CABLE<br />GUIDE, METER CABLE
CLAMP, SPEEDOMETER CABLE
GUIDE, METER CABLE

34938-45100-000   3493845100000

3493845100000

Unit Price

41
BOLT, FENDER REAR

01107-06168-000   0110706168000

0110706168000
Not available
42
WASHER

08322-21068-000   0832221068000

0832221068000
Not available
43
GUIDE, METER CABLE

34938-00A10-000   3493800A10000

3493800A10000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SPEEDOMETER of your Suzuki of GSX-E. Let us know if you have any questions.
