CARBURETOR FOR SUZUKI GSX-G 1100 1993

CARBURETOR FITTINGS

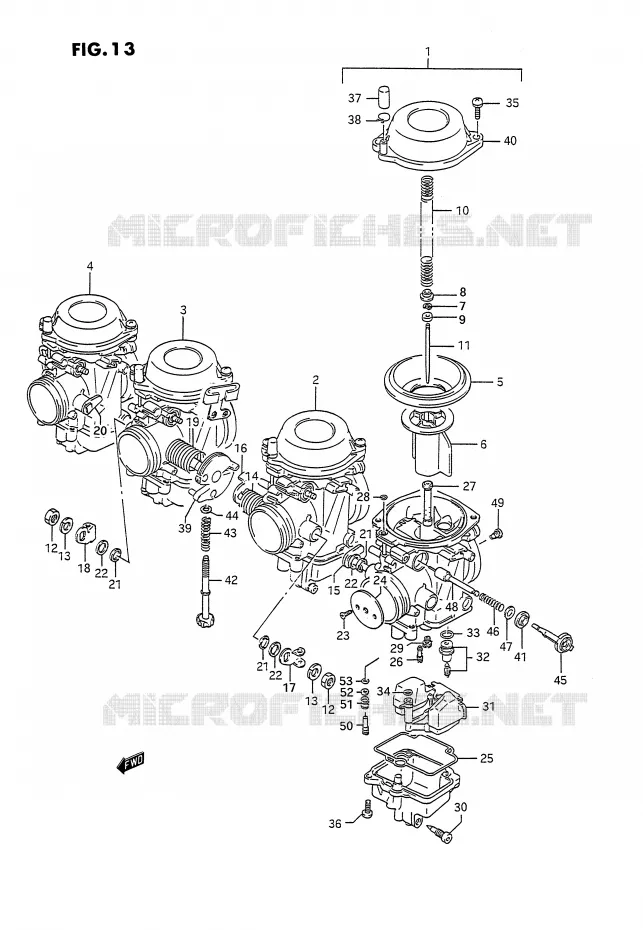

CARBURETOR Suzuki MOTO 1100 GSX-G 1993 GSX1100GP(E2)
1
CARBURETOR ASSY, LH

13201-26D00-000   1320126D00000

1320126D00000
Not available
1
CARBURETOR ASSY, LH

13201-26D30-000   1320126D30000

1320126D30000
Not available
1
CARBURETOR ASSY, LH

13201-26D50-000   1320126D50000

1320126D50000
Not available
1
CARBURETOR ASSY, LH

13201-26D60-000   1320126D60000

1320126D60000
Not available
1
CARBURETOR ASSY, LH

13201-26D70-000   1320126D70000

1320126D70000
Not available
1
CARBURETOR ASSY, LH

13201-26D80-000   1320126D80000

1320126D80000
Not available
2
CARBURETOR ASSY, ML

13202-26D00-000   1320226D00000

1320226D00000
Not available
2
CARBURETOR ASSY, ML

13202-26D30-000   1320226D30000

1320226D30000
Not available
2
CARBURETOR ASSY, ML

13202-26D50-000   1320226D50000

1320226D50000
Not available
2
CARBURETOR ASSY, ML

13202-26D60-000   1320226D60000

1320226D60000
Not available
2
CARBURETOR ASSY, ML

13202-26D70-000   1320226D70000

1320226D70000
Not available
2
CARBURETOR ASSY, ML

13202-26D80-000   1320226D80000

1320226D80000
Not available
3
CARBURETOR ASSY, MR

13203-26D00-000   1320326D00000

1320326D00000
Not available
3
CARBURETOR ASSY, MR

13203-26D30-000   1320326D30000

1320326D30000
Not available
3
CARBURETOR ASSY, MR

13203-26D50-000   1320326D50000

1320326D50000
Not available
3
CARBURETOR ASSY, MR

13203-26D60-000   1320326D60000

1320326D60000
Not available
3
CARBURETOR ASSY, MR

13203-26D70-000   1320326D70000

1320326D70000
Not available
3
CARBURETOR ASSY, MR

13203-26D80-000   1320326D80000

1320326D80000
Not available
4
CARBURETOR ASSY, RH

13204-26D00-000   1320426D00000

1320426D00000
Not available
4
CARBURETOR ASSY, RH

13204-26D30-000   1320426D30000

1320426D30000
Not available
4
CARBURETOR ASSY, RH

13204-26D50-000   1320426D50000

1320426D50000
Not available
4
CARBURETOR ASSY, RH

13204-26D60-000   1320426D60000

1320426D60000
Not available
4
CARBURETOR ASSY, RH

13204-26D70-000   1320426D70000

1320426D70000
Not available
4
CARBURETOR ASSY, RH

13204-26D80-000   1320426D80000

1320426D80000
Not available
5
DIAPHRAGM
DIAPHRAGM

13507-17C01-000  

13507-17C02-000
 1350717C01000

Unit Price

6
VALVE, PISTON
VALVE, PISTON

13501-17C20-000   1350117C20000

1350117C20000
Not available
7
E RING

13394-01D00-000  

13394-40D20-000
 1339401D00000

Unit Price

8
RING
RING

13382-42A00-000   1338242A00000

1338242A00000

Unit Price

9
RING
RING

13387-47010-000   1338747010000

1338747010000

Unit Price

10
SPRING
SPRING

13417-42A00-000   1341742A00000

1341742A00000

Unit Price

11
NEEDLE, JET (5D55-3)

13383-26D30-000   1338326D30000

1338326D30000
Not available
11
DISCONTINUE
NEEDLE, JET (5D44-2)

13383-40C40-000   1338340C40000

1338340C40000
Not available
12
NUT

08310-00083-000  

08310-0008B-000
 0831000083000

Unit Price

13
WASHER, LOCK

08321-01083-000  

08321-0108B-000
 0832101083000

Unit Price

14
SPRING

13573-26D10-000   1357326D10000

1357326D10000
Not available
15
SHAFT ASSY

13550-17C00-000   1355017C00000

1355017C00000
Not available
16
SHAFT ASSY

13550-26D00-000   1355026D00000

1355026D00000
Not available
17
LEVER

13553-17C00-000   1355317C00000

1355317C00000
Not available
18
LEVER

13553-44B00-000   1355344B00000

1355344B00000
Not available
19
SPRING

13573-26D00-000   1357326D00000

1357326D00000
Not available
20
SHAFT ASSY

13550-17C30-000   1355017C30000

1355017C30000
Not available
21
SEAL
SEAL

13556-44B00-000   1355644B00000

1355644B00000

Unit Price

22
GASKET,THROTTLE SHAFT<br />WASHER
GASKET, THROTTLE SHAFT
WASHER

13557-47070-000   1355747070000

1355747070000

Unit Price

23
SCREW

13604-42A00-000  

13604-44080-000
 1360442A00000

Unit Price

24
DISCONTINUE<br />VALVE, THROTTLE (125)
DISCONTINUE
VALVE, THROTTLE (125)

13551-17C00-000   1355117C00000

1355117C00000
Not available
25
GASKET,FLOAT CAHMBER<br />GASKET, FLOAT CHAMBER
GASKET, FLOAT CAHMBER
GASKET, FLOAT CHAMBER

13258-44B00-000   1325844B00000

1325844B00000

Unit Price

26
JET, PILOT (30)

09492-30010-000   0949230010000

0949230010000

Unit Price

26
JET,PILOT<br />JET, PILOT (37.5)
JET, PILOT
JET, PILOT (37.5)

09492-35010-000   0949235010000

0949235010000

Unit Price

27
JET,NEEDLE<br />JET, NEEDLE (O-8)
JET, NEEDLE
JET, NEEDLE (O-8)

09494-00638-000   0949400638000

0949400638000

Unit Price

27
JET, NEEDLE (O-7)

09494-00733-000   0949400733000

0949400733000
Not available
28
O RING
O RING

13509-17C00-000   1350917C00000

1350917C00000

Unit Price

29
JET, MAIN
JET, MAIN (115)

09491-23011-000   0949123011000

0949123011000

Unit Price

29
JET, MAIN #120
JET, MAIN (120)

09491-24016-000   0949124016000

0949124016000

Unit Price

30
PLUG,DRAIN
PLUG, DRAIN

13247-13A00-000  

13247-02340-000
 1324713A00000

Unit Price

31
DISCONTINUE
FLOAT ASSY

13240-01D00-000   1324001D00000

1324001D00000
Not available
32
VALVE ASSY, NEEDLE

13370-44B00-000  

13370-02D01-000
 1337044B00000

Unit Price

33
O RING
O RING

13374-46710-000   1337446710000

1337446710000

Unit Price

34
O RING, NEEDLE VALVE SEAT

13374-44080-000  

13374-35C00-000
 1337444080000

Unit Price

35
SCREW

13602-34390-000  

02112-75163-000
 1360234390000

Unit Price

36
SCREW
SCREW

02112-05127-000   0211205127000

0211205127000

Unit Price

37
CAP
CAP

13508-17C00-000   1350817C00000

1350817C00000

Unit Price

38
CLIP

13671-33600-000  

13671-05A40-000
 1367133600000

Unit Price

39
SHAFT ASSY

13550-26D10-000   1355026D10000

1355026D10000
Not available
40
COVER, DIAPHRAGM

13502-26D30-000   1350226D30000

1350226D30000
Not available
40
COVER, DIAPHRAGM

13502-26D80-000   1350226D80000

1350226D80000
Not available
40
DISCONTINUE

13502-45B00-000  

1350245B00000
Not available
41
CAP,STARTER
CAP, STARTER

13418-17C00-000  

13418-17C01-000
 1341817C00000

Unit Price

42
DISCONTINUE

13267-28A00-000  

1326728A00000
Not available
43
SPRING
SPRING

13375-14D10-000   1337514D10000

1337514D10000

Unit Price

44
WASHER
WASHER

13427-38300-000   1342738300000

1342738300000

Unit Price

45
HOLDER,GUIDE<br />HOLDER
HOLDER, GUIDE
HOLDER

13418-17C10-000   1341817C10000

1341817C10000

Unit Price

46
SPRING
SPRING

13417-26D00-000   1341726D00000

1341726D00000

Unit Price

47
WASHER

13432-47090-000   1343247090000

1343247090000

Unit Price

48
PLUNGER ASSY
PLUNGER ASSY

13411-05320-000   1341105320000

1341105320000

Unit Price

49
JET, AIR (1.25)

09493-25003-000   0949325003000

0949325003000

Unit Price

49
.JET, PILOT AIR (1.4)

09493-28007-000   0949328007000

0949328007000
Not available
49
JET, AIR (1.45)

09493-29002-000   0949329002000

0949329002000
Not available
50
SCREW,PILOT<br />SCREW, AIR (1/3/8)
SCREW, PILOT
SCREW, AIR (1/3/8)

13279-47070-000   1327947070000

1327947070000

Unit Price

51
SPRING
SPRING

13268-47070-000   1326847070000

1326847070000

Unit Price

52
WASHER
WASHER

13291-29900-000   1329129900000

1329129900000

Unit Price

53
O RING,PILOT AIR SCREW
O RING, PILOT AIR SCREW

13295-29900-000  

13295-29901-000
 1329529900000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CARBURETOR of your Suzuki of GSX-G. Let us know if you have any questions.
