Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CYLINDER

CRANKCASE FOR SUZUKI GSX-G 1100 1993

CRANKCASE COVER

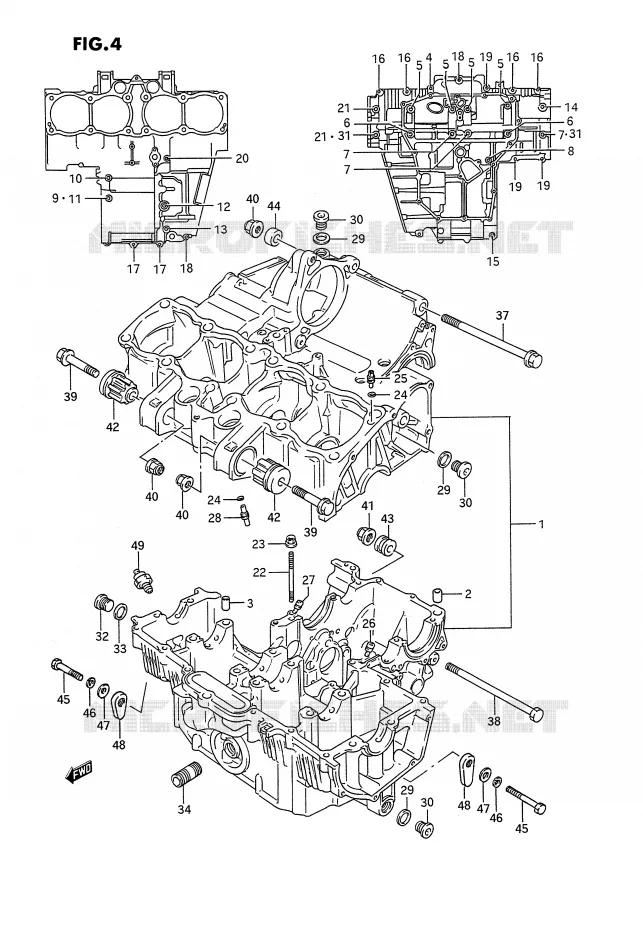

CRANKCASE Suzuki MOTO 1100 GSX-G 1993 GSX1100GP(E2)
1
DISCONTINUE
CRANKCASE SET

11301-26851-000  

1130126851000
Not available
1
CRANKCASE SET

11301-26860-000   1130126860000

1130126860000
Not available
2
CLUTCH COVER PI **S1<br />PIN
CLUTCH COVER PI **S1
PIN

09206-13004-000   0920613004000

0920613004000

Unit Price

3
PIN, 11 X20

09206-11005-000  

09206-11017-000
 0920611005000

Unit Price

4
BOLT (6X100)

09103-06020-000   0910306020000

0910306020000
Not available
5
BOLT
BOLT (8X135)

09103-08212-000   0910308212000

0910308212000

Unit Price

5
BOLT (8X135)

09103-08209-000   0910308209000

0910308209000
Not available
6
DISCONTINUE
BOLT (8X145)

09103-08298-000   0910308298000

0910308298000
Not available
7
DISCONTINUE
BOLT (8X140)

09103-08317-000   0910308317000

0910308317000
Not available
8
BOLT (6X120)

09103-06148-000   0910306148000

0910306148000

Unit Price

9
GASKET,8.2X14X1<br />GASKET
GASKET, 8.2X14X1
GASKET

09168-08016-000   0916808016000

0916808016000

Unit Price

10
BOLT

07130-08503-000  

07130-0850A-000
 0713008503000

Unit Price

10
BOLT
BOLT

07130-08507-000   0713008507000

0713008507000

Unit Price

11
DISCONTINUE
BOLT

07130-08603-000  

0713008603000
Not available
12
DISCONTINUE
BOLT

07130-08703-000  

0713008703000
Not available
13
BOLT

07130-08753-000   0713008753000

0713008753000
Not available
13
BOLT

07130-08757-000   0713008757000

0713008757000
Not available
14
BOLT (8X85)

09103-08300-000   0910308300000

0910308300000

Unit Price

15
DISCONTINUE
BOLT

07130-08803-000  

0713008803000
Not available
16
BOLT

01550-06353-000  

01550-0635B-000
 0155006353000

Unit Price

16
BOLT

01550-06357-000   0155006357000

0155006357000

Unit Price

17
BOLT

01550-06403-000  

01550-0640A-000
 0155006403000

Unit Price

17
BOLT
BOLT

01550-06407-000   0155006407000

0155006407000

Unit Price

18
BOLT

01550-06603-000  

01550-0660A-000
 0155006603000

Unit Price

19
BOLT

01550-06553-000  

01550-0655B-000
 0155006553000

Unit Price

19
BOLT

01550-06557-000  

01550-0660A-000
 0155006557000

Unit Price

20
BOLT

01550-06803-000  

01550-0680B-000
 0155006803000

Unit Price

20
BOLT

01550-06807-000   0155006807000

0155006807000
Not available
21
BOLT (8X95)
BOLT (8X95)

09103-08105-000   0910308105000

0910308105000

Unit Price

22
STUD BOLT

01421-06708-000   0142106708000

0142106708000
Not available
23
NUT 6MM

08316-10063-000  

08319-31067-000
 0831610063000

Unit Price

24
O RING
O RING

09280-04004-000   0928004004000

0928004004000

Unit Price

25
JET, OIL HEAD
JET, OIL HEAD

09493-14002-000   0949314002000

0949314002000
Not available
26
JET<br />JET, OIL MISSION
JET
JET, OIL MISSION

09493-24010-000   0949324010000

0949324010000

Unit Price

27
JET(140)<br />JET, OIL MISSION
JET(140)
JET, OIL MISSION

09493-28012-000   0949328012000

0949328012000

Unit Price

28
JET, OIL PISTON

09493-80011-000   0949380011000

0949380011000
Not available
29
GASKET OIL GALLERY<br />GASKET
GASKET OIL GALLERY
GASKET

09168-16002-000   0916816002000

0916816002000

Unit Price

30
PLUG<br />PLUG, HOLE
PLUG
PLUG, HOLE

09248-16008-000   0924816008000

0924816008000

Unit Price

31
GASKET 8.5X17X2.3<br />GASKET
GASKET 8.5X17X2.3
GASKET

09168-08021-000   0916808021000

0916808021000

Unit Price

32
09248-14011<br />PLUG, OIL GALLERY
09248-14011
PLUG, OIL GALLERY

09248-14005-000  

0924814005000
Not available
33
GASKET,13.8X18.8X0.4<br />GASKET
GASKET, 13.8X18.8X0.4
GASKET

09168-14002-000   0916814002000

0916814002000

Unit Price

34
UNION, OIL STAND

16591-06B00-000  

16591-06B01-000
 1659106B00000

Unit Price

35
BEARING,CRANK THRUST(GREEN)<br />BEARING, THRUST RH (GREEN)
BEARING, CRANK THRUST(GREEN)
BEARING, THRUST RH (GREEN)

12228-48B00-0E0   1222848B000E0

1222848B000E0

Unit Price

36
BEARING LEFT RED<br />BEARING, THRUST LH (RED)
BEARING LEFT RED
BEARING, THRUST LH (RED)

12228-48B00-0C0   1222848B000C0

1222848B000C0

Unit Price

36
BEARING,CRANK THRUST(GREEN)<br />BEARING, THRUST LH (GREEN)
BEARING, CRANK THRUST(GREEN)
BEARING, THRUST LH (GREEN)

12228-48B00-0E0   1222848B000E0

1222848B000E0

Unit Price

36
BEARING,CRANK THRUST(BLACK)<br />BEARING, THRUST LH (BLACK)
BEARING, CRANK THRUST(BLACK)
BEARING, THRUST LH (BLACK)

12228-48B00-0H0   1222848B000H0

1222848B000H0

Unit Price

37
BOLT (10X165)

09103-10167-000   0910310167000

0910310167000
Not available
38
BOLT (12X151)

09100-12066-000   0910012066000

0910012066000
Not available
39
BOLT

01550-10553-000  

01550-10557-000
 0155010553000

Unit Price

40
NUT

09159-10058-000  

09159-10115-000
 0915910058000

Unit Price

40
NUT

09159-10044-000   0915910044000

0915910044000
Not available
41
NUT

08319-31125-000  

08319-3112B-000
 0831931125000

Unit Price

42
DISCONTINUE<br />BUSH, ENGINE MOUNTING
DISCONTINUE
BUSH, ENGINE MOUNTING

11681-27A00-000   1168127A00000

1168127A00000
Not available
43
SPACER, ENG MTG

11611-19B12-000  

11611-17E00-000
 1161119B12000

Unit Price

44
DISCONTINUE
SPACER (L:10)

11611-36A50-000   1161136A50000

1161136A50000
Not available
45
BOLT (10X70)

09103-10051-000   0910310051000

0910310051000
Not available
46
WASHER, LOCK

08321-01103-000  

08321-0110B-000
 0832101103000

Unit Price

47
REAR SPENSION WASHER
WASHER

09160-10005-000   0916010005000

0916010005000

Unit Price

48
ENGINE MOUNT NUT N02<br />NUT
ENGINE MOUNT NUT N02
NUT

09159-10020-000   0915910020000

0915910020000

Unit Price

49
SWITCH ASSY, OIL PRESSURE

37820-33D00-000  

37820-33D11-000
 3782033D00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKCASE of your Suzuki of GSX-G. Let us know if you have any questions.

Genuine parts for Suzuki 1100 GSX-G 1993
