Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FRAME

FOOTREST FOR SUZUKI GSX-G 1100 1994

FUEL TANK

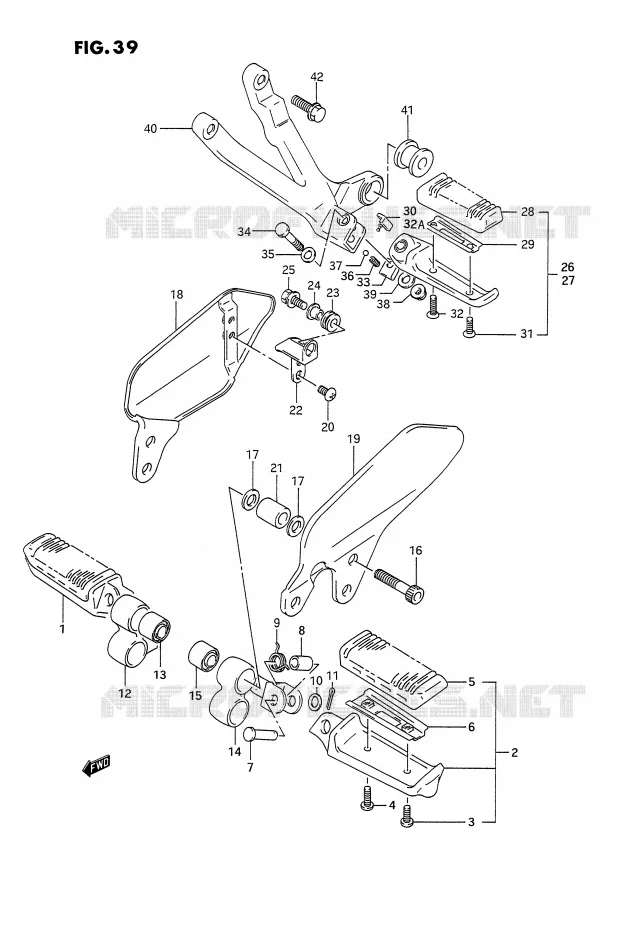

FOOTREST Suzuki MOTO 1100 GSX-G 1994 GSX1100GR(E2)
1
DISCONTINUE
FOOTREST ASSY, FRONT RH

43501-45C00-000   4350145C00000

4350145C00000
Not available
2
DISCONTINUE
FOOTREST ASSY, FRONT LH

43502-45C00-000   4350245C00000

4350245C00000
Not available
3
SCREW

02112-05123-000  

02112-0512A-000
 0211205123000

Unit Price

4
SCREW

02112-05163-000  

02112-0516B-000
 0211205163000

Unit Price

5
RUBBER, FOOTREST

43550-31300-000   4355031300000

4355031300000

Unit Price

6
DISCONTINUE<br />PLATE, FRONT FOOTREST RUBBER
DISCONTINUE
PLATE, FRONT FOOTREST RUBBER

43580-33301-000   4358033301000

4358033301000
Not available
7
PIN
PIN

09200-08057-000   0920008057000

0920008057000

Unit Price

8
SPACER, 8.1X12.22<br />SPACER
SPACER, 8.1X12.22
SPACER

09180-08149-000   0918008149000

0918008149000

Unit Price

9
SPRING
SPRING

09448-18022-000   0944818022000

0944818022000

Unit Price

10
WASHER
WASHER

08322-01087-000   0832201087000

0832201087000

Unit Price

10
08322-0108A
WASHER, FRONT

08322-11084-000  

0832211084000
Not available
11
PIN

04111-20208-000  

04111-2020A-000
 0411120208000

Unit Price

12
DISCONTINUE

43530-26D00-000  

4353026D00000
Not available
13
BUSH

09319-10047-000   0931910047000

0931910047000

Unit Price

14
HOLDER, FOOTREST LH

43540-26D00-000   4354026D00000

4354026D00000
Not available
15
BUSH

09319-10047-000   0931910047000

0931910047000

Unit Price

16
BOLT

07120-10457-000   0712010457000

0712010457000
Not available
17
WASHER, 10X20X2.3

09160-10504-000  

09160-10085-000
 0916010504000

Unit Price

18
DISCONTINUE
FOOT GUARD, RH

43560-26D01-000   4356026D01000

4356026D01000
Not available
19
FOOT GUARD, LH

43570-26D00-000   4357026D00000

4357026D00000
Not available
20
SCREW

02142-06083-000  

02142-0608A-000
 0214206083000

Unit Price

20
SCREW
SCREW, PLATE

02142-06087-000   0214206087000

0214206087000

Unit Price

20
SCREW, PLATE

09125-06071-000   0912506071000

0912506071000
Not available
21
SPACER, LH

43597-26D00-000   4359726D00000

4359726D00000
Not available
22
PLATE, GUARD

43581-26D00-000   4358126D00000

4358126D00000
Not available
23
CUSHION, MUF COV

09320-08051-000  

09320-08066-000
 0932008051000

Unit Price

24
WASHER

09169-06063-000   0916906063000

0916906063000

Unit Price

25
BOLT

09116-06065-000  

09116-06010-000
 0911606065000

Unit Price

25
BOLT

09116-06111-000  

09116-06152-000
 0911606111000

Unit Price

26
DISCONTINUE
FOOTREST ASSY, PILLION RH

43600-26D01-000   4360026D01000

4360026D01000
Not available
27
DISCONTINUE
FOOTREST ASSY, PILLION LH

43700-26D01-000   4370026D01000

4370026D01000
Not available
28
RUBBER, RR FOOTREST
RUBBER, PILLION FOOTREST

43612-31300-000   4361231300000

4361231300000

Unit Price

29
PLATE,RUBBER STOPPER<br />PLATE, RUBBER STOP
PLATE, RUBBER STOPPER
PLATE, RUBBER STOP

43632-45501-000   4363245501000

4363245501000

Unit Price

30
DISCONTINUE
CUSHION

43542-26D01-000   4354226D01000

4354226D01000
Not available
31
SCREW

02122-05123-000  

02122-05127-000
 0212205123000

Unit Price

32
SCREW

02122-05163-000  

02122-0516B-000
 0212205163000

Unit Price

32
SCREW
SCREW

02122-05167-000   0212205167000

0212205167000

Unit Price

32A
DISCONTINUE
CUSHION

43542-26D01-000   4354226D01000

4354226D01000
Not available
33
DISCONTINUE
PLATE, SPRING STOP RH

43635-45C00-000   4363545C00000

4363545C00000
Not available
33
DISCONTINUE
PLATE, SPRING STOP LH

43735-45C00-000   4373545C00000

4373545C00000
Not available
34
BOLT

09111-06048-000   0911106048000

0911106048000
Not available
35
DISCONTINUE<br />SHIM
DISCONTINUE
SHIM

09181-08004-000   0918108004000

0918108004000
Not available
36
SPRING

09440-05028-000   0944005028000

0944005028000
Not available
37
STEEL BALL
STEEL BALL

06111-08003-000   0611108003000

0611108003000

Unit Price

38
NUT 6MM<br />NUT
NUT 6MM
NUT

08319-31067-000   0831931067000

0831931067000

Unit Price

39
WASHER
WASHER

08322-01087-000   0832201087000

0832201087000

Unit Price

40
BRACKET, PILLION RH

43811-26D00-000   4381126D00000

4381126D00000
Not available
40
BRACKET, PILLION LH

43821-26D00-000   4382126D00000

4382126D00000
Not available
41
BUSH

09319-10033-000   0931910033000

0931910033000

Unit Price

42
BOLT

01550-08253-000  

01550-0825A-000
 0155008253000

Unit Price

42
BOLT
BOLT

01550-08257-000   0155008257000

0155008257000

Unit Price

42
BOLT
BOLT

07130-08257-000   0713008257000

0713008257000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FOOTREST of your Suzuki of GSX-G. Let us know if you have any questions.

Genuine parts for Suzuki 1100 GSX-G 1994
