GEAR SHIFTING ASSY

DRIVESHAFT FOR SUZUKI GSX-G 1100 1994

ALTERNATOR

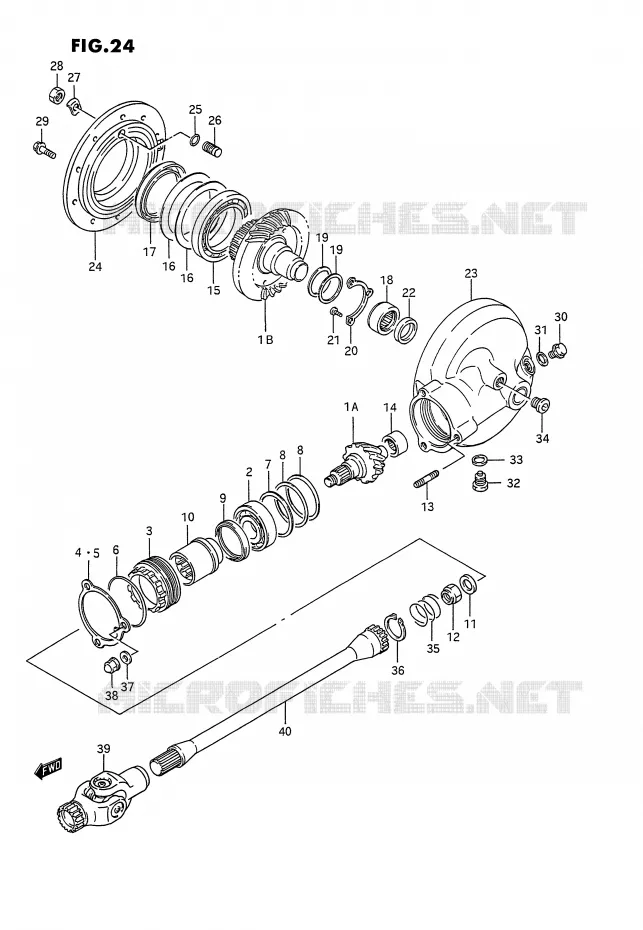

DRIVESHAFT Suzuki MOTO 1100 GSX-G 1994 GSX1100GR(E2)
1A
GEAR, FINAL DRIVE BEVEL
GEAR, FINAL DRIVE BEVEL (NT:12)

27311-24A03-000   2731124A03000

2731124A03000

Unit Price

1B
GEAR, FINAL DRIVEN BEVEL (NT:32)

27320-24A03-000   2732024A03000

2732024A03000
Not available
2
BEARING

09262-28023-000   0926228023000

0926228023000

Unit Price

3
STOPPER, FINAL DRIVE BEARING
STOPPER, BEARING

27312-24A02-000   2731224A02000

2731224A02000

Unit Price

4
PLATE, STOPPER

27313-24A00-000   2731324A00000

2731324A00000
Not available
5
PLATE, STOPPER

27313-24A10-000   2731324A10000

2731324A10000
Not available
6
O RING<br />O RING (D:3.1,ID:63.9)
O RING
O RING (D:3.1, ID:63.9)

09280-64003-000   0928064003000

0928064003000

Unit Price

7
WASHER(54X68X1.5)
WASHER

09160-54001-000   0916054001000

0916054001000

Unit Price

8
SHIM SET, FINAL DRIVE GEAR

27445-24810-000   2744524810000

2744524810000

Unit Price

9
OIL SEAL
OIL SEAL (47X58X7)

09283-47002-000   0928347002000

0928347002000

Unit Price

10
COUPLING, FINAL DRIVE GEAR

27172-24A00-000   2717224A00000

2717224A00000

Unit Price

11
WASHER

09160-16029-000   0916016029000

0916016029000

Unit Price

12
NUT

09159-16003-000   0915916003000

0915916003000

Unit Price

13
01421-1025B
STUD BOLT

01421-10258-000  

0142110258000
Not available
14
BEARING

09263-20062-000   0926320062000

0926320062000

Unit Price

15
FIN DRVN GR BEA *S1
BEARING, RH

09262-70001-000   0926270001000

0926270001000

Unit Price

16
SHIM SET, DRIVEN GEAR BEARING

27327-45810-000   2732745810000

2732745810000
Not available
17
DRVN GEAR R OIL SEAL
OIL SEAL

09289-70001-000   0928970001000

0928970001000

Unit Price

18
DRVN GEAR LH BEA****
BEARING, LH

09263-35004-000   0926335004000

0926335004000

Unit Price

19
DISCONTINUE

27326-45810-000  

2732645810000
Not available
20
DISCONTINUE
HOLDER, BEARING

27329-45100-000   2732945100000

2732945100000
Not available
21
SCREW

02112-06123-000  

02112-3612A-000
 0211206123000

Unit Price

21
SCREW

02112-06128-000  

02112-06127-000
 0211206128000

Unit Price

22
DRIVEN GEAR OIL SEAL
OIL SEAL (30X42X7)

09283-30028-000   0928330028000

0928330028000

Unit Price

23
DISCONTINUE
.CASE, FINAL GEAR

27450-26D00-000   2745026D00000

2745026D00000
Not available
24
CASE, FINAL GEAR BEARING

27460-24A01-000   2746024A01000

2746024A01000
Not available
25
O RING(D:1.9, ID:9.8)
O RING (ID:1.9, D:9.8)

09280-10016-000   0928010016000

0928010016000

Unit Price

26
DISCONTINUE
BOLT

27481-24A00-000   2748124A00000

2748124A00000
Not available
27
LOCK WASHER

09169-12003-000   0916912003000

0916912003000
Not available
28
NUT

09140-12038-000   0914012038000

0914012038000

Unit Price

29
BOLT

01550-08303-000  

01550-0830B-000
 0155008303000

Unit Price

29
BOLT

01550-08307-000   0155008307000

0155008307000

Unit Price

30
PLUG<br />PLUG, OIL FILLER
PLUG
PLUG, OIL FILLER

09247-14026-000   0924714026000

0924714026000

Unit Price

31
SPARK PLUG GASKET<br />GASKET
SPARK PLUG GASKET
GASKET

09168-14004-000   0916814004000

0916814004000

Unit Price

32
PLUG, OIL DRAIN

09247-14019-000  

09247-14036-000
 0924714019000

Unit Price

33
SPARK PLUG GASKET<br />GASKET
SPARK PLUG GASKET
GASKET

09168-14004-000   0916814004000

0916814004000

Unit Price

34
PLUG
PLUG

09248-16008-000   0924816008000

0924816008000

Unit Price

35
SPRING

09440-30008-000   0944030008000

0944030008000

Unit Price

36
DR CUP RING CIRCLIP
CICLIP

09381-40003-000   0938140003000

0938140003000

Unit Price

37
WASHER<br />LOCK WASHER
WASHER
LOCK WASHER

09164-10008-000   0916410008000

0916410008000

Unit Price

38
CYLINDER HEAD NUT
NUT

09159-10026-000   0915910026000

0915910026000

Unit Price

39
YOKE, UNIVERSAL JOINT

27100-26D00-000   2710026D00000

2710026D00000
Not available
40
DISCONTINUE

27151-26D00-000  

2715126D00000
Not available
99x
GEAR & CASE SET, FINAL BEVEL

27300-26823-000   2730026823000

2730026823000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the DRIVESHAFT of your Suzuki of GSX-G. Let us know if you have any questions.
