HEADLAMP HOUSING - FRONT FENDER

REAR FENDER FOR SUZUKI GSX 1100 1982

FAIRING (GSX1100ESD)

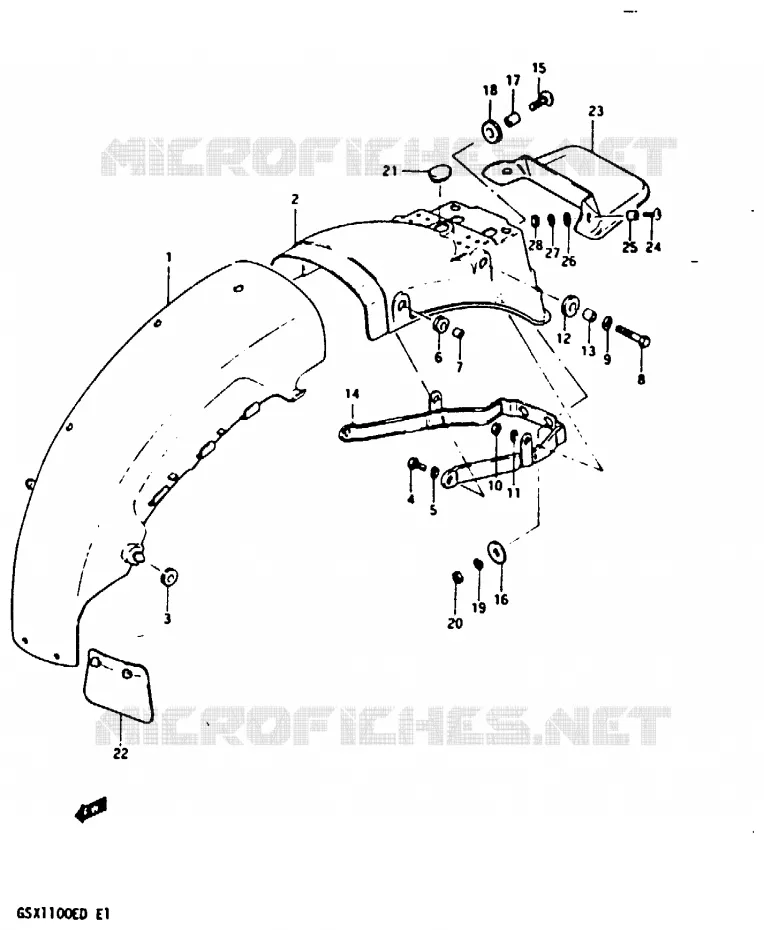

REAR FENDER Suzuki MOTO 1100 GSX 1982 GSX1100Z(Z/D)
1
BODY, REAR FENDER FRONT

63112-49003-000   6311249003000

6311249003000
Not available
2
DISCONTINUE<br />BODY, REAR FENDER REAR
DISCONTINUE
BODY, REAR FENDER REAR

63113-49000-291   6311349000291

6311349000291
3
FRAME COVER CUSHION
FRAME COVER CUSHION

09320-08013-000  

09320-08509-000
 0932008013000

Unit Price

4
BOLT, ADJUSTER

01107-06208-000   0110706208000

0110706208000
Not available
5
LOCK WASHER

08321-21068-000   0832121068000

0832121068000
Not available
6
CUSHION (8.5X20X8)

09320-08007-000  

09320-08510-000
 0932008007000

Unit Price

7
FENDER FRONT SPACER<br />SPACER (6.1*9*7.5)
FENDER FRONT SPACER
SPACER (6.1*9*7.5)

09180-06038-000   0918006038000

0918006038000

Unit Price

8
BOLT<br />BOLT, REAR
BOLT
BOLT, REAR

01204-08307-000   0120408307000

0120408307000

Unit Price

9
WASHER

08322-21088-000  

08322-01087-000
 0832221088000

Unit Price

10
NUT

08310-12088-000  

08310-00087-000
 0831012088000

Unit Price

11
8 MM LOCK WASHER

08321-21088-000  

08321-01087-000
 0832121088000

Unit Price

12
CUSHION(11.8X25X7.5)

09320-12011-000  

09320-12090-000
 0932012011000

Unit Price

13
SPACER, 8.5X12X7.5

09180-08021-000  

09180-08188-000
 0918008021000

Unit Price

14
REINFORCEMENT, REAR FENDER

63120-49000-000   6312049000000

6312049000000
Not available
15
6 X 20 CROSS SCREW<br />SCREW
6 X 20 CROSS SCREW
SCREW

02142-06207-000   0214206207000

0214206207000

Unit Price

16
WASHER(6.5X22X1.6)
WASHER(6.5X22X1.6)

09160-06012-000  

09160-06054-000
 0916006012000

Unit Price

17
SPACER, 6.5X10X7

09180-06011-000  

09180-06283-000
 0918006011000

Unit Price

18
FRAME COVER CUSHION
FRAME COVER CUSHION

09320-08013-000  

09320-08509-000
 0932008013000

Unit Price

19
LOCK WASHER

08321-21068-000   0832121068000

0832121068000
Not available
20
NUT FIG.42 (H-4) : E16, E18, E22,

08310-11068-000   0831011068000

0831011068000
Not available
21
PLUG

09250-12008-000   0925012008000

0925012008000
Not available
22
DISCONTINUE<br />MUD GUARD, REAR FENDER
DISCONTINUE
MUD GUARD, REAR FENDER

63411-31900-000   6341131900000

6341131900000
Not available
23
EXTENSION, REAR FENDER

63311-49030-000   6331149030000

6331149030000
Not available
24
SCREW 6X16

09125-06009-000  

09125-06073-000
 0912506009000

Unit Price

25
SPACER(6.2X8.3X5.7)<br />SPACER (6.2*8.3*5.7)
SPACER(6.2X8.3X5.7)
SPACER (6.2*8.3*5.7)

09180-06001-000   0918006001000

0918006001000

Unit Price

26
MUD GUARD WASHER<br />WASHER (6.5*1.8*1)
MUD GUARD WASHER
WASHER (6.5*1.8*1)

09160-06028-000   0916006028000

0916006028000

Unit Price

27
LOCK WASHER

08321-21068-000   0832121068000

0832121068000
Not available
28
NUT FIG.42 (H-4) : E16, E18, E22,

08310-11068-000   0831011068000

0831011068000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the REAR FENDER of your Suzuki 1100 GSX of GSX. Let us know if you have any questions.
