CRANKCASE COVER

CRANKSHAFT FOR SUZUKI AP 115 1998

CARBURETOR

Item numbers

PISTON (STD)

12110-23460-0F0 12110234600F0

Not available

RING SET, PISTON (STD)

12140-234A0-000 12140234A0000

Not available

RING SET, PISTON (OS:0.5)

12140-234A0-050 12140234A0050

Not available

RING SET, PISTON (OS:1.0)

12140-234A0-100 12140234A0100

Not available

PIN, PISTON

12151-23400-000

12151-23400-0A0

$12,97

Unit Price

PISTON PIN CIRCLIP
CIRCLIP

09381-14001-000 0938114001000

$3,97

Unit Price

ROLLER BRG14X18X19.8
BEARING

09263-14022-000 0926314022000

$17,97

Unit Price

CRANKSHAFT ASSY

12200-23460-000 1220023460000

Not available

ROD, CONNECTING

12161-05B00-000 1216105B00000

Not available

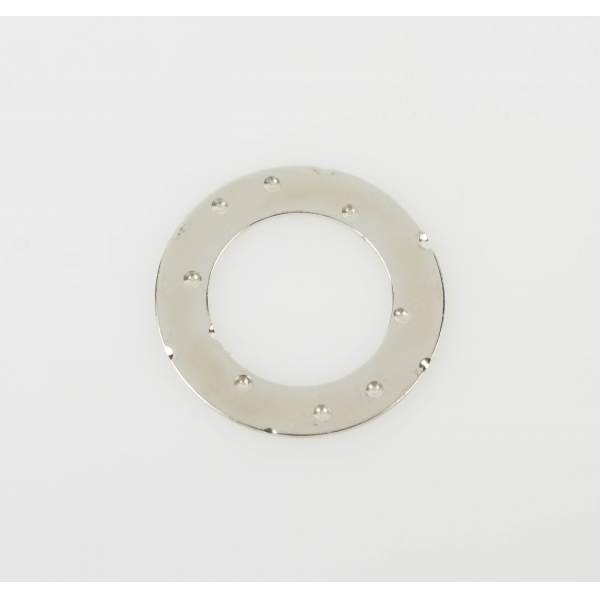

THRUST WASHER
WASHER (22X35X1)

09160-22010-000 0916022010000

$10,97

Unit Price

PIN, CRANK

12211-05B00-000 1221105B00000

Not available

BEARING (14X18X19.8)

09263-22046-000 0926322046000

Not available

CRANKSHAFT, RH

12221-23460-000 1222123460000

Not available

CRANKSHAFT, LH

12261-23460-0A0 12261234600A0

Not available

OIL SEAL
OIL SEAL, LH

09283-20034-000 0928320034000

$8,97

Unit Price

BEARING
BEARING, LH

09262-25070-0A0 09262250700A0

$58,97

Unit Price

BEARING(20X52X15)
BEARING, RH

09262-20073-000 0926220073000

$29,97

Unit Price

RH CRKSFT OIL SEAL
OIL SEAL, RH

09283-26007-000 0928326007000

$14,97

Unit Price

GEAR, PRIMARY DRIVE (NT:16)

21111-07001-0A0 21111070010A0

$59,97

Unit Price

SPACER

09180-20037-000 0918020037000

Not available

NUT

09140-14002-000 0914014002000

$6,97

Unit Price

WASHER

09166-14008-000 0916614008000

Not available

KEY

09420-04008-000 0942004008000

$6,97

Unit Price

PISTON SET (OS:0.5)

12100-23460-050 1210023460050

Not available

PISTON SET (OS:1.0)

12100-23460-100 1210023460100

Not available

CON ROD SET (INCLUDING REF.NO.5, 7, 8, 9, 10)

12105-23820-000 1210523820000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
