OIL PUMP - OIL FILTER

CRANKSHAFT FOR SUZUKI GS 1150 1985

STARTER MOTOR CLUTCH

CRANKSHAFT ASSY

12200-00A06-000 1220000A06000

Not available

ROD, CONNECTING

12161-00A03-000 1216100A03000

Not available

WASHER(31X48.5X1)
WASHER

09160-31002-000 0916031002000

$12,97

Unit Price

DISCONTINUE
WASHER

09160-31003-000 0916031003000

Not available

BEARING, CRANK P *S1
BEARING

09263-31004-000 0926331004000

$96,97

Unit Price

CRANKSHAFT, RH

12220-49202-000 1222049202000

Not available

04221-04089-000 0422104089000

$2,97

Unit Price

.WEB, RH

12230-49201-000 1223049201000

Not available

.CRANKSHAFT, MIDDLE RH

12241-49202-000 1224149202000

Not available

.CRANKSHAFRT, MIDDLE LH

12271-49202-000 1227149202000

Not available

.WEB, CRANKSHAFT MIDDLE

12250-49201-000 1225049201000

Not available

DISCONTINUE
CRANKSHAFT, LH

12261-49601-000 1226149601000

Not available

.SHAFT, CHAIN DRIVE (NT:15)

12281-49200-000 1228149200000

Not available

.WEB, LH

12290-49201-000 1229049201000

Not available

DISCONTINUE
BEARING, RH

09262-30033-000 0926230033000

Not available

CIRCLIP

08331-11308-000

08331-31309-000

$4,97

Unit Price

.GEAR, PRIMARY DRIVE (NT:50)

21111-00A00-000 2111100A00000

Not available

BOLT

09106-08043-000

07130-0816A-000

$4,97

Unit Price

BEARING(32X72X21)
BEARING

09264-32009-000 0926432009000

$274,97

Unit Price

DISCONTINUE
C RING, BEARING RH

09390-72004-000 0939072004000

Not available

PIN 7 X 12
PIN

04221-07129-000 0422107129000

$3,97

Unit Price

CRANK SFT R OIL SEAL
OIL SEAL, RH

09283-30021-000 0928330021000

$40,97

Unit Price

CLUTCH GR OIL SEAL
OIL SEAL, LH

09289-48002-000 0928948002000

$24,97

Unit Price

PISTON (STD)

12111-00A07-000 1211100A07000

Not available

DISCONTINUE

12111-00A07-050

Not available

PISTON (OS:1.0)

12111-00A07-100 1211100A07100

Not available

DISCONTINUE
PISTON RING SET (STD)

12140-00A24-000 1214000A24000

Not available

PISTON RING SET (OS:0.5)

12140-00A24-050 1214000A24050

Not available

PISTON RING SET (OS:0.5)

12140-00A24-100 1214000A24100

Not available

PIN, PISTON

12151-00A10-000

12151-05A00-000

$17,97

Unit Price

CIRCLIP PISTON PIN
CIRCLIP

09381-20004-000 0938120004000

$2,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

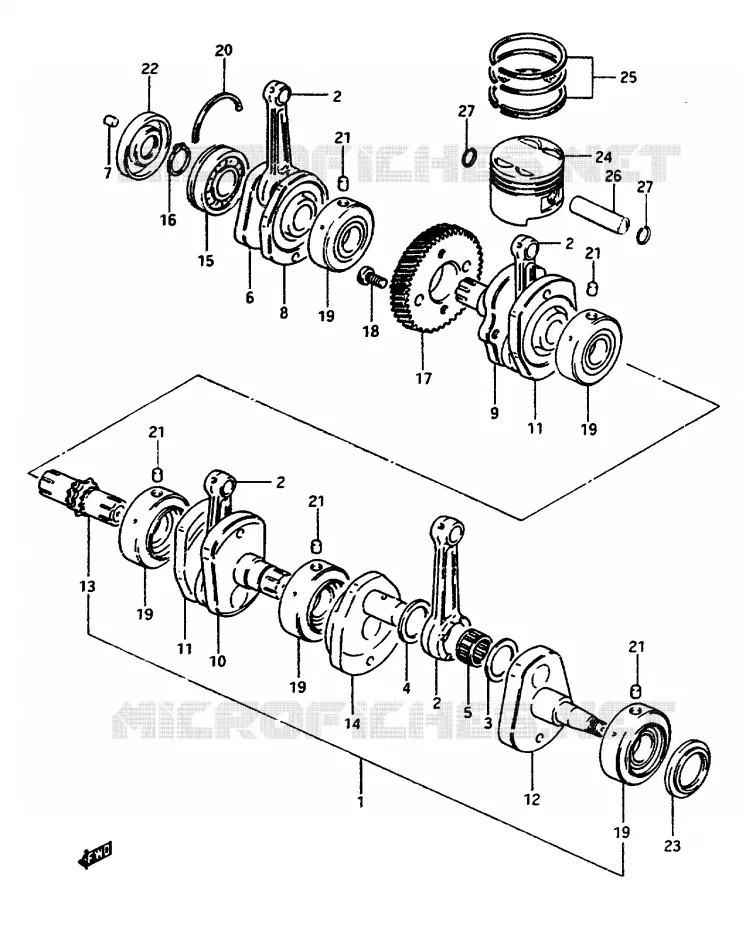

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKSHAFT of your Suzuki of GS. Let us know if you have any questions.
