TRANSMISSION

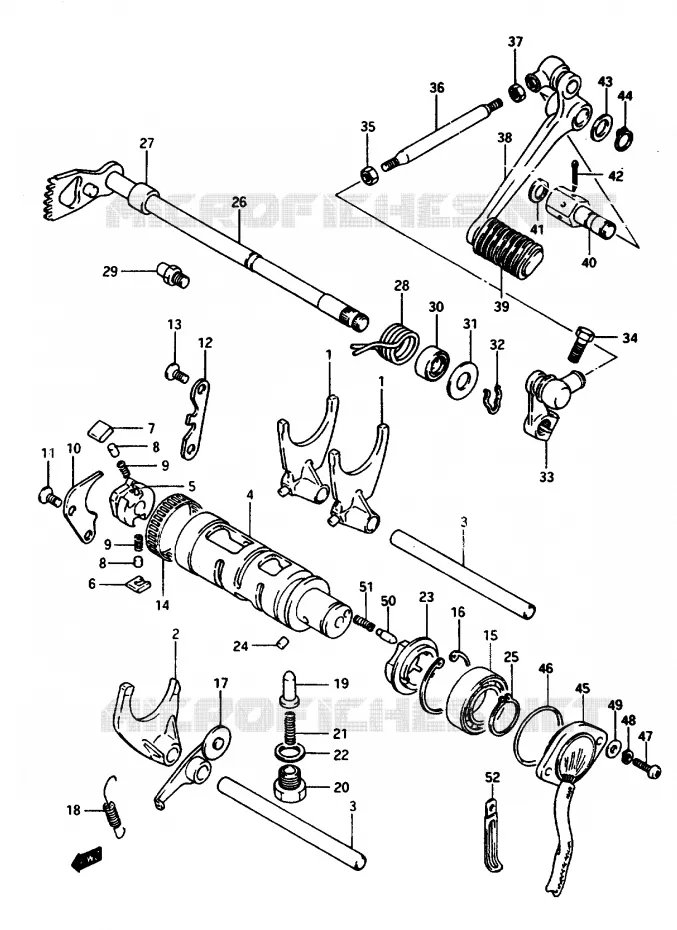

GEAR SHIFTING ASSY FOR SUZUKI GS 1150 1985

GENERATOR SENSOR

FORK, GEAR SHIFT NO.1
FORK, SHIFTING

25211-49200-000 2521149200000

$118,97

Unit Price

DISCONTINUE

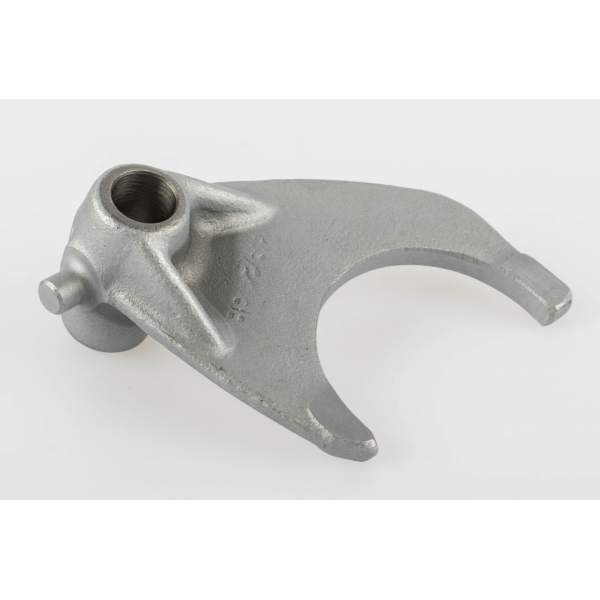

FORK, SHIFTING

25231-49201-000 2523149201000

Not available

SHAFT, GEAR SHIFT FORK

25411-33300-000

25411-33301-000

$21,97

Unit Price

DISCONTINUE

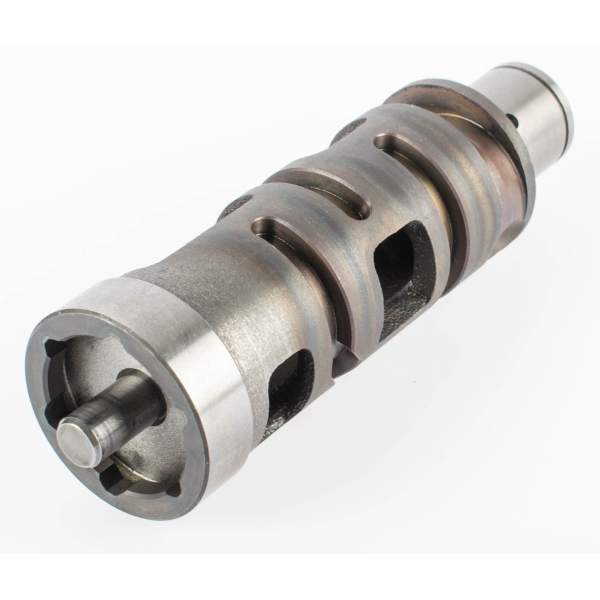

CAM, GEAR SHIFTING

25310-49200-000 2531049200000

Not available

GEAR, GEAR SHIFT CAM DRIVEN

25322-31301-000

25322-31310-000

$24,97

Unit Price

POLE, GEAR SHIFT NO.1

25323-34200-000 2532334200000

Not available

POLE, GEAR SHIFT NO.2

25324-34200-000 2532434200000

Not available

SHIFTING PAUL ROLLER
PIN

09261-05003-000 0926105003000

$2,97

Unit Price

K S PAWL SPRING
SPRING

09440-04003-000 0944004003000

$2,97

Unit Price

LIFTER, PAWL

25331-49200-000 2533149200000

Not available

SCREW

02122-06128-000

02122-06127-000

$3,97

Unit Price

DISCONTINUE
GUIDE, CAM

25341-18000-000 2534118000000

Not available

SCREW

02122-06128-000

02122-06127-000

$3,97

Unit Price

BEARING(43X49X12)
BEARING, RH

09263-43001-000 0926343001000

$56,97

Unit Price

BEARING, RH

08110-69050-000

08113-69050-000

$52,97

Unit Price

CIRCLIP

08331-41428-000

08331-41429-000

$3,97

Unit Price

DISCONTINUE
STOPPER, CAM

25350-00A00-000 2535000A00000

Not available

DISCONTINUE
SPRING

09443-08019-000 0944308019000

Not available

STOPPER, GEAR SHIFT CAM NO.2
STOPPER, CAM

25351-30010-000 2535130010000

$14,97

Unit Price

HOLDER, GEAR SHIFT CAM STOP SPR
HOLDER, STOPPER

25354-30000-000 2535430000000

$11,97

Unit Price

SPRING GR SHIFT STOP
SPRING

09440-06020-000 0944006020000

$18,97

Unit Price

SPARK PLUG GASKET
GASKET

09168-14004-000 0916814004000

$2,97

Unit Price

DISCONTINUE

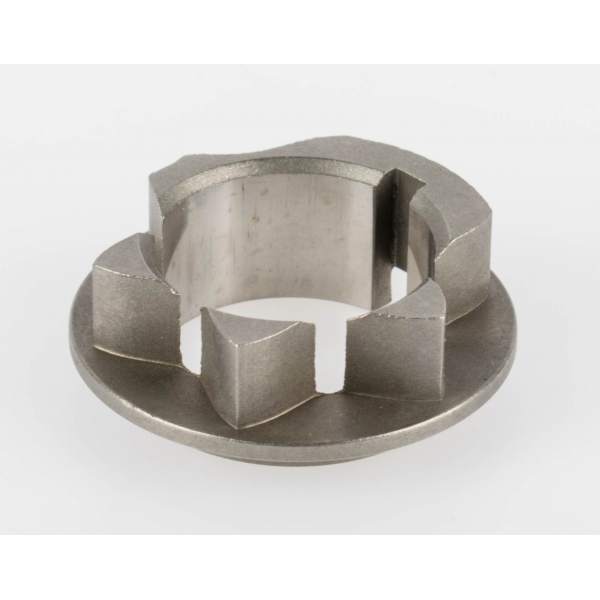

PLATE, STOPPER

25381-49200-000 2538149200000

Not available

PIN (4X6)

06211-04063-000

04221-04069-000

$2,97

Unit Price

CIRCLIP

08331-31258-000

08331-31259-000

$3,97

Unit Price

SHAFT, GEAR SHIFTING

25510-00A00-000 2551000A00000

Not available

SPACER(12X20X15.3)
SPACER

09180-12068-000 0918012068000

$4,97

Unit Price

SPRING

09444-26017-000 0944426017000

$8,97

Unit Price

STOPPER, GEAR SHIFT ARM

25671-01000-000

25671-01011-000

$6,97

Unit Price

09285-12006
OIL SEAL

09285-12002-000

Not available

WASHER

09160-12020-000

09160-12089-000

$3,97

Unit Price

CIRCLIP

09384-12001-000

08331-3112A-000

$2,97

Unit Price

ARM, GEAR SHIFT LINK

25520-47020-000

25520-47021-000

$83,97

Unit Price

BOLT, ADJUSTER

01107-06208-000 0110706208000

Not available

NUT FIG.42 (H-4) : E16, E18, E22,

08310-11068-000 0831011068000

Not available

ROD, GEAR SHIFT LINK

25525-00A01-000

25525-05G00-000

$15,97

Unit Price

ROD (L:111)

25525-33400-000 2552533400000

Not available

GR SHFT LINK ROD NUT
NUT

09140-06011-000 0914006011000

$2,97

Unit Price

LEVER ASSY, SHIFTING

25600-00A01-000 2560000A01000

Not available

RUBBER, PEDAL
COVER

25652-49300-000 2565249300000

$10,97

Unit Price

SHAFT, GEAR SHIFTING LEVER

25617-00A02-000 2561700A02000

Not available

WASHER

09164-10005-000

09164-10010-000

$8,97

Unit Price

COTTER PIN

04111-25258-000 0411125258000

Not available

SEAL WASHER
WASHER

09160-12011-000

Not available

CIRCLIP

08331-31128-000

08331-3112A-000

$2,97

Unit Price

DISCONTINUE

37720-49211-000

Not available

O RING, SHIFT SWITCH
O RING

09280-36001-000 0928036001000

$7,97

Unit Price

SCREW

09125-05102-000

02112-05167-000

$2,97

Unit Price

WASHER, LOCK

08321-21058-000

08321-0105A-000

$2,97

Unit Price

LOCK WASHER

08322-21058-000 0832221058000

Not available

K S PAWL ROLLER
CONTACT

09209-05011-000 0920905011000

$3,97

Unit Price

K S PAWL SPRING
SPRING

09440-04010-000 0944004010000

$2,97

Unit Price

CLAMP(L:65)

09404-06401-000

09404-06039-000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the GEAR SHIFTING ASSY of your Suzuki of GS. Let us know if you have any questions.
