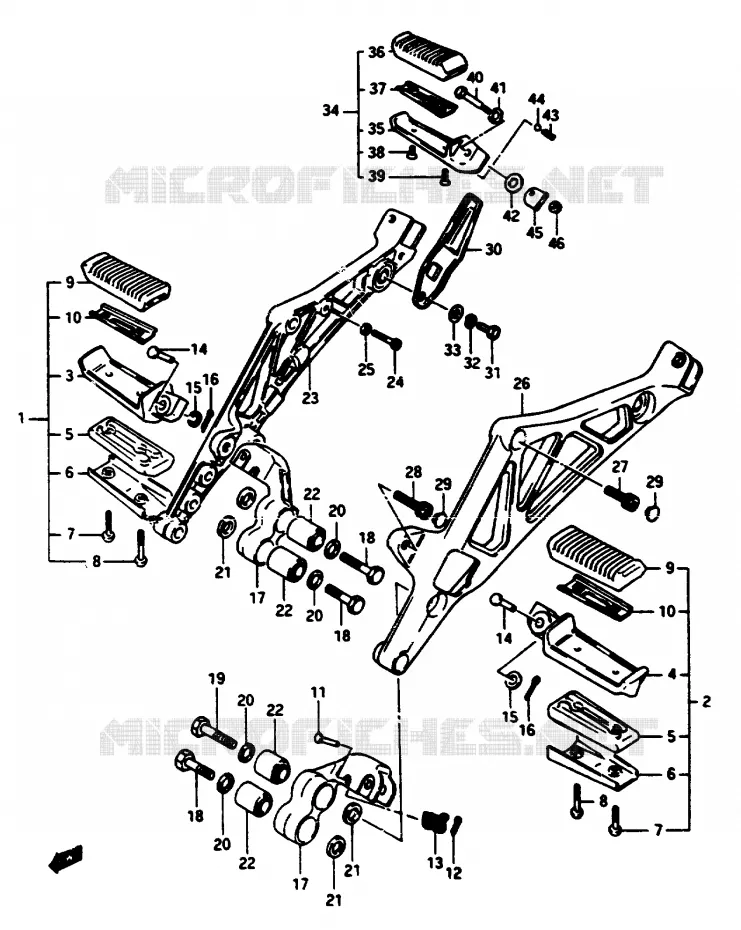

FOOTREST FOR SUZUKI GS 1150 1986

FUEL TANK (GSX1100EE / EF / EG) REFER TO FIG.37 (G-7) FOR GSX1100ESE/ESF/ESG

DISCONTINUE
FOOTREST ASSY, FRONT RH

43501-00A00-000 4350100A00000

Not available

FOOTREST ASSY, FRONT RH

43501-31300-000 4350131300000

Not available

FOOTREST ASSY, FRONT LH

43502-00A00-000 4350200A00000

Not available

FOOTREST ASSY, FRONT LH

43502-31300-000 4350231300000

Not available

BAR, FRONT FOOTREST RH

43510-31300-000 4351031300000

Not available

DISCONTINUE
BAR, FRONT FOOTRERST LH

43520-31300-000 4352031300000

Not available

DISCONTINUE
BAR, FRONT FOOTREST LH

43533-00A00-000 4353300A00000

Not available

COVER, FRONT FOOTREST BAR

43534-00A00-000 4353400A00000

Not available

SCREW

02112-05128-000

02112-05127-000

$3,97

Unit Price

SCREW

02112-05257-000 0211205257000

$2,97

Unit Price

SCREW

02112-05168-000

02112-05167-000

$2,97

Unit Price

SCREW

02112-05308-000

02112-0530A-000

$2,97

Unit Price

RUBBER, FOOTREST

43551-31300-000

43550-31300-000

$34,97

Unit Price

DISCONTINUE
PLATE, FRONT FOOTREST RUBBER

43580-33301-000 4358033301000

Not available

09200-06010-000 0920006010000

$3,97

Unit Price

04111-20208-000

04111-2020A-000

$2,97

Unit Price

SPRING

09448-12014-000 0944812014000

Not available

FITTING PIN
PIN

09200-08002-000 0920008002000

$3,97

Unit Price

WASHER

08322-11088-000

08322-01087-000

$3,97

Unit Price

04111-20208-000

04111-2020A-000

$2,97

Unit Price

HOLDER, FOOTREST

43530-00A00-000 4353000A00000

Not available

BOLT

09100-10191-000 0910010191000

Not available

DISCONTINUE

09101-10033-000

Not available

WASHER

08322-11107-000

08322-01107-000

$2,97

Unit Price

REAR SPENSION WASHER
WASHER

09160-10005-000 0916010005000

$2,97

Unit Price

BUSH

09319-10040-000 0931910040000

Not available

BRACKET, MUFFLER RH

43810-00A00-000 4381000A00000

Not available

BOLT

01107-06257-000

01500-06257-000

$2,97

Unit Price

NUT

08310-11067-000

08310-00067-000

$3,97

Unit Price

BRACKET, MUFFLER LH

43820-00A00-000 4382000A00000

Not available

BOLT

07110-10258-000

07130-10257-000

$6,97

Unit Price

BOLT, CENTER

07110-10358-000 0711010358000

Not available

CAP

43575-34500-000 4357534500000

$3,97

Unit Price

FOOT GUARD, REAR

43671-00A00-000 4367100A00000

Not available

BOLT

01107-08127-000

01500-08127-000

$4,97

Unit Price

8 MM LOCK WASHER

08321-21088-000

08321-01087-000

$3,97

Unit Price

WASHER

08322-11088-000

08322-01087-000

$3,97

Unit Price

DISCONTINUE
FOOTREST ASSY, PILLION RH

43600-31300-000 4360031300000

Not available

FOOTREST ASSY, PILLION LH

43700-31300-000 4370031300000

Not available

BAR, PILLION FOOTREST RH

43610-45501-000 4361045501000

Not available

BAR, PILLION FOOTREST LH

43710-45501-000 4371045501000

Not available

RUBBER, RR FOOTREST
RUBBER, PILLION FOOTREST

43612-31300-000 4361231300000

$17,97

Unit Price

PLATE, RUBBER STOPPER
PLATE, RUBBER STOP

43632-45501-000 4363245501000

$6,97

Unit Price

SCREW

02132-05127-000

02122-05127-000

$3,97

Unit Price

SCREW

02132-05167-000

02122-05167-000

$3,97

Unit Price

BOLT

09111-06035-000 0911106035000

Not available

WASHER

08322-11088-000

08322-01087-000

$3,97

Unit Price

DISCONTINUE
SHIM

09181-08004-000 0918108004000

Not available

SPRING

09440-05028-000 0944005028000

Not available

STEEL BALL

06111-08003-000 0611108003000

$2,97

Unit Price

DISCONTINUE
PLATE, SPRING STOP RH

43635-43400-000 4363543400000

Not available

PLATE, SPRING STOP LH

43735-43400-000 4373543400000

Not available

NUT 6MM
NUT

08319-31067-000 0831931067000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FOOTREST of your Suzuki of GS. Let us know if you have any questions.
