Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

TAIL LIGHT - LICENSE LAMP

WIRING HARNESS FOR SUZUKI GS 1150 1986

RIGHT SWITCH - HANDGRIP

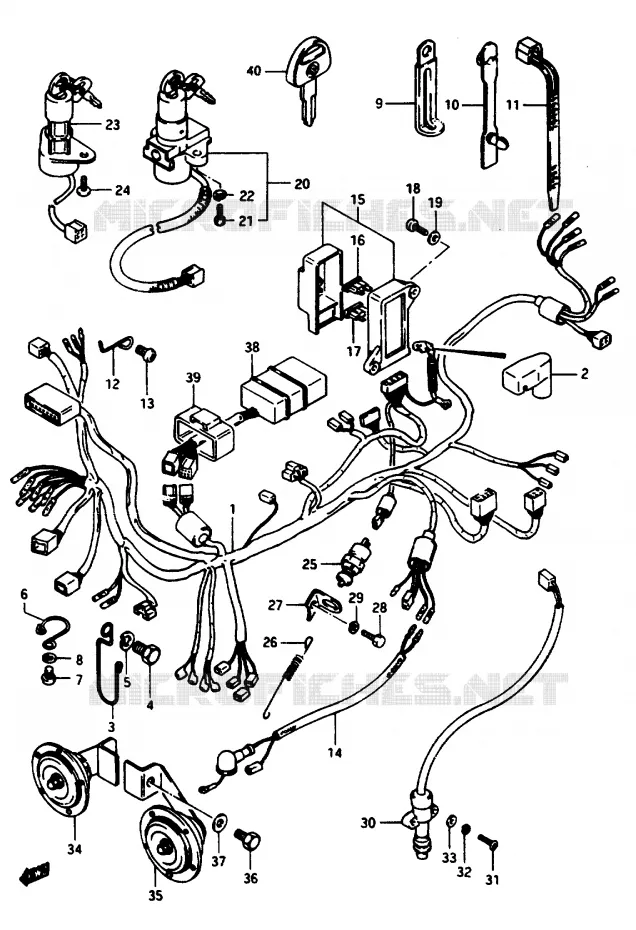

WIRING HARNESS Suzuki MOTO 1150 GS 1986 GS1150EFG(E/F/G)
1
WIRING HARNESS

36610-00A00-000   3661000A00000

3661000A00000
Not available
1
WIRING HARNESS

36610-00A10-000   3661000A10000

3661000A10000
Not available
2
CAP, BATTERY PLUS TERMINAL

33624-38400-000  

33624-43500-000
 3362438400000

Unit Price

3
DISCONTINUE<br />GUIDE, HARNESS
DISCONTINUE
GUIDE, HARNESS

36618-49302-000   3661849302000

3661849302000
Not available
4
BOLT

01107-08165-000  

01500-0816B-000
 0110708165000

Unit Price

5
WASHER, LOCK

08321-21084-000  

08321-0108B-000
 0832121084000

Unit Price

6
CLIP, HARNESS

36619-44002-000   3661944002000

3661944002000
Not available
7
SCREW

02112-06128-000  

02112-06127-000
 0211206128000

Unit Price

8
WASHER

08322-21068-000   0832221068000

0832221068000
Not available
9
CLAMP(L:65)

09404-06402-000  

09404-06039-000
 0940406402000

Unit Price

9
CLAMP(L:80)

09404-06415-000  

09404-06426-000
 0940406415000

Unit Price

9
CLAMP

09404-06419-000  

09404-06435-000
 0940406419000

Unit Price

10
CLAMP, L:88
CLAMP

09407-05403-000   0940705403000

0940705403000

Unit Price

11
BAND,WIRING HARNESS<br />CLAMP
BAND, WIRING HARNESS
CLAMP

09407-14403-000   0940714403000

0940714403000

Unit Price

11
CLAMP,WIRING HARNESS<br />CLAMP (L:165)
CLAMP, WIRING HARNESS
CLAMP (L:165)

09407-18402-000   0940718402000

0940718402000

Unit Price

12
CLIP, HANDLE SWITCH LEAD WIRE

36619-00A00-000   3661900A00000

3661900A00000
Not available
13
SCREW

02112-06125-000  

02112-0612B-000
 0211206125000

Unit Price

14
LEAD WIRE, OIL TEMP GUAGE

36852-49510-000   3685249510000

3685249510000
Not available
15
DISCONTINUE

36740-49401-000  

3674049401000
Not available
16
FUSE (10A)
FUSE (10A)

09481-10101-000   0948110101000

0948110101000

Unit Price

17
FUSE (15A)
FUSE (15A)

09481-15101-000   0948115101000

0948115101000

Unit Price

18
SCREW

02112-06164-000  

02112-0616A-000
 0211206164000

Unit Price

19
WASHER

08322-21064-000  

08322-0106A-000
 0832221064000

Unit Price

20
SWITCH ASSY, IGNITION

37100-00A01-000   3710000A01000

3710000A01000
Not available
21
.BOLT

37152-47011-000   3715247011000

3715247011000
Not available
22
WASHER, LOCK

08321-21067-000  

08321-01067-000
 0832121067000

Unit Price

23
DISCONTINUE
SWITCH ASSY, IGNITION

37110-11501-000   3711011501000

3711011501000
Not available
24
SCREW

02142-06125-000  

02142-0612B-000
 0214206125000

Unit Price

25
SWITCH, BRAKE LAMP

37740-07900-000   3774007900000

3774007900000
Not available
26
BRAKE SWITCH SPRING
SPRING

09443-06016-000   0944306016000

0944306016000

Unit Price

27
BRACKET, BRAKE LAMP SWITCH

43251-00A00-000   4325100A00000

4325100A00000
Not available
28
BOLT

01107-06127-000  

01500-06127-000
 0110706127000

Unit Price

29
WASHER, LOCK

08321-21067-000  

08321-01067-000
 0832121067000

Unit Price

30
DISCONTINUE
SWITCH, SIDE STAND WARNING

37840-43502-000   3784043502000

3784043502000
Not available
31
SCREW

02112-05205-000  

02112-05203-000
 0211205205000

Unit Price

32
WASHER, LOCK

08321-21055-000  

08321-01053-000
 0832121055000

Unit Price

33
WASHER

08322-21055-000  

08322-0105B-000
 0832221055000

Unit Price

34
HORN ASSY, HIGH PITCHED

38501-00A10-000   3850100A10000

3850100A10000
Not available
34
HORN ASSY, HIGH PITCHED

38501-00A20-000   3850100A20000

3850100A20000
Not available
35
HORN ASSY, LOW PITCHED

38502-00A10-000   3850200A10000

3850200A10000
Not available
35
HORN ASSY, LOW PITCHED

38502-00A20-000   3850200A20000

3850200A20000
Not available
36
BOLT

01107-08165-000  

01500-0816B-000
 0110708165000

Unit Price

37
08322-0108A
WASHER, FRONT

08322-11084-000  

0832211084000
Not available
38
DISCONTINUE
RELAY, LAMP OUTAGE WARNING

38860-49500-000   3886049500000

3886049500000
Not available
39
STAY, RELAY

38861-00A00-000   3886100A00000

3886100A00000
Not available
40
KEY, BLANK
KEY, BLANK

37146-47010-000   3714647010000

3714647010000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the WIRING HARNESS of your Suzuki of GS. Let us know if you have any questions.

Genuine parts for Suzuki 1150 GS 1986
