INDICATORS

TAIL LIGHT FOR SUZUKI BX 120 1995

WIRING HARNESS

Item numbers

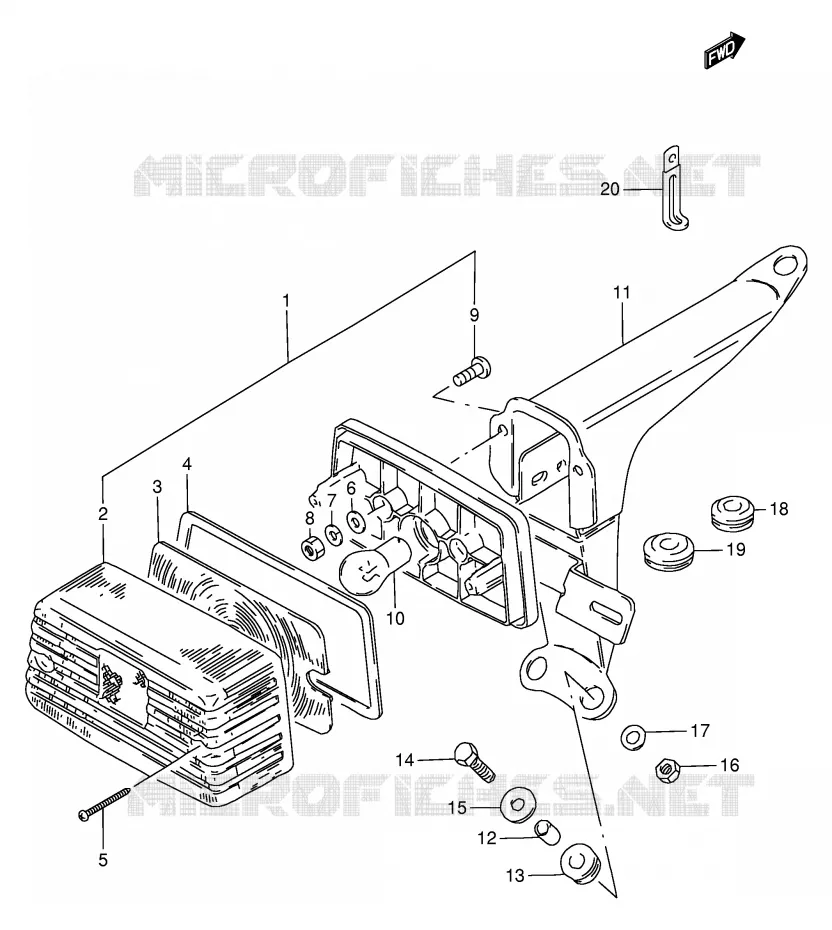

TAIL LIGHT Suzuki MOTO 120 BX 1995 BX120S(P97)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
LAMP UNIT, TAIL

35720-07500-000   3572007500000

3572007500000
Not available
2
LENS

35712-35350-000   3571235350000

3571235350000
Not available
3
LENS, UNDER

35719-35340-000   3571935340000

3571935340000
Not available
4
GASKET

35713-35300-000   3571335300000

3571335300000
Not available
5
SCREW

03212-04359-000   0321204359000

0321204359000
Not available
6
WASHER
WASHER

08322-01057-000   0832201057000

0832201057000

Unit Price

7
WASHER, LOCK

08321-01057-000  

08321-0105A-000
 0832101057000

Unit Price

8
NUT
NUT

08310-00057-000   0831000057000

0831000057000

Unit Price

9
SCREW
SCREW

02112-05167-000   0211205167000

0211205167000

Unit Price

10
BULB (6V, 10/3W)

09471-06008-000   0947106008000

0947106008000
Not available
11
BRACKET UNIT

35730-07500-000   3573007500000

3573007500000
Not available
12
SPACER

35766-26470-000   3576626470000

3576626470000

Unit Price

13
CUSHION, RR COMBINATION
CUSHION

35765-35300-000   3576535300000

3576535300000

Unit Price

14
BOLT
BOLT

01500-06207-000   0150006207000

0150006207000

Unit Price

15
WASHER 6.5X10X1.2<br />WASHER
WASHER 6.5X10X1.2
WASHER

09160-06077-000   0916006077000

0916006077000

Unit Price

16
NUT
NUT

08310-00067-000   0831000067000

0831000067000

Unit Price

17
WASHER

08322-01067-000  

08322-0106A-000
 0832201067000

Unit Price

18
GROMMET, FRONT

09308-09001-000   0930809001000

0930809001000
Not available
19
GROMMET, REAR

09308-09004-000   0930809004000

0930809004000
Not available
20
CLAMP(L:65)

09404-06401-000  

09404-06039-000
 0940406401000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TAIL LIGHT of your Suzuki of BX. Let us know if you have any questions.

Genuine parts for Suzuki 120 BX 1995

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS

Suzuki 120 BX 1995

Select your Suzuki 1995 model

120 BX 1995 BX120S(P97)

Suzuki BX

Displacement: 120 cc
Year: 1995
Model code BX120S(P97)
