Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CYLINDER

CRANKCASE FOR SUZUKI BX 120 1995

CRANKCASE COVER

Item numbers

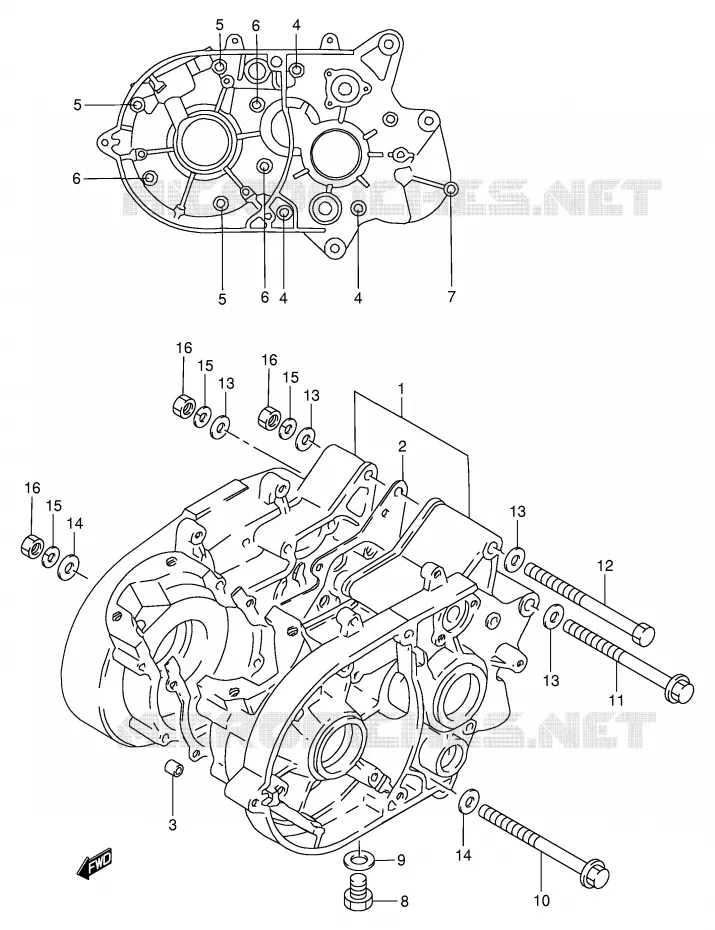

CRANKCASE Suzuki MOTO 120 BX 1995 BX120S(P97)
1
2
3
4
4
4
5
5
5
6
6
6
7
8
9
10
11
12
13
13
13
13
14
14
15
15
15
16
16
16
1
CRANKCASE SET

11300-07881-000   1130007881000

1130007881000
Not available
2
GASKET

11481-07010-000   1148107010000

1148107010000
Not available
3
9 X 12 DOWEL PIN<br />PIN
9 X 12 DOWEL PIN
PIN

04211-09129-000   0421109129000

0421109129000

Unit Price

4
SCREW

02112-06707-000   0211206707000

0211206707000

Unit Price

5
SCREW
SCREW

02112-06507-000   0211206507000

0211206507000

Unit Price

6
SCREW,6X45<br />SCREW
SCREW, 6X45
SCREW

02112-06457-000   0211206457000

0211206457000

Unit Price

7
SCREW
SCREW

02112-06207-000   0211206207000

0211206207000

Unit Price

8
CRANK DRAIN PLUG<br />PLUG, DRAIN
CRANK DRAIN PLUG
PLUG, DRAIN

09247-10001-000   0924710001000

0924710001000

Unit Price

9
CRNK DRAIN PLUG GASK<br />GASKET
CRNK DRAIN PLUG GASK
GASKET

09168-10002-000   0916810002000

0916810002000

Unit Price

10
BOLT
BOLT (8X110)

09103-08134-000   0910308134000

0910308134000

Unit Price

11
BOLT<br />BOLT (8X115)
BOLT
BOLT (8X115)

09103-08098-000   0910308098000

0910308098000

Unit Price

12

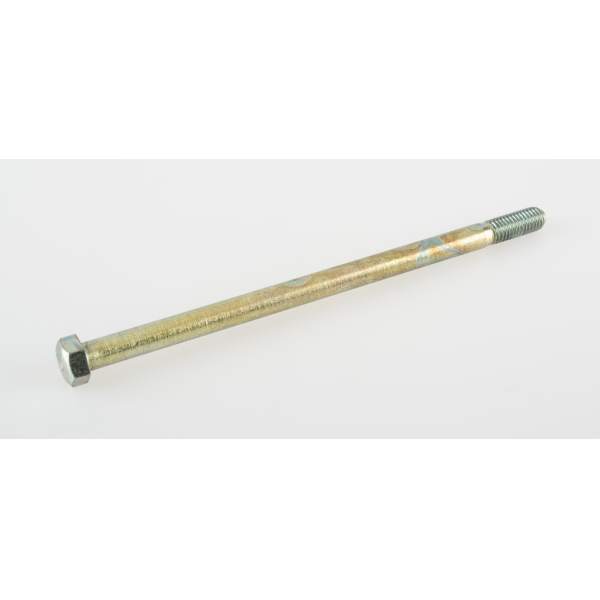

BOLT (8X150)
BOLT (8X150)

09100-08103-000   0910008103000

0910008103000
Not available
13
WASHER
WASHER

08322-01087-000   0832201087000

0832201087000

Unit Price

14
WASHER
WASHER

08322-01087-000   0832201087000

0832201087000

Unit Price

15
8 MM LOCK WASHER<br />LOCK WASHER
8 MM LOCK WASHER
LOCK WASHER

08321-01087-000   0832101087000

0832101087000

Unit Price

16
NUT
NUT

08310-00087-000   0831000087000

0831000087000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKCASE of your Suzuki of BX. Let us know if you have any questions.

Genuine parts for Suzuki 120 BX 1995

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS

Suzuki 120 BX 1995

Select your Suzuki 1995 model

120 BX 1995 BX120S(P97)

Suzuki BX

Displacement: 120 cc
Year: 1995
Model code BX120S(P97)
