REAR CALIPER (GSF1200SAV / SAW / SAX / SAY)

REAR BRAKE MASTER CYLINDER (GSF1200T / V / W / X / Y / ST / SV / SW / SX / SY) FOR SUZUKI BANDIT 1200 1996

REAR BRAKE MASTER CYLINDER (GSF1200SAV / SAW / SAX / SAY)

Item numbers

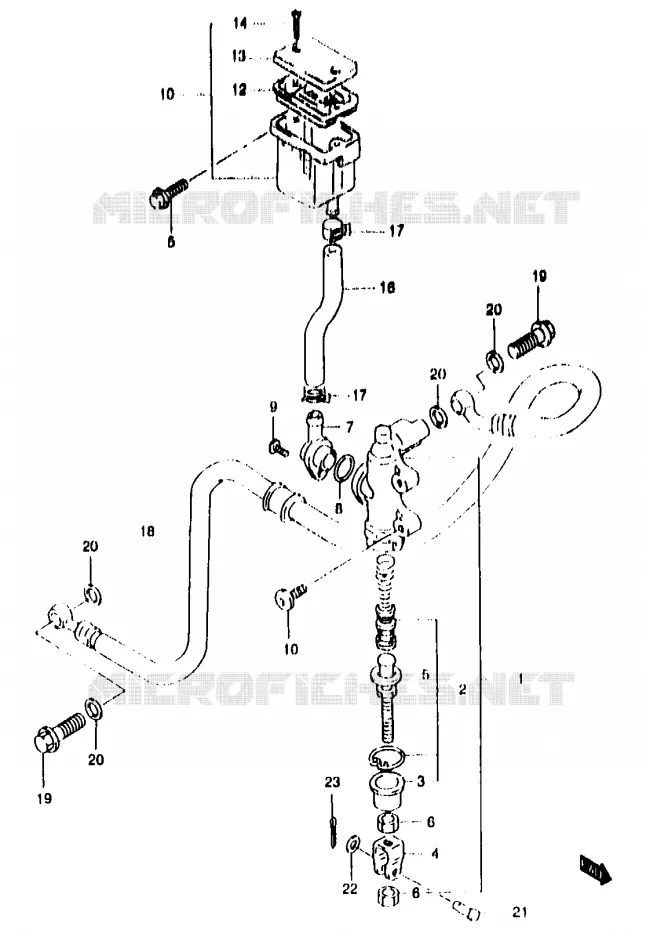

REAR BRAKE MASTER CYLINDER (GSF1200T/V/W/X/Y/ST/SV/SW/SX/SY) Suzuki MOTO 1200 BANDIT 1996 GSF1200T/GSF1200ST
1
2
3
4
5
6
6
7
8
9
10
10
12
13
14
15
16
17
17
18
19
19
19
19
20
20
20
20
21
22
23
1
CYLINDER ASSY, REAR<br />CYLINDER ASSY, REAR MASTER
CYLINDER ASSY, REAR
CYLINDER ASSY, REAR MASTER

69600-17C01-000   6960017C01000

6960017C01000

Unit Price

2
PISTON/CUP SET
PISTON/CUP SET

69600-04820-000  

69600-04821-000
 6960004820000

Unit Price

3
BOOT
BOOT

69691-00A00-000   6969100A00000

6969100A00000

Unit Price

4
YOKE
YOKE

69692-27A30-000   6969227A30000

6969227A30000

Unit Price

5
ROD, PUSH
ROD, PUSH

69670-48B00-000   6967048B00000

6967048B00000

Unit Price

6
NUT
NUT

69693-05A00-000   6969305A00000

6969305A00000

Unit Price

7
CONNECTOR
CONNECTOR

69672-05A00-000   6967205A00000

6967205A00000

Unit Price

8
O RING CONECTOR<br />O RING
O RING CONECTOR
O RING

69686-34200-000   6968634200000

6968634200000

Unit Price

9
SCREW

02112-74123-000  

02112-0412A-000
 0211274123000

Unit Price

10
BOLT (8X20)

09106-08118-000   0910608118000

0910608118000
Not available
11
TANK ASSY, RESERVOIR
TANK ASSY, RESERVOIR

69740-38B21-000   6974038B21000

6974038B21000

Unit Price

12
DIAPHRAGM
DIAPHRAGM

59667-04700-000   5966704700000

5966704700000

Unit Price

13
CAP
CAP

59669-05D00-000   5966905D00000

5966905D00000

Unit Price

14
SCREW
SCREW

69689-04A00-000   6968904A00000

6968904A00000

Unit Price

15
BOLT

01550-06123-000  

01550-0612B-000
 0155006123000

Unit Price

16
HOSE, RESERVOIR TANK
HOSE, RESERVOIR TANK

69731-26E00-000   6973126E00000

6973126E00000

Unit Price

17
CLIP
CLIP

09401-13417-000   0940113417000

0940113417000

Unit Price

18
DISCONTINUE<br />HOSE, REAR BRAKE
DISCONTINUE
HOSE, REAR BRAKE

69480-26E00-000  

6948026E00000
Not available
19
UNION

09360-10039-000  

09360-10061-000
 0936010039000

Unit Price

20
WASHER<br />WASHER (10X15X1.5)
WASHER
WASHER (10X15X1.5)

09161-10009-000   0916110009000

0916110009000

Unit Price

21
PIN

09200-06037-000  

09200-06068-000
 0920006037000

Unit Price

22
WASHER

08322-01063-000  

08322-0106A-000
 0832201063000

Unit Price

23
PIN

04111-20158-000  

04111-2015A-000
 0411120158000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the REAR BRAKE MASTER CYLINDER (GSF1200T/V/W/X/Y/ST/SV/SW/SX/SY) of your Suzuki BANDIT 1200 of BANDIT. Let us know if you have any questions.

Genuine parts for Suzuki 1200 BANDIT 1996
