Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

STEERING COLUMN (GSF1200T / V / W / X / Y / ST / SV / SW / SX / SY) REFER TO FIG.47A(J-6) FOR GSF1200SAV/SAW/SAX/SAY

STEERING COLUMN (GSF1200SAV / SAW / SAX / SAY) FOR SUZUKI BANDIT 1200 1996

FRONT WHEEL (GSF1200T / V / W / X / Y / ST / SV / SW / SX / SY) REFER TO FIG.48A(J-8) FOR GSF1200SAV/SAW/SAX/SAY

Item numbers

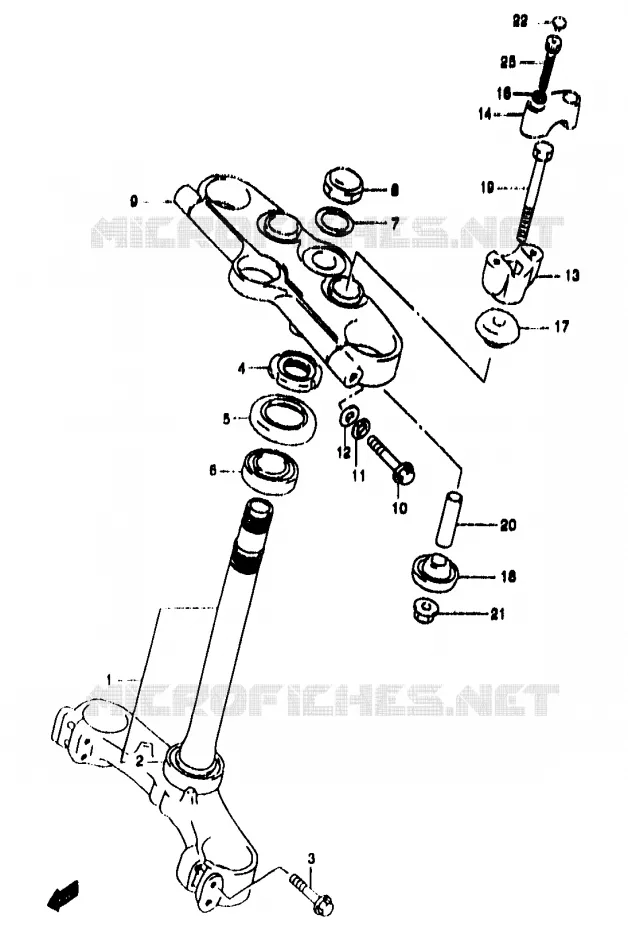

STEERING COLUMN (GSF1200SAV/SAW/SAX/SAY) Suzuki MOTO 1200 BANDIT 1996 GSF1200T/GSF1200ST
1
2
3
4
5
6
7
8
9
10
11
12
13
14
16
17
18
19
20
21
22
1
51410-27E01
51410-27E01

51410-27E01-000  

5141027E01000
Not available
2
BEARING,STEERING LOW
BEARING, STEERING LOW

09265-30009-000  

09265-30034-000
 0926530009000

Unit Price

3
BOLT
BOLT

01550-08407-000   0155008407000

0155008407000

Unit Price

4
NUT,STEERING STEM(25X44X10)<br />NUT, STEERING STEM
NUT, STEERING STEM(25X44X10)
NUT, STEERING STEM

51631-28000-000   5163128000000

5163128000000

Unit Price

5
SEAL,STEERING UPR DUST<br />SEAL, STEERING DUST
SEAL, STEERING UPR DUST
SEAL, STEERING DUST

51643-49002-000   5164349002000

5164349002000

Unit Price

6
BEARING<br />BEARING (25X47X15)
BEARING
BEARING (25X47X15)

09265-25019-000   0926525019000

0926525019000

Unit Price

7
WASHER(22.5X32X1.6)<br />WASHER
WASHER(22.5X32X1.6)
WASHER

51356-24B01-000   5135624B01000

5135624B01000

Unit Price

8
NUT, CAP
NUT, CAP

51353-24B00-000   5135324B00000

5135324B00000

Unit Price

9
DISCONTINUE<br />HEAD, STEERING STEM
DISCONTINUE
HEAD, STEERING STEM

51311-27E00-000   5131127E00000

5131127E00000
Not available
10
BOLT
BOLT

01500-08407-000   0150008407000

0150008407000
Not available
11
8 MM LOCK WASHER<br />WASHERM, LOCK
8 MM LOCK WASHER
WASHERM, LOCK

08321-01087-000   0832101087000

0832101087000

Unit Price

12
WASHER
WASHER

08322-01087-000   0832201087000

0832201087000

Unit Price

13
HOLDER, HANDLE UNDER
HOLDER, HANDLE UNDER

56221-27E00-000   5622127E00000

5622127E00000

Unit Price

14
DISCONTINUE<br />HOLDER, HANDLE UPPER
DISCONTINUE
HOLDER, HANDLE UPPER

56211-27E00-000   5621127E00000

5621127E00000
Not available
15
BOLT
BOLT

07130-08257-000   0713008257000

0713008257000

Unit Price

15
BOLT
BOLT

07130-08307-000   0713008307000

0713008307000

Unit Price

16
WASHER HANDLEBAR<br />WASHER
WASHER HANDLEBAR
WASHER

09164-08015-000   0916408015000

0916408015000

Unit Price

17
DISCONTINUE<br />CUSHION RUBBER, UPPER
DISCONTINUE
CUSHION RUBBER, UPPER

56241-27E00-000  

5624127E00000
Not available
18
CUSHION,RUBBER UNDER
CUSHION, RUBBER UNDER

56242-28C60-000  

56242-28C61-000
 5624228C60000

Unit Price

19
BOLT,HANDLE HOLDER(10X70)<br />BOLT, HANDLE HOLDER
BOLT, HANDLE HOLDER(10X70)
BOLT, HANDLE HOLDER

56321-27E00-000   5632127E00000

5632127E00000

Unit Price

20
SPACER

56243-42A00-000   5624342A00000

5624342A00000

Unit Price

21
NUT
NUT

08319-31107-000   0831931107000

0831931107000

Unit Price

22
CAP
CAP

09250-06011-000   0925006011000

0925006011000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the STEERING COLUMN (GSF1200SAV/SAW/SAX/SAY) of your Suzuki BANDIT 1200 of BANDIT. Let us know if you have any questions.
