Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CYLINDER HEAD COVER

CYLINDER HEAD FOR SUZUKI BANDIT 1200 2003

CYLINDER

Item numbers

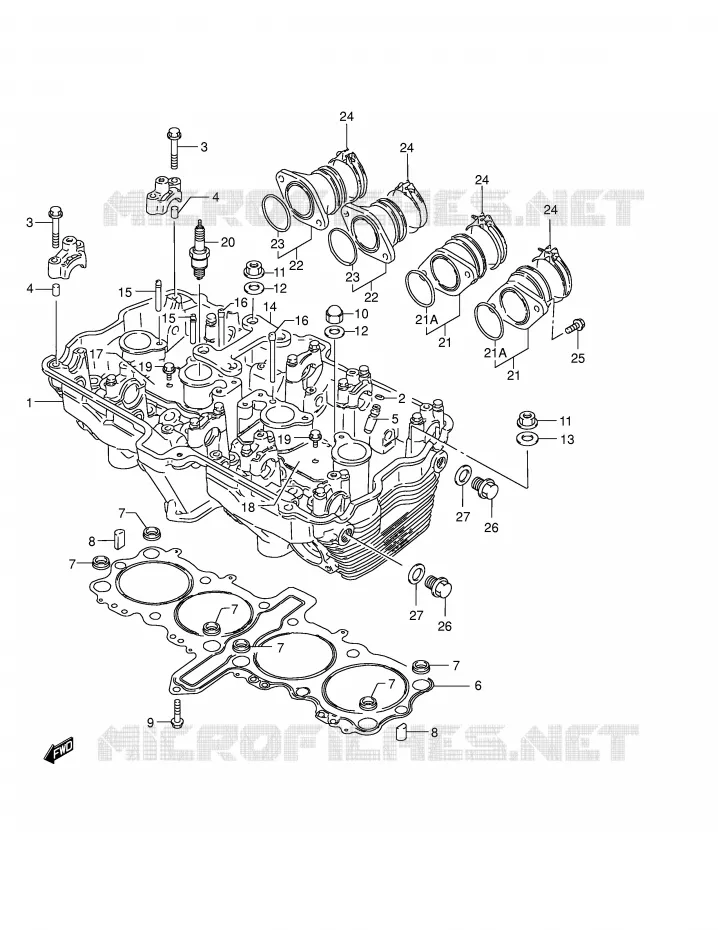

CYLINDER HEAD Suzuki MOTO 1200 BANDIT 2003 GSF1200K3(E2)
1
1
2
3
3
4
4
5
6
7
7
7
7
7
7
8
8
9
10
11
11
12
12
13
14
15
15
16
16
17
18
19
19
20
20
21A
21A
21
21
22
22
23
23
24
24
24
24
25
26
26
26
26
27
27
1
DISCONTINUE
HEAD ASSY, CYLINDER

11100-27E60-000   1110027E60000

1110027E60000
Not available
2
RING,VALVE GUIDE<br />SNAP RING
RING, VALVE GUIDE
SNAP RING

09381-10004-000   0938110004000

0938110004000

Unit Price

3
CAM SFT HOUSING BOLT<br />BOLT (6X39)
CAM SFT HOUSING BOLT
BOLT (6X39)

09103-06026-000   0910306026000

0910306026000

Unit Price

4
PIN (8X11)
PIN (8X11)

09206-08001-000   0920608001000

0920608001000

Unit Price

5
GUIDE,VALVE<br />GUIDE, VALVE (OS 0.3)
GUIDE, VALVE
GUIDE, VALVE (OS 0.3)

11116-06B70-000   1111606B70000

1111606B70000

Unit Price

6
GASKET,CYLINDER HEAD<br />GASKET
GASKET, CYLINDER HEAD
GASKET

11141-32F01-000   1114132F01000

1114132F01000

Unit Price

7
O RING,HEAD GASKET<br />O RING
O RING, HEAD GASKET
O RING

11143-32F00-000   1114332F00000

1114332F00000

Unit Price

8
PIN
PIN

09209-11007-000   0920911007000

0920911007000

Unit Price

9
BOLT

01550-06303-000  

01550-0630A-000
 0155006303000

Unit Price

10
NUT
NUT

09159-10069-000   0915910069000

0915910069000

Unit Price

11
NUT

08316-10103-000  

08316-1010B-000
 0831610103000

Unit Price

12
GASKET 10.2X20X2.3<br />GASKET
GASKET 10.2X20X2.3
GASKET

09168-10031-000   0916810031000

0916810031000

Unit Price

13
WASHER

09160-10060-000  

09160-10039-000
 0916010060000

Unit Price

14
DISCONTINUE<br />PLATE, REINFORCEMENT
DISCONTINUE
PLATE, REINFORCEMENT

11138-40C10-000   1113840C10000

1113840C10000
Not available
15
PIPE,OIL NO.1<br />PIPE, OIL NO.1,2
PIPE, OIL NO.1
PIPE, OIL NO.1, 2

11131-27A00-000   1113127A00000

1113127A00000

Unit Price

16
PIPE, OIL NO.3
PIPE, OIL NO.3

11133-27A00-000   1113327A00000

1113327A00000

Unit Price

17
DISCONTINUE<br />PLATE, OIL PIPE RH
DISCONTINUE
PLATE, OIL PIPE RH

11135-27A02-000   1113527A02000

1113527A02000
Not available
18
PLATE,OIL PIPE,L<br />PLATE, OIL PIPE LH
PLATE, OIL PIPE, L
PLATE, OIL PIPE LH

11136-27A02-000   1113627A02000

1113627A02000

Unit Price

19
BOLT

01550-06123-000  

01550-0612B-000
 0155006123000

Unit Price

20
JR10B, NGK
SPARK PLUG (NGK, JR10B)

09482-00391-000   0948200391000

0948200391000

Unit Price

20
JR9B,NGK<br />SPARK PLUG (NGK,JR9B)
JR9B, NGK
SPARK PLUG (NGK, JR9B)

09482-00389-000   0948200389000

0948200389000

Unit Price

21
PIPE ASSY, INTAKE, L

13101-32F00-000  

13101-32F01-000
 1310132F00000

Unit Price

21A
O RING

09280-42003-000   0928042003000

0928042003000

Unit Price

22
PIPE ASSY, INTAKE, R

13103-32F00-000  

13103-32F01-000
 1310332F00000

Unit Price

23
O RING
O RING (D:2.4, ID:41.7)

09280-42003-000   0928042003000

0928042003000

Unit Price

24
CLAMP
CLAMP

09402-52208-000   0940252208000

0940252208000

Unit Price

25
BOLT

07120-06163-000  

07120-06167-000
 0712006163000

Unit Price

26
PLUG
PLUG

09248-14010-000   0924814010000

0924814010000

Unit Price

26
09248-14011
PLUG

09248-14012-000  

0924814012000
Not available
27
GASKET,13.8X18.8X0.4<br />GASKET
GASKET, 13.8X18.8X0.4
GASKET

09168-14002-000   0916814002000

0916814002000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CYLINDER HEAD of your Suzuki BANDIT 1200 of BANDIT. Let us know if you have any questions.

Genuine parts for Suzuki 1200 BANDIT 2003
