MUFFLER

OIL COOLER FOR SUZUKI BANDIT 1200 2003

FUEL EVAP SYSTEM

Item numbers

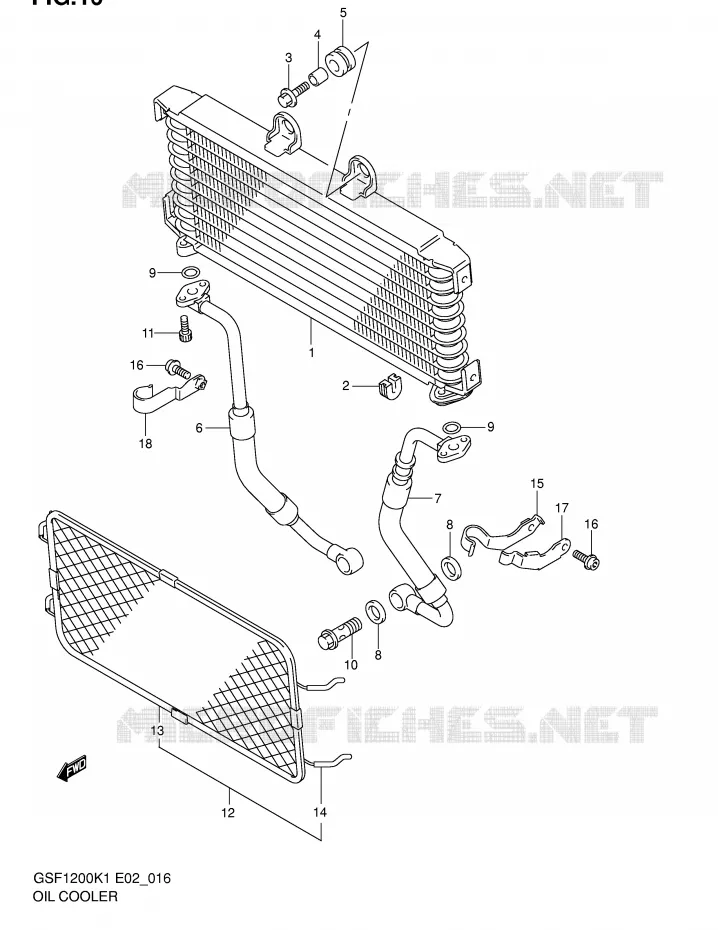

OIL COOLER Suzuki MOTO 1200 BANDIT 2003 GSF1200K3(E2)
1
1
2
3
3
4
5
6
6
6
7
7
7
8
8
9
9
10
11
12
13
14
15
16
16
16
16
17
18
1
DISCONTINUE

16600-32F10-000  

1660032F10000
Not available
2
CUSHION,OIL COOLER NO.2<br />CUSHION
CUSHION, OIL COOLER NO.2
CUSHION

16628-27A00-000   1662827A00000

1662827A00000

Unit Price

3
BOLT,6X20,W/PL WASHE<br />BOLT (6X20)
BOLT, 6X20, W/PL WASHE
BOLT (6X20)

09116-06115-000   0911606115000

0911606115000

Unit Price

3
BOLT<br />BOLT (6X20)
BOLT
BOLT (6X20)

09116-06167-000   0911606167000

0911606167000

Unit Price

4
SPACER<br />SPACER (6.5X10X10)
SPACER
SPACER (6.5X10X10)

09180-06310-000   0918006310000

0918006310000

Unit Price

5
CUSHION
CUSHION

09320-10015-000   0932010015000

0932010015000

Unit Price

6
HOSE, OIL COOLER, R

16460-32F00-000  

16460-47F10-000
 1646032F00000

Unit Price

7
DISCONTINUE

16470-32F00-000  

1647032F00000
Not available
8
GASKET OIL GALLERY<br />GASKET (16X22X2)
GASKET OIL GALLERY
GASKET (16X22X2)

09168-16002-000   0916816002000

0916816002000

Unit Price

9
O-RING<br />O RING (D:2.4,ID:11.8)
O-RING
O RING (D:2.4, ID:11.8)

09280-12012-000   0928012012000

0928012012000

Unit Price

10
BOLT<br />BOLT (16X32)
BOLT
BOLT (16X32)

09360-16002-000   0936016002000

0936016002000

Unit Price

11
BOLT

07130-06163-000  

07130-0616B-000
 0713006163000

Unit Price

12
DISCONTINUE
GUARD, OIL COOLER

16650-32F00-000  

1665032F00000
Not available
13
PROTECTOR,CTR
PROTECTOR, CTR

17765-09F00-000  

17765-09F01-000
 1776509F00000

Unit Price

14
HOSE
HOSE

09352-30503-600  

09352-30504-600
 0935230503600

Unit Price

15
DISCONTINUE
CLAMP, OIL HOSE LH

16490-32F01-000   1649032F01000

1649032F01000
Not available
16
BOLT, OIL COOLER
BOLT

09106-06099-000   0910606099000

0910606099000
Not available
17
DISCONTINUE
GUIDE, OIL HOSE LH

16492-32F00-000   1649232F00000

1649232F00000
Not available
18
DISCONTINUE
CLAMP, OIL HOSE

16490-47F00-000   1649047F00000

1649047F00000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the OIL COOLER of your Suzuki BANDIT 1200 of BANDIT. Let us know if you have any questions.

Genuine parts for Suzuki 1200 BANDIT 2003
