FRAME FOR SUZUKI DR-Z 125 2004

FUEL TANK (MODEL K3) REFER TO FIG.23A(D- 9) FOR MODEL K4

Item numbers

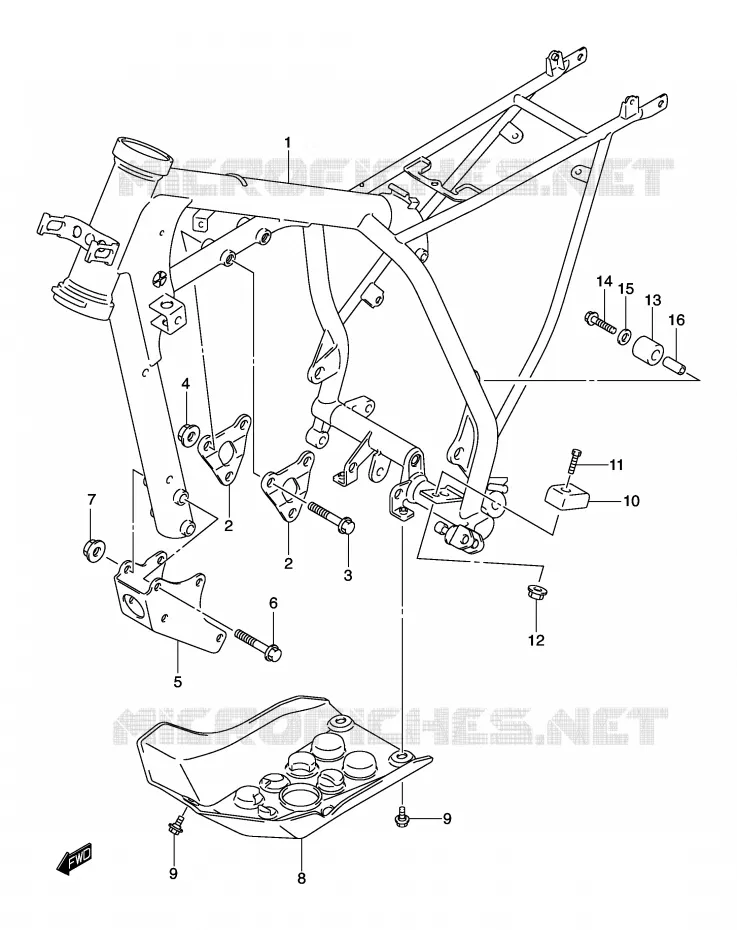

FRAME Suzuki MOTO 125 DR-Z 2004 DR-Z125LK4(E3/E28)
1
2
2
3
4
5
6
7
8
9
9
10
11
12
13
14
15
16
1
DISCONTINUE
FRAME (GRAY)

41100-08G00-YU8   4110008G00YU8

4110008G00YU8
Not available
2
PLATE, ENG MTG UPR
PLATE, MOUNT UPPER

41991-08G00-000   4199108G00000

4199108G00000

Unit Price

3
BOLT
BOLT, UPPER

09103-08332-000   0910308332000

0910308332000

Unit Price

4
NUT

08319-31088-000   0831931088000

0831931088000
Not available
5
PLATE, ENG MTG LWR
PLATE, MOUNT LOWER (GRAY)

41992-08G00-YU8   4199208G00YU8

4199208G00YU8

Unit Price

6
BOLT(8X65)
BOLT, LOWER

09103-08354-000   0910308354000

0910308354000

Unit Price

7
NUT

08319-31088-000   0831931088000

0831931088000
Not available
8
PROTECTOR, ENGINE

42511-08G00-000   4251108G00000

4251108G00000

Unit Price

9
BOLT,6X12
BOLT, 6X12

63161-43E00-000  

09111-06107-000
 6316143E00000

Unit Price

10
GUIDE, CH LENGTH CONTROL LWR
GUIDE, CHAIN CONTROL

43912-42A00-000   4391242A00000

4391242A00000

Unit Price

11
BOLT(6X16)
BOLT, LOWER

09128-06049-000   0912806049000

0912806049000

Unit Price

12
NUT

08319-31063-000  

08319-3106A-000
 0831931063000

Unit Price

13
ROLLER, CHAIN CONTROL UPR
ROLLER, CHAIN UPPER

43911-13E10-000   4391113E10000

4391113E10000

Unit Price

14
BOLT 8X38<br />BOLT
BOLT 8X38
BOLT

09103-08178-000   0910308178000

0910308178000

Unit Price

15
WASHER THRUST<br />WASHER
WASHER THRUST
WASHER

08211-08201-000   0821108201000

0821108201000

Unit Price

16
SPACER

09180-08215-000   0918008215000

0918008215000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Suzuki 125 DR-Z 2004
