Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

REAR FENDER (MODEL K4 / K5 / K6) COLOR : HU8=30H(WHITE),YJ4(BLUE)

REAR FENDER (MODEL K7) FOR SUZUKI DR-Z 125 2004

LABEL

Item numbers

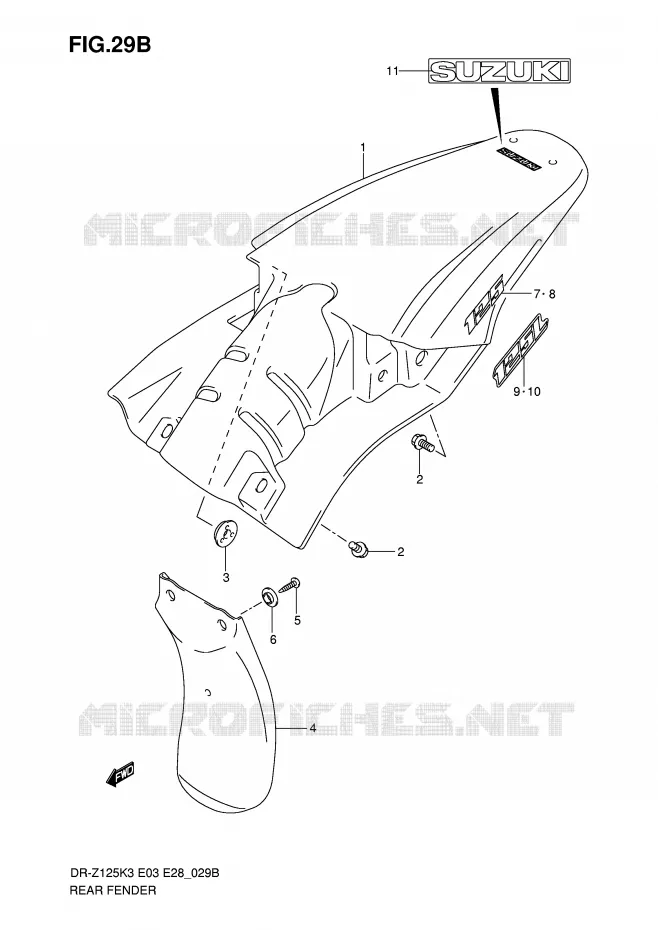

REAR FENDER (MODEL K7) Suzuki MOTO 125 DR-Z 2004 DR-Z125LK4(E3/E28)
1
1
1
1
2
2
3
4
5
6
7
7
8
8
9
9
10
10
11
11
1
FENDER, REAR (BLACK)

63113-08GA0-019   6311308GA0019

6311308GA0019
Not available
1
FENDER, REAR (YELLOW)

63113-08GA0-YU1   6311308GA0YU1

6311308GA0YU1
Not available
1
63113-08G10-019
FENDER, REAR (BLACK)

63113-08GB0-019   6311308GB0019

6311308GB0019
Not available
1
63113-08G10-YU1
FENDER, REAR (YELLOW)

63113-08GB0-YU1   6311308GB0YU1

6311308GB0YU1
Not available
2
BOLT,6X12
BOLT, 6X12

63161-43E00-000  

09111-06107-000
 6316143E00000

Unit Price

3
WASHER 8.2X26X1.6
WASHER, RH

09169-08045-000   0916908045000

0916908045000

Unit Price

4
MUDGUARD, RR FENDER FR
MUD GUARD, REAR FENDER FRONT

63411-29F00-000   6341129F00000

6341129F00000

Unit Price

5
SCREW

03541-05163-000  

03541-0516B-000
 0354105163000

Unit Price

6
WASHER

09169-06045-000   0916906045000

0916906045000

Unit Price

7
DISCONTINUE
EMBLEM, RH

68171-08G40-BJB   6817108G40BJB

6817108G40BJB
Not available
7
DISCONTINUE
EMBLEM, RH

68171-08G40-GY8   6817108G40GY8

6817108G40GY8
Not available
8
DISCONTINUE
EMBLEM, LH

68172-08G40-BJB   6817208G40BJB

6817208G40BJB
Not available
8
DISCONTINUE
EMBLEM, LH

68172-08G40-GY8   6817208G40GY8

6817208G40GY8
Not available
9
DISCONTINUE
EMBLEM, RH

68171-08G50-BJB   6817108G50BJB

6817108G50BJB
Not available
9
DISCONTINUE
EMBLEM, RH

68171-08G50-GY8   6817108G50GY8

6817108G50GY8
Not available
10
DISCONTINUE
EMBLEM, LH

68172-08G50-BJB   6817208G50BJB

6817208G50BJB
Not available
10
DISCONTINUE
EMBLEM, LH

68172-08G50-GY8   6817208G50GY8

6817208G50GY8
Not available
11
DISCONTINUE
EMBLEM, "SUZUKI"

68721-05D00-BJB  

6872105D00BJB
Not available
11
EMBLEM, SUZUKI
EMBLEM, "SUZUKI"

68721-05D00-GY8  

6872105D00GY8
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Suzuki 125 DR-Z 2004
