STEERING COLUMN (DR-Z125LL2 E33)

FRONT WHEEL (DR-Z125L2 E28) FOR SUZUKI DR-Z 125 2012

FRONT WHEEL (DR-Z125L2 E33)

Item numbers

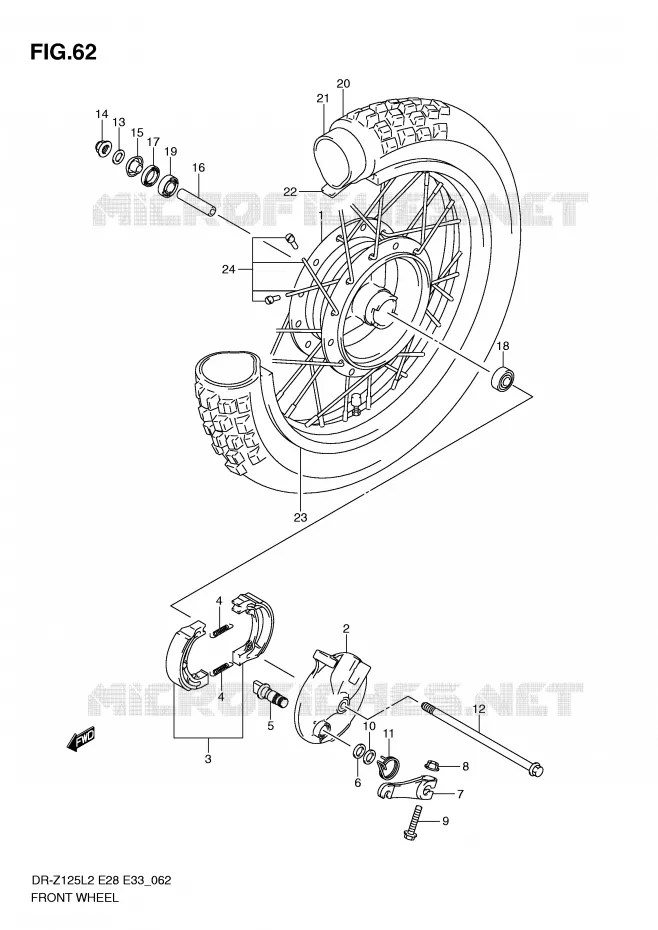

FRONT WHEEL (DR-Z125L2 E28) Suzuki MOTO 125 DR-Z 2012 DR-Z125LL2(E28)
1
2
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
HUB, FR WHEEL
HUB, FRONT WHEEL

54110-09401-000   5411009401000

5411009401000

Unit Price

2
PANEL, FR BRAKE ANCHOR
PANEL, FRONT BRAKE ANCHOR

54210-08G00-000   5421008G00000

5421008G00000

Unit Price

3
SHOE SET, BRAKE

54401-43820-000   5440143820000

5440143820000

Unit Price

4
SPRING

09443-07044-000   0944307044000

0944307044000

Unit Price

5
CAM, FR BRAKE
CAM, FRONT BRAKE

54441-35401-000   5444135401000

5444135401000

Unit Price

6
O RING,02.5,ID:13.8<br />DUST SEAL (ID:13.8,D:2.50)
O RING, 02.5, ID:13.8
DUST SEAL (ID:13.8, D:2.50)

09280-14011-000   0928014011000

0928014011000

Unit Price

7
LEVER, FR BRAKE CAM
LEVER, BRAKE CAM

54451-26500-000   5445126500000

5445126500000

Unit Price

8
NUT

08316-1006A-000   083161006A000

083161006A000

Unit Price

9
BOLT

01550-0635A-000   015500635A000

015500635A000

Unit Price

10
WASHER

09160-14055-000   0916014055000

0916014055000

Unit Price

11
SPRING, FR BK CAM LEVER RETURN
SPRING, RETURN

54484-08G00-000   5448408G00000

5448408G00000

Unit Price

12
AXLE, FR
AXLE, FRONT

54711-08G00-000   5471108G00000

5471108G00000

Unit Price

13
REAR SPENSION WASHER
WASHER

09160-10005-000   0916010005000

0916010005000

Unit Price

14
NUT
NUT

08319-3110A-000   083193110A000

083193110A000

Unit Price

15
SPACER, FR AXLE, R
SPACER, AXLE RH

54740-26101-000   5474026101000

5474026101000

Unit Price

16
SPACER
SPACER (10.2X16X51)

09180-10148-000   0918010148000

0918010148000

Unit Price

17
BEARING OIL SEAL<br />OIL SEAL (15X31X9.5)
BEARING OIL SEAL
OIL SEAL (15X31X9.5)

09284-15001-000   0928415001000

0928415001000

Unit Price

18
08143-6300B<br />BEARING, LH
08143-6300B
BEARING, LH

08143-63007-000   0814363007000

0814363007000
Not available
19
BALL BEARING

08113-62007-000  

08113-62000-000
 0811362007000

Unit Price

20
TIRE, FR
TIRE, FRONT, 70/100-17 40M IRC

55110-08G00-000   5511008G00000

5511008G00000

Unit Price

21
55200-08G01
TUBE ASSY, WHEEL INNER

55200-08G00-000   5520008G00000

5520008G00000
Not available
22
DISCONTINUE
PROTECTOR, INNER TUBE

55261-08G00-000   5526108G00000

5526108G00000
Not available
23
RIM, FR WHEEL(17X1.40)
RIM, WHEEL (17X1.40)

55311-08G20-000   5531108G20000

5531108G20000

Unit Price

24
SPOKE SET, FR WHEEL
SPOKE SET, FRONT WHEEL

55320-08G20-000   5532008G20000

5532008G20000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
