REAR WHEEL (DR-Z125L2 E33)

REAR WHEEL (DR-Z125LL2 E28) FOR SUZUKI DR-Z 125 2012

REAR WHEEL (DR-Z125LL2 E33)

Item numbers

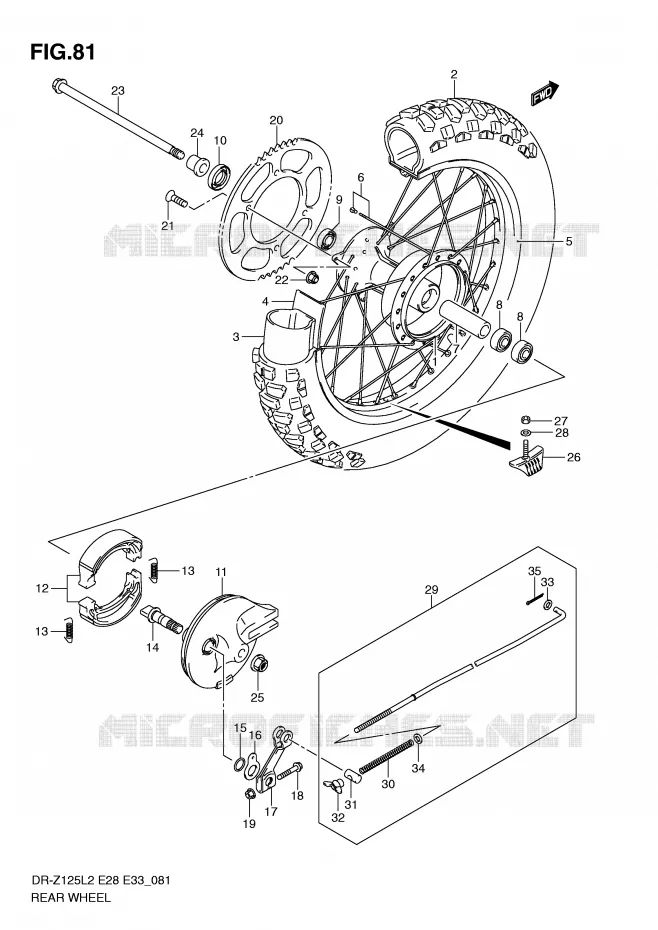

REAR WHEEL (DR-Z125LL2 E28) Suzuki MOTO 125 DR-Z 2012 DR-Z125LL2(E28)
1
2
3
4
5
6
7
8
8
9
10
11
12
13
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
1
HUB, RR WHEEL
HUB, REAR WHEEL

64110-08G10-000   6411008G10000

6411008G10000

Unit Price

2
65110-08G20
TIRE, REAR, 90/100-16 IRC

65110-08G10-000   6511008G10000

6511008G10000
Not available
3
65200-08G11
TUBE ASSY, WHEEL INNER

65200-08G10-000   6520008G10000

6520008G10000
Not available
4
DISCONTINUE
PROTECTOR, WHEEL INNER TUBE

65261-08G10-000   6526108G10000

6526108G10000
Not available
5
RIM, RR WHEEL(16X1.60)
RIM, REAR WHEEL (16X1.60)

65311-08G30-000   6531108G30000

6531108G30000

Unit Price

6
SPOKE SET, RR WHEEL
SPOKE ASSY, REAR WHEEL

65320-08G30-000   6532008G30000

6532008G30000

Unit Price

7
SPACER, REAR HUB BEAR
SPACER (12.5X19X95.5)

09180-12151-000   0918012151000

0918012151000

Unit Price

8
BEARING
BEARING

08143-62017-000  

08143-6201B-000
 0814362017000

Unit Price

9
BEARING,REAR HUB,L
BEARING, REAR HUB, L

08123-63017-000  

08123-6301B-000
 0812363017000

Unit Price

10
KICK SHAFT OIL SEAL<br />SEAL, REAR HUB BEARING (20X37X7)
KICK SHAFT OIL SEAL
SEAL, REAR HUB BEARING (20X37X7)

09283-20025-000   0928320025000

0928320025000

Unit Price

11
PANEL, RR BRAKE ANCHOR
PANEL, REAR BRAKE ANCHOR

64210-08G00-000   6421008G00000

6421008G00000

Unit Price

12
SHOE SET, BRAKE

54401-43840-000   5440143840000

5440143840000

Unit Price

13
SPRING

09443-07044-000   0944307044000

0944307044000

Unit Price

14
CAM, RR BRAKE
CAM, BRAKE

64441-13G00-000   6444113G00000

6444113G00000

Unit Price

15
O RING,02.5,ID:13.8<br />O RING (D:2.5,ID:13.8)
O RING, 02.5, ID:13.8
O RING (D:2.5, ID:13.8)

09280-14011-000   0928014011000

0928014011000

Unit Price

16
PLATE, BRAKE LINING INDICATOR

54492-13G00-000   5449213G00000

5449213G00000

Unit Price

17
LEVER, RR BRAKE CAM
LEVER, REAR BRAKE CAM

64451-08G00-000   6445108G00000

6445108G00000

Unit Price

18
BOLT

01550-0635A-000   015500635A000

015500635A000

Unit Price

19
NUT

08316-1006A-000   083161006A000

083161006A000

Unit Price

20
SPROCKET, RR(57T-428)
SPROCKET, REAR (NT:57)

64511-08G10-000   6451108G10000

6451108G10000

Unit Price

21
SCREW<br />SCREW (8X30.5)
SCREW
SCREW (8X30.5)

09120-08010-000   0912008010000

0912008010000

Unit Price

22
NUT
NUT

08319-3108A-000   083193108A000

083193108A000

Unit Price

23
AXLE, RR
AXLE, REAR

64711-08G00-000   6471108G00000

6471108G00000

Unit Price

24
SPACER, RR AXLE
SPACER, AXLE

64751-08G00-000   6475108G00000

6475108G00000

Unit Price

25
NUT
NUT

08319-3112A-000   083193112A000

083193112A000

Unit Price

26
STOPPER, BEAD

65270-08G00-000   6527008G00000

6527008G00000

Unit Price

27
NUT
NUT, BEAD STOPPER

08310-0008A-000   083100008A000

083100008A000

Unit Price

28
WASHER
WASHER

08322-0108A-000  

083220108A000
Not available
29
ROD ASSY, RR BRAKE
ROD ASSY, REAR BRAKE

43300-08G10-000   4330008G10000

4330008G10000

Unit Price

30
BRK ROD ADJ SPRING<br />SPRING
BRK ROD ADJ SPRING
SPRING

09440-09004-000   0944009004000

0944009004000

Unit Price

31
BRAKE CAM LEVER PIN<br />PIN
BRAKE CAM LEVER PIN
PIN

09209-11002-000   0920911002000

0920911002000

Unit Price

32
CABLE ADJUST NUT
NUT

09144-06005-000   0914406005000

0914406005000

Unit Price

33
WASHER

08322-0105A-000  

08322-0105B-000
 083220105A000

Unit Price

34
WASHER<br />WASHER, REAR
WASHER
WASHER, REAR

08322-0106A-000   083220106A000

083220106A000

Unit Price

35
PIN<br />COTTER PIN
PIN
COTTER PIN

04111-2020A-000   041112020A000

041112020A000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
