TIMING

CARBURETOR FOR SUZUKI DR-Z 125 2021

AIR FILTER

Item numbers

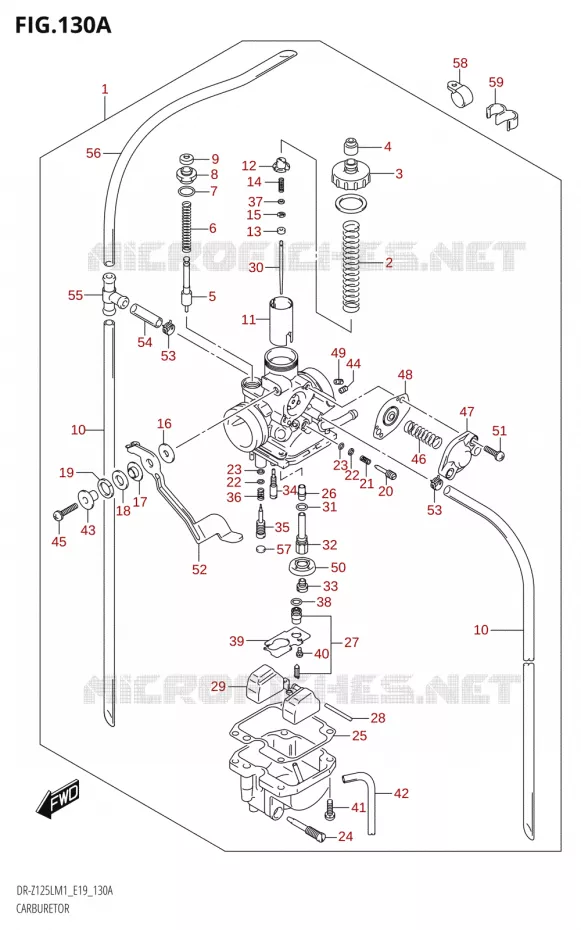

CARBURETOR Suzuki MOTO 125 DR-Z 2021 DR-Z125L M1
1
2
3
4
5
6
7
8
9
10
10
11
12
13
14
15
16
17
18
19
20
21
22
22
23
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
53
54
55
56
57
58
59
1
CARBURETOR ASSY

13200-08G02-000   1320008G02000

1320008G02000

Unit Price

2
.SPRING

13573-08G00-000   1357308G00000

1357308G00000

Unit Price

3
.MIXING CAP ASSY

13261-08G00-000   1326108G00000

1326108G00000

Unit Price

4
.CAP

13681-04011-000   1368104011000

1368104011000

Unit Price

5
.PLUNGER ASSY
.PLUNGER ASSY

13411-05320-000   1341105320000

1341105320000

Unit Price

6
.SPRING

13417-08G00-000   1341708G00000

1341708G00000

Unit Price

7
.O RING

13278-47091-000   1327847091000

1327847091000

Unit Price

8
GUIDE SCREW,PLUNGER<br />.HOLDER,GUIDE
GUIDE SCREW, PLUNGER
.HOLDER, GUIDE

13418-44080-000   1341844080000

1341844080000

Unit Price

9
.CAP,STARTER VALVE
.CAP, STARTER VALVE

13682-31210-000   1368231210000

1368231210000

Unit Price

10
.HOSE (5X8X475)

13686-08G20-000   1368608G20000

1368608G20000

Unit Price

11
.VALVE, PISTON

13551-08G00-000   1355108G00000

1355108G00000

Unit Price

12
.HOLDER

13389-08G00-000   1338908G00000

1338908G00000

Unit Price

13
.RING
.RING

13387-47010-000   1338747010000

1338747010000

Unit Price

14
.SPRING
.SPRING

13481-33E00-000   1348133E00000

1348133E00000

Unit Price

15
.E RING
.E RING

13394-40D20-000   1339440D20000

1339440D20000

Unit Price

16
.PLATE

13421-05320-000   1342105320000

1342105320000

Unit Price

17
.RING

13432-05320-000   1343205320000

1343205320000

Unit Price

18
.WASHER

13589-47070-000   1358947070000

1358947070000

Unit Price

19
8 MM LOCK WASHER<br />.WASHER,LOCK
8 MM LOCK WASHER
.WASHER, LOCK

08321-01087-000   0832101087000

0832101087000

Unit Price

20
.SCREW, ADJUST

13267-08G00-000   1326708G00000

1326708G00000

Unit Price

21
.SPRING

13268-08G00-000   1326808G00000

1326808G00000

Unit Price

22
WASHER<br />.WASHER (14X17)
WASHER
.WASHER (14X17)

13291-29900-000   1329129900000

1329129900000

Unit Price

23
O RING, PILOT AIR SCREW
.O RING

13295-29901-000   1329529901000

1329529901000

Unit Price

24
.SCREW

13247-08G00-000   1324708G00000

1324708G00000

Unit Price

25
.GASKET

13251-29B00-000   1325129B00000

1325129B00000

Unit Price

26
JET, NEEDLE
.NEEDLE, JET

13341-08G00-000   1334108G00000

1334108G00000

Unit Price

27
.VALVE ASSY, NEEDLE

13370-08G00-000   1337008G00000

1337008G00000

Unit Price

28
.PIN,FLOAT
.PIN, FLOAT

13254-01010-000   1325401010000

1325401010000

Unit Price

29
.FLOAT ASSY

13240-08G00-000   1324008G00000

1324008G00000

Unit Price

30
.JET, NEEDLE (5HGM74)

13383-08G00-000   1338308G00000

1338308G00000

Unit Price

31
.O RING

13246-43011-000   1324643011000

1324643011000

Unit Price

32
.JET, HOLDER

13385-08G00-000   1338508G00000

1338508G00000

Unit Price

33
JET,MAIN<br />.JET,MAIN (#102.5)
JET, MAIN
.JET, MAIN (#102.5)

09491-20012-000   0949120012000

0949120012000

Unit Price

34
.JET, PILOT (17.5)

09492-17017-000   0949217017000

0949217017000

Unit Price

35
.ADJUSTER

13279-08G00-000   1327908G00000

1327908G00000

Unit Price

36
SPRING<br />.SPRING (NT:45)
SPRING
.SPRING (NT:45)

13268-47070-000   1326847070000

1326847070000

Unit Price

37
.WASHER

13382-08G00-000   1338208G00000

1338208G00000

Unit Price

38
.O-RING
.O-RING

13374-46710-000   1337446710000

1337446710000

Unit Price

39
.PLATE

13259-29B10-000   1325929B10000

1325929B10000

Unit Price

40
SCREW

13601-03068-000  

02112-03066-000
 1360103068000

Unit Price

41
.SCREW
.SCREW

13601-04148-000   1360104148000

1360104148000

Unit Price

42
.HOSE (3X5X650)
.HOSE (3X5X650)

13684-40A00-000   1368440A00000

1368440A00000

Unit Price

43
.RING

13424-05320-000   1342405320000

1342405320000

Unit Price

44
JET, AIR(85.0)
.JET, AIR (85)

09493-85001-000   0949385001000

0949385001000

Unit Price

45
.SCREW

13601-44A10-000   1360144A10000

1360144A10000

Unit Price

46
.SPRING

13481-08G00-000   1348108G00000

1348108G00000

Unit Price

47
.COVER ASSY

13502-10F00-000   1350210F00000

1350210F00000

Unit Price

48
.DIAPHRAGM ASSY

13480-10F01-000   1348010F01000

1348010F01000

Unit Price

49
JET, POWER(145)
.JET, POWER (#145)

09492-29002-000   0949229002000

0949229002000

Unit Price

50
.HOLDER

13387-08G00-000   1338708G00000

1338708G00000

Unit Price

51
.SCREW

13601-08G00-000   1360108G00000

1360108G00000

Unit Price

52
.LEVER

13413-08G00-000   1341308G00000

1341308G00000

Unit Price

53
.CLIP

13671-08G00-000   1367108G00000

1367108G00000

Unit Price

54
.HOSE (5X8X25)

13686-08G00-000   1368608G00000

1368608G00000

Unit Price

55
.NIPPLE
.NIPPLE

13685-48B00-000   1368548B00000

1368548B00000

Unit Price

56
.HOSE (5X8X375)

13686-08G10-000   1368608G10000

1368608G10000

Unit Price

57
.PLUG
.PLUG

13281-05A00-000   1328105A00000

1328105A00000

Unit Price

58
CLAMP

09403-22405-000   0940322405000

0940322405000

Unit Price

59
CLAMP<br />CLAMP (ID:7.2X2)
CLAMP
CLAMP (ID:7.2X2)

09408-00033-000   0940800033000

0940800033000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Suzuki 125 DR-Z 2021
